AL21L-ZHHRCA (1983)

Toyota Tercel

Production Aug 1983 - Aug 1986
Engine 3AC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8208-8608)SED

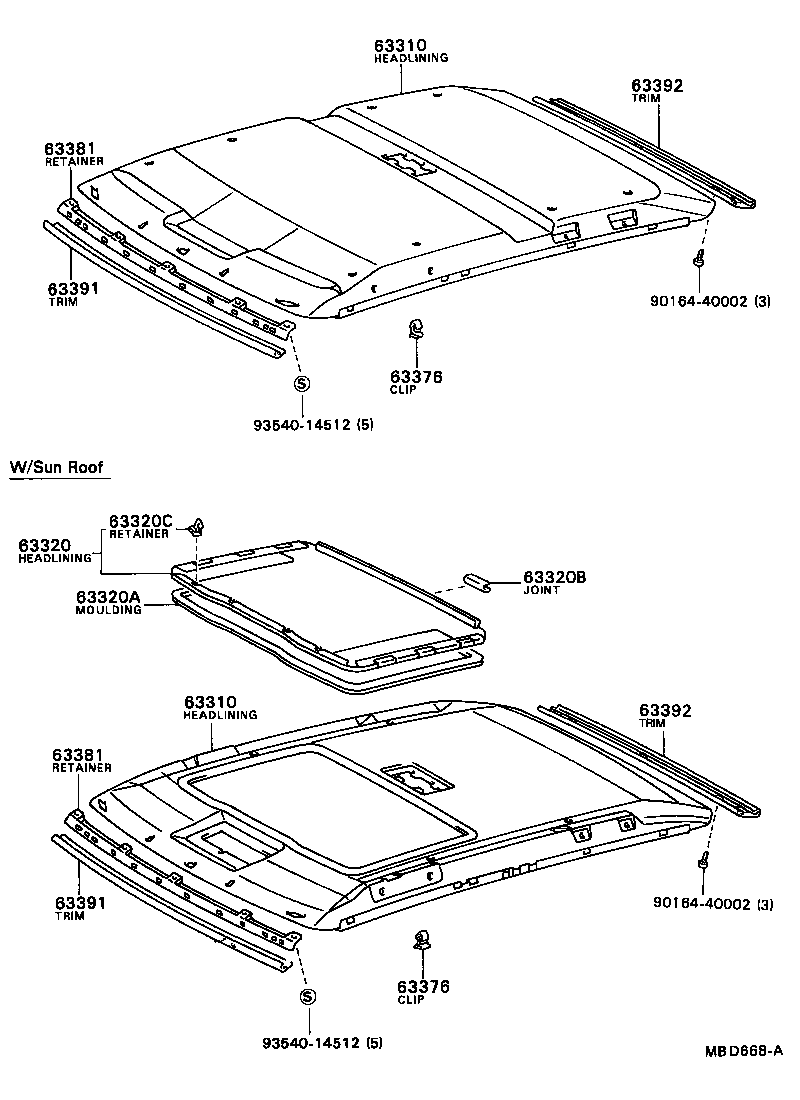

Click highlighted areas on diagram

diagram 63310 63310 63320 63320A 63320B 63320C 63376 63376 63381 63381 63391 63391 63392 63392 9016440002 9016440002 9354014512 9354014512
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-16110

AL21..5DS

W/O SUN ROOF,IVORY

 1
63310 - HEADLINING ASSY, ROOF
63310-16110

AL21..5DS

W/O SUN ROOF,IVORY

 1
63376 - CLIP, HEADLINING
63395-12020

AL2#

 6
63376 - CLIP, HEADLINING
63395-12020

AL2#

 6
63381 - RETAINER, HEADLINING, FRONT
63381-16020

AL2#

 1
63381 - RETAINER, HEADLINING, FRONT
63381-16020

AL2#

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-16020

AL2#

IVORY

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-16020

AL2#

IVORY

 1
63392 - TRIM, ROOF HEADLINING, REAR
63392-16030

AL21..SED

IVORY

 1
63392-1603018

AL21..5DS

IVORY,IVORY

 1
63392 - TRIM, ROOF HEADLINING, REAR
63392-16030

AL21..SED

IVORY

 1
63392-1603018

AL21..5DS

IVORY,IVORY

 1
Common parts
90164-40002
93540-14512
