AL21L-ZHHRCA (1983)
Toyota Tercel
(8208-8608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58801 - CONSOLE SUB-ASSY, UPPER | ||||
| 58813-1602002 |
AL21..SED DARK WINE,RED/MAROON |
1 | ||
| 58813-1602006 |
AL2# BROWN,BROWN |
1 | ||
| 58813-1606002 |
AL21..SED..(DLX,STD) DARK WINE,DARK WINE |
1 | ||
| 58813-1602003 |
AL2# GRAY,GRAY |
1 | ||
| 58813-1604005 |
AL21..STD BEIGE,BEIGE |
1 | ||
| 58813-1604002 |
AL21..STD DARK WINE,DARK WINE |
1 | ||
| 58813-1604003 |
AL21..STD GRAY,GRAY |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58841-1604002 |
AL21..3FC DARK WINE,RED/MAROON |
1 | ||
| 58841-1604006 |
AL21..3FC BROWN,BROWN |
1 | ||
| 58841-1604003 |
AL21..3FC GRAY,GRAY |
1 | ||
| 58841-1604013 |
AL21..3FC GRAY,GRAY |
1 | ||
| 58841-1604005 |
AL21..3FC BEIGE,BEIGE |
1 | ||
| 58841-1604002 |
AL21..SED..3FC DARK WINE,RED/MAROON |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58841-1604002 |
AL21..3FC DARK WINE,RED/MAROON |
1 | ||
| 58841-1604006 |
AL21..3FC BROWN,BROWN |
1 | ||
| 58841-1604003 |
AL21..3FC GRAY,GRAY |
1 | ||
| 58841-1604013 |
AL21..3FC GRAY,GRAY |
1 | ||
| 58841-1604005 |
AL21..3FC BEIGE,BEIGE |
1 | ||
| 58841-1604002 |
AL21..SED..3FC DARK WINE,RED/MAROON |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58841-1604002 |
AL21..3FC DARK WINE,RED/MAROON |
1 | ||
| 58841-1604006 |
AL21..3FC BROWN,BROWN |
1 | ||
| 58841-1604003 |
AL21..3FC GRAY,GRAY |
1 | ||
| 58841-1604013 |
AL21..3FC GRAY,GRAY |
1 | ||
| 58841-1604005 |
AL21..3FC BEIGE,BEIGE |
1 | ||
| 58841-1604002 |
AL21..SED..3FC DARK WINE,RED/MAROON |
1 | ||
| 58884 - COVER, STEREO OPENING | ||||
| 55521-16010 |
AL21..STD |
1 | ||
| 55521-16010 |
AL2# |
1 | ||
| 58885 - COVER, CONSOLE BOX OPENING | ||||
| 55522-14080 |
AL2# |
1 | ||
| 55522-32010 |
AL2# |
1 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58901-1603002 |
AL21..DLX,STD DARK WINE,RED/MAROON |
1 | ||
| 58901-1603002 |
AL21..SED..(DLX,STD) DARK WINE,RED/MAROON |
1 | ||
| 58901-1603006 |
AL21..DLX,STD BROWN,BROWN |
1 | ||
| 58901-1603005 |
AL21..DLX,STD BEIGE,BEIGE |
1 | ||
| 58901-1603013 |
AL21..DLX,STD GRAY,GRAY |
1 | ||
| 58901-1603003 |
AL21..DLX,STD GRAY,GRAY |
1 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58901-1603002 |
AL21..DLX,STD DARK WINE,RED/MAROON |
1 | ||
| 58901-1603002 |
AL21..SED..(DLX,STD) DARK WINE,RED/MAROON |
1 | ||
| 58901-1603006 |
AL21..DLX,STD BROWN,BROWN |
1 | ||
| 58901-1603005 |
AL21..DLX,STD BEIGE,BEIGE |
1 | ||
| 58901-1603013 |
AL21..DLX,STD GRAY,GRAY |
1 | ||
| 58901-1603003 |
AL21..DLX,STD GRAY,GRAY |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-16020 |
AL2# |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-16020 |
AL2# |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-16030 |
AL21..DLX,STD |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-16030 |
AL21..DLX,STD |
1 | ||
| Common parts | ||||
| 90183-05094 | ||||
| 90189-05003 | ||||
| 90189-05024 | ||||
| 93560-55014 | ||||
| 93560-55016 | ||||
| 93567-55014 | ||||
| 93568-55014 | ||||

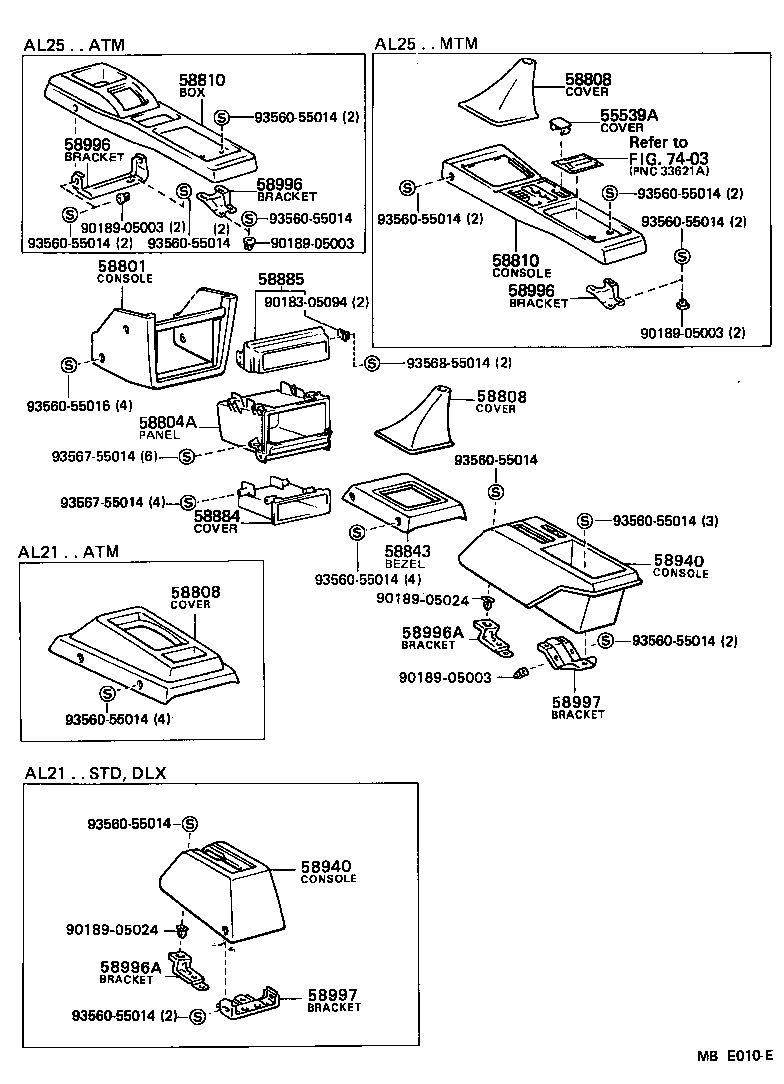

| Linked diagrams | ||||
| 7403 | ||||
