AL21L-ZHHRCA (1983)
Toyota Tercel
Production
Aug 1983
-
Aug 1986
Engine
3AC
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8208-8608)SED

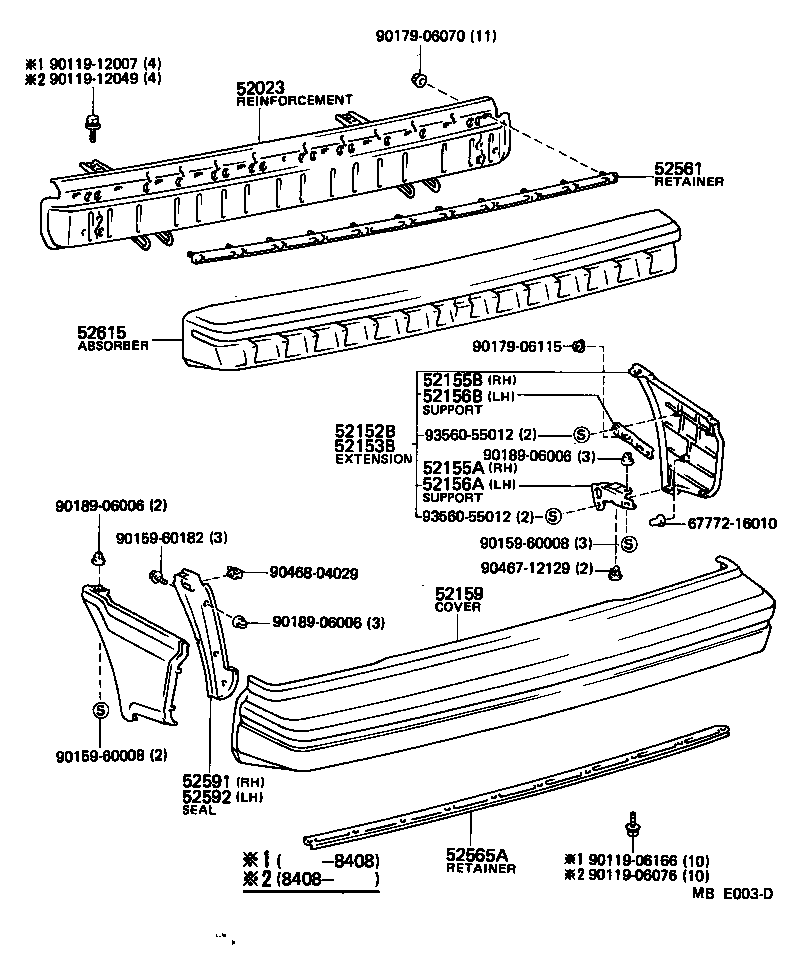

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-16030 |
AL21..SED |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52106-16030 |
AL21..SED |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52107-16030 |
AL21..SED |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-16030 |
AL21..SED |
1 | ||
| 52155B - SUPPORT, REAR BUMPER SIDE, NO.2 RH | ||||
| 52157-16010 |
AL21..SED |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-16030 |
AL21..SED |
1 | ||
| 52156B - SUPPORT, REAR BUMPER SIDE, NO.2 LH | ||||
| 52158-16010 |
AL21..SED |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-16040 |
AL21..SED |
1 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52561-16020 |
AL21..SED |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-16030 |
AL21..SED |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-16040 |
AL21..SED |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-16030 |
AL21..SED |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-16030 |
AL21..SED |
1 | ||
| Common parts | ||||
| 67772-16010 | ||||
| 90119-06076 | ||||
| 90119-06166 | ||||
| 90119-12007 | ||||
| 90119-12049 | ||||
| 90159-60008 | ||||
| 90159-60182 | ||||
| 90179-06070 | ||||
| 90179-06115 | ||||
| 90189-06006 | ||||
| 90467-12129 | ||||
| 90468-04029 | ||||
| 93560-55012 | ||||
