AL21L-ZHHRCA (1983)

Toyota Tercel

Production Aug 1983 - Aug 1986
Engine 3AC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

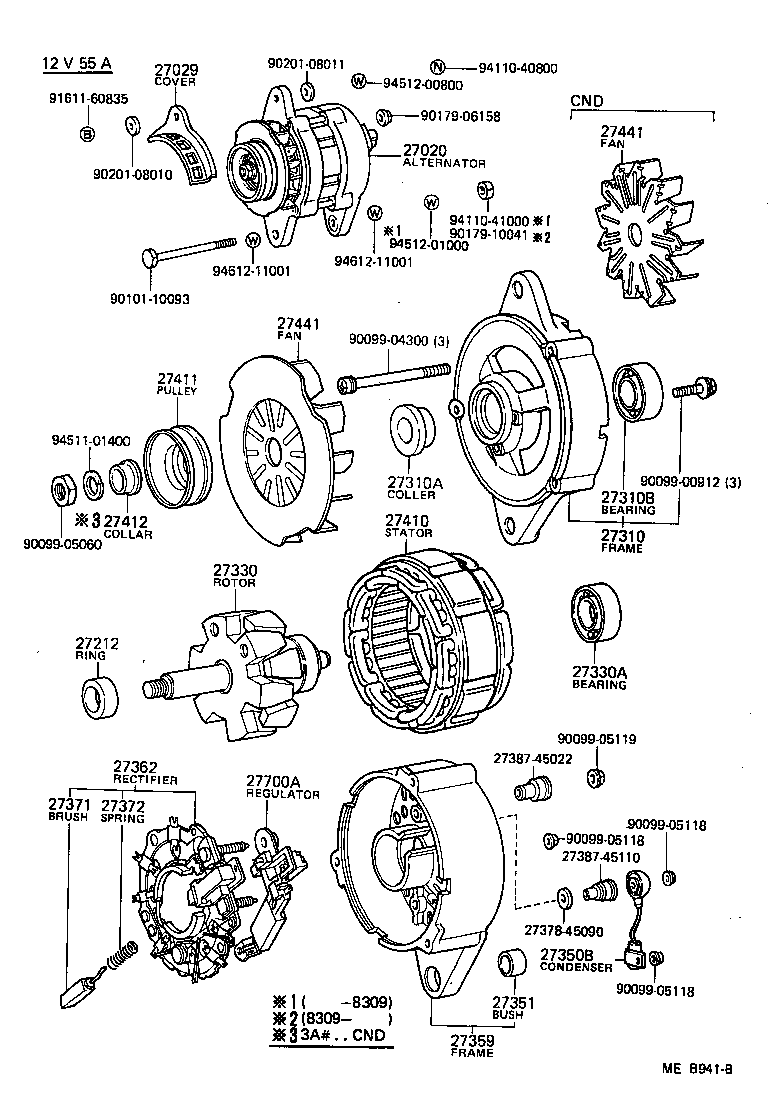

(8208-8408)

Click highlighted areas on diagram

diagram 27020 27029 27212 27310 27310A 27310B 27330 27330A 27350B 27351 27359 27362 27371 27372 2737845090 2738745022 2738745110 27410 27411 27412 27441 27441 27700A 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905119 9010110093 9017906158 9017910041 9020108010 9020108011 9161160835 9411040800 9411041000 9451101400 9451200800 9451201000 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-15011

3A..AL21;3AC..AL2#..WG..MTM..CND

12V 55A

 1
27020-15120

3AC..AL2#..USA

12V 50A,12V 50A

 1
27060-15020

3AC..AL2#..USA

12V 55A

 1
27060-15040

3A#..AL2#

12V 60A

 1
27029 - COVER, ALTERNATOR
27029-15012

3A#..AL2#

12V 50A,55A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070

3A#..AL2#

12V 50A,55A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-61070

3AC..AL21..USA;3AC..AL25..3FC;3AC..AL25..6F..USA;3AC..AL21..STD..CND

12V 50A,55A

 1
27310-15160

3A#..AL2#

12V 60A

 1
27310-61013

3A..AL21;3AC..AL25..CND

12V 55A

 1
27310-61070

3AC..AL2#..USA

12V 50A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

3A#..AL2#

12V 50A,55A

 1
27412-16030

3AC..AL2#..USA

12V 50A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10152

3A#..AL2#

12V 60A

 1
90099-10125

3A#..AL2#

12V50A,55A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-15070

3A#..AL2#

12V 55A

 1
27330-45070

3AC..AL2#..USA

12V 50A

 1
27330-63041

3A#..AL2#

12V 60A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

3A#..AL2#

12V 50A,55A

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

3A#..AL2#

12V 50A,55A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

3A#..AL2#

12V 50A,55A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-15090

3AC..AL21..USA;3AC..AL25..3FC;3AC..AL25..6F..USA;3AC..AL21..STD..CND

12V 55A

 1
27359-15120

3A..AL21;3AC..AL2#..WG..CND

12V 55A

 1
27359-15120

3AC..AL2#..USA

12V 50A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-15120

3AC..AL2#..USA

12V 50A

 1
27362-15070

3A#..AL2#

12V 55A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

3A#..AL2#

12V 50A,55A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

3A#..AL2#

12V 60A

 2
27372-31011

3A#..AL2#

12V 50A,55A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-41080

3A#..AL2#

12V 50A,55A

 1
27411 - PULLEY, ALTERNATOR
27411-15160

3A#..AL2#

12V 60A

 1
27411-26111

3A..AL21;3AC..AL2#..WG..MTM..CND

12V 55A

 1
27411-15120

3AC..AL21..USA;3AC..AL25..3FC;3AC..AL25..6F..USA;3AC..AL21..STD..CND

12V 50A,55A

 1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-44030

3A..AL21;3AC..AL2#..WG..MTM..CND

12V 55A

 1
27441 - FAN, ALTERNATOR
27441-34030

3A..AL21;3AC..AL2#..WG..MTM..CND

12V 55A

 1
27441-63030

3AC..AL21..USA;3AC..AL25..3FC;3AC..AL25..6F..USA;3AC..AL21..STD..CND

12V 50A,55A

 1
27441 - FAN, ALTERNATOR
27441-34030

3A..AL21;3AC..AL2#..WG..MTM..CND

12V 55A

 1
27441-63030

3AC..AL21..USA;3AC..AL25..3FC;3AC..AL25..6F..USA;3AC..AL21..STD..CND

12V 50A,55A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-13090

3AC..AL2#..USA

12V 50A

 1
27700-43010

3A#..AL2#

12V 55A

 1
Common parts
27378-45090
27387-45022
27387-45110
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10093
90179-06158
90179-10041
90201-08010
90201-08011
91611-60835
94110-40800
94110-41000
94511-01400
94512-00800
94512-01000
94612-11001

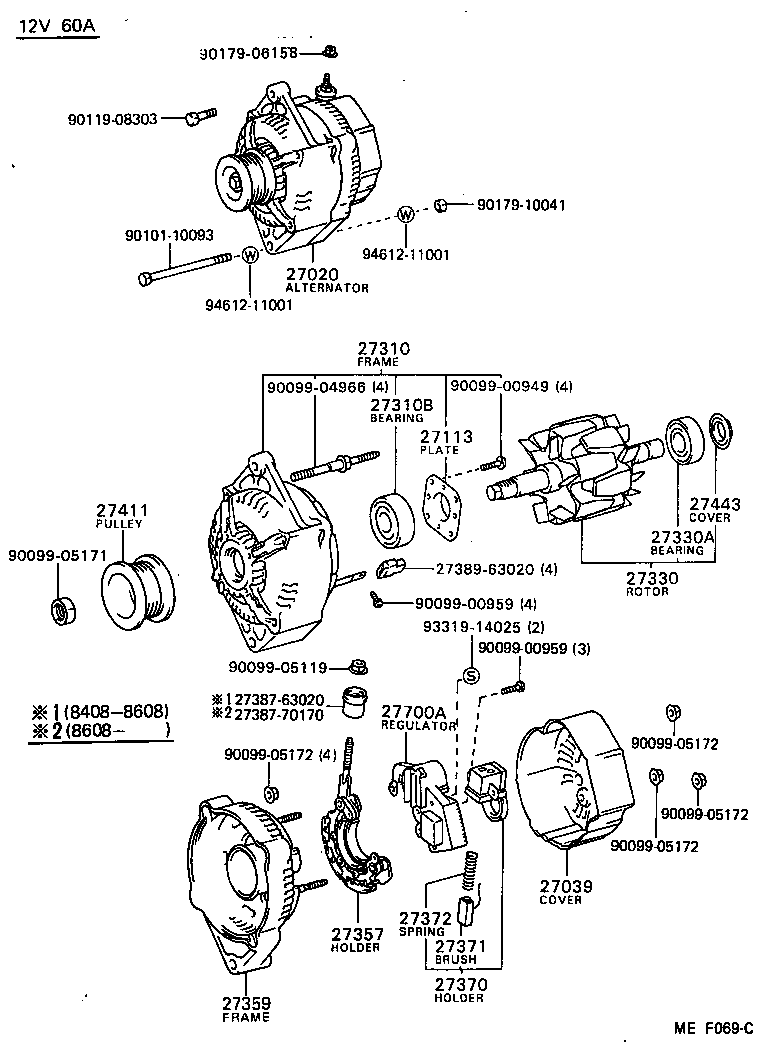

(8408- )

Click highlighted areas on diagram

diagram 27020 27039 27113 27310 27310B 27330 27330A 27357 27359 27370 27371 27372 2738763020 2738770170 2738963020 27411 27443 27700A 9009900949 9009900959 9009900959 9009904966 9009905119 9009905171 9009905172 9009905172 9009905172 9009905172 9010110093 9011908303 9017906158 9017910041 9331914025 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-15011

3A..AL21;3AC..AL2#..WG..MTM..CND

12V 55A

 1
27020-15120

3AC..AL2#..USA

12V 50A,12V 50A

 1
27060-15020

3AC..AL2#..USA

12V 55A

 1
27060-15040

3A#..AL2#

12V 60A

 1
27039 - COVER, ALTERNATOR REAR END
27039-63040

3A#..AL2#

12V 60A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-63020

3A#..AL2#

12V 60A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-61070

3AC..AL21..USA;3AC..AL25..3FC;3AC..AL25..6F..USA;3AC..AL21..STD..CND

12V 50A,55A

 1
27310-15160

3A#..AL2#

12V 60A

 1
27310-61013

3A..AL21;3AC..AL25..CND

12V 55A

 1
27310-61070

3AC..AL2#..USA

12V 50A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10152

3A#..AL2#

12V 60A

 1
90099-10125

3A#..AL2#

12V50A,55A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-15070

3A#..AL2#

12V 55A

 1
27330-45070

3AC..AL2#..USA

12V 50A

 1
27330-63041

3A#..AL2#

12V 60A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

3A#..AL2#

12V 50A,55A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-13110

3AC..AL2#..USA

12V 50A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-15090

3AC..AL21..USA;3AC..AL25..3FC;3AC..AL25..6F..USA;3AC..AL21..STD..CND

12V 55A

 1
27359-15120

3A..AL21;3AC..AL2#..WG..CND

12V 55A

 1
27359-15120

3AC..AL2#..USA

12V 50A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-63021

3A#..AL2#

12V 60A

 1
27370-72100

3A#..AL2#

12V 60A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

3A#..AL2#

12V 50A,55A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

3A#..AL2#

12V 60A

 2
27372-31011

3A#..AL2#

12V 50A,55A

 2
27411 - PULLEY, ALTERNATOR
27411-15160

3A#..AL2#

12V 60A

 1
27411-26111

3A..AL21;3AC..AL2#..WG..MTM..CND

12V 55A

 1
27411-15120

3AC..AL21..USA;3AC..AL25..3FC;3AC..AL25..6F..USA;3AC..AL21..STD..CND

12V 50A,55A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-13090

3AC..AL2#..USA

12V 50A

 1
27700-43010

3A#..AL2#

12V 55A

 1
Common parts
27387-63020
27387-70170
27389-63020
90099-00949
90099-00959
90099-04966
90099-05119
90099-05171
90099-05172
90101-10093
90119-08303
90179-06158
90179-10041
93319-14025
94612-11001
