AL21L-ZHHDCA (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3AC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )USA

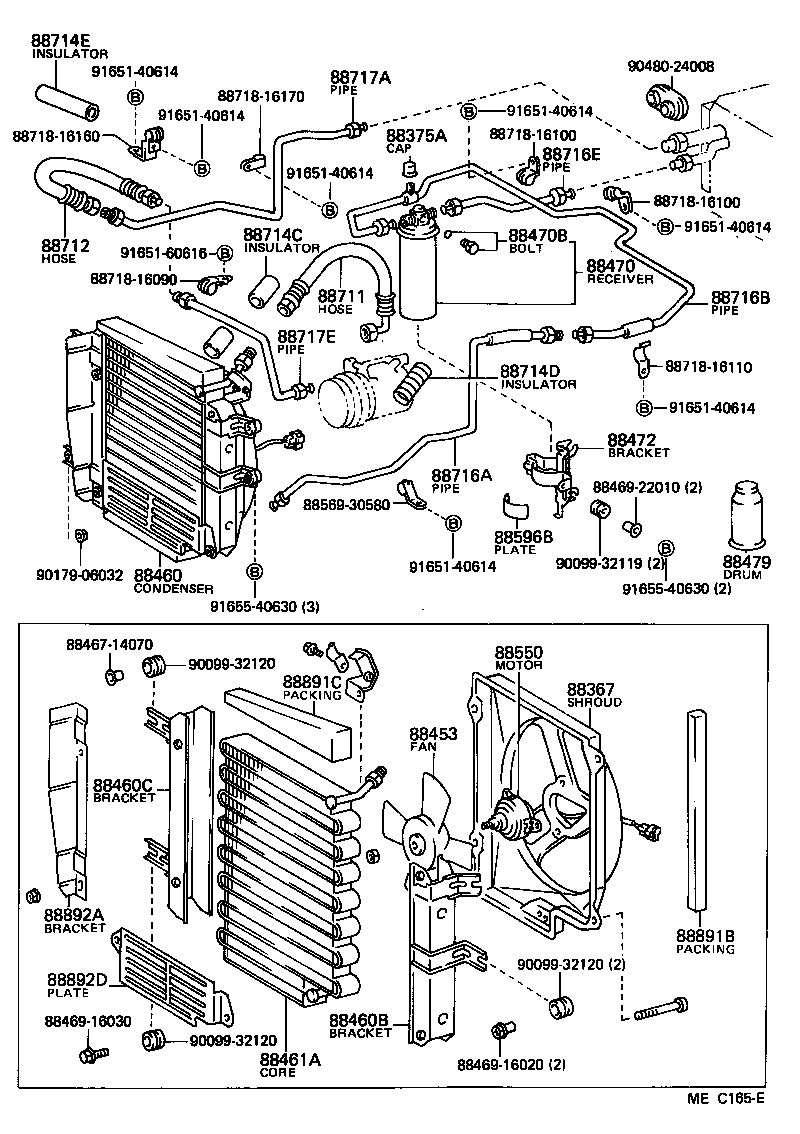

Click highlighted areas on diagram

diagram 88367 88375A 88453 88460 88460B 88460C 88461A 8846714070 8846916020 8846916030 8846922010 88470 88470B 88472 88479 88550 8856930580 88596B 88711 88712 88714C 88714D 88714E 88716A 88716B 88716E 88717A 88717E 8871816090 8871816100 8871816100 8871816110 8871816160 8871816170 88891B 88891C 88892A 88892D 9009932119 9009932120 9009932120 9009932120 9017906032 9048024008 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9165160616 9165540630 9165540630
Part # Description Qty Price
88367 - SHROUD, COOLER BLOWER FAN
88454-16040

AL2#..(3FC,5F,6F)..USA

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30270

AL2#..(3FC,5F,6F)..USA

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-16010

AL2#..(3FC,5F,6F)..USA

 1
88460 - CONDENSER ASSY, COOLER
88460-16040

AL2#..(3FC,5F,6F)..USA

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88463-16070

AL2#..(3FC,5F,6F)..USA

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88463-16060

AL2#..(3FC,5F,6F)..USA

 1
88461A - CORE, COOLER CONDENSER
88461-16050

AL2#..(3FC,5F,6F)..USA

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12070

AL2#..(3FC,5F,6F)..USA

 1
88470B - BOLT, FUSE
88475-12020

AL2#..(3FC,5F,6F)..USA

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-16030

AL2#..(3FC,5F,6F)..USA

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-16041

AL2#..(3FC,5F,6F)..USA

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-16030

AL2#..(3FC,5F,6F)..USA

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-16040

AL2#..(3FC,5F,6F)..USA

 1
88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1
88714-16010

AL2#..(3FC,5F,6F)..USA

 1
88714D - INSULATOR, COOLER REFRIGERANT HOSE, NO.2
88714-16020

AL2#..(3FC,5F,6F)..USA

 1
88714E - INSULATOR, COOLER REFRIGERANT HOSE, NO.3
88714-16030

AL2#..(3FC,5F,6F)..USA

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-16140

AL2#..(3FC,5F,6F)..USA

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-16180

AL21..3A;AL2#..WG..CND

 1
88716-16180

AL2#..(3FC,5F,6F)..USA

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-16150

AL2#..(3FC,5F,6F)..USA

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-16030

AL2#..(3FC,5F,6F)..USA

 1
88717E - PIPE, COOLER REFRIGERANT SUCTION, E
88717-16050

AL2#..(3FC,5F,6F)..USA

 1
Common parts
88467-14070
88469-16020
88469-16030
88469-22010
88569-30580
88718-16090
88718-16100
88718-16110
88718-16160
88718-16170
90099-32119
90099-32120
90179-06032
90480-24008
91651-40614
91651-60616
91655-40630
