AL21L-ZHHDCA (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3AC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )USA

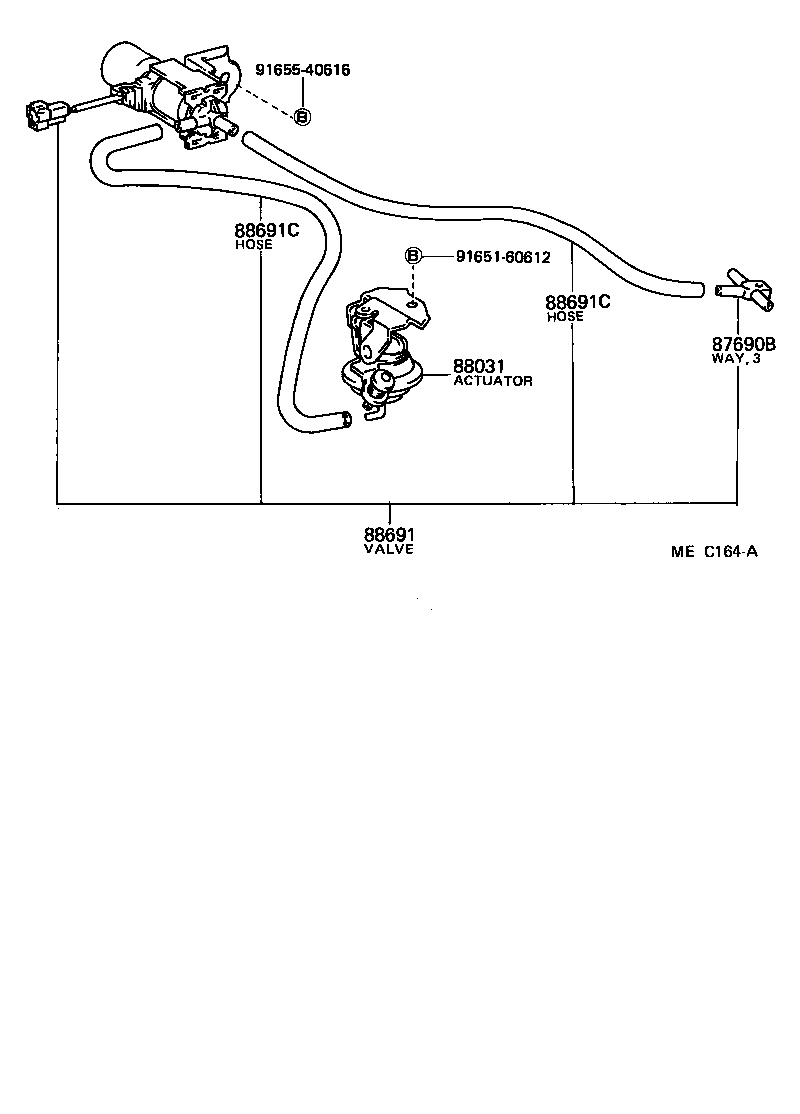

Click highlighted areas on diagram

diagram 87690B 88031 88691 88691C 88691C 9165160612 9165540616
Part # Description Qty Price
87690B - WAY, 3
90413-04005

AL2#..(3FC,5F,6F)..USA

 1
88031 - ACTUATOR SET, IDLE-UP
88031-16020

AL2#..(3FC,5F,6F)..USA

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-16040

AL2#..(3FC,5F,6F)..USA

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

AL2#..(3FC,5F,6F)..USA

*H,L=40,MARK=#0

 1
95411-19960

AL2#..(3FC,5F,6F)..USA

*H,L=360,MARK=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

AL2#..(3FC,5F,6F)..USA

*H,L=40,MARK=#0

 1
95411-19960

AL2#..(3FC,5F,6F)..USA

*H,L=360,MARK=#*

 1
Common parts
91651-60612
91655-40616
