AL21L-ZHHDCA (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3AC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )USA

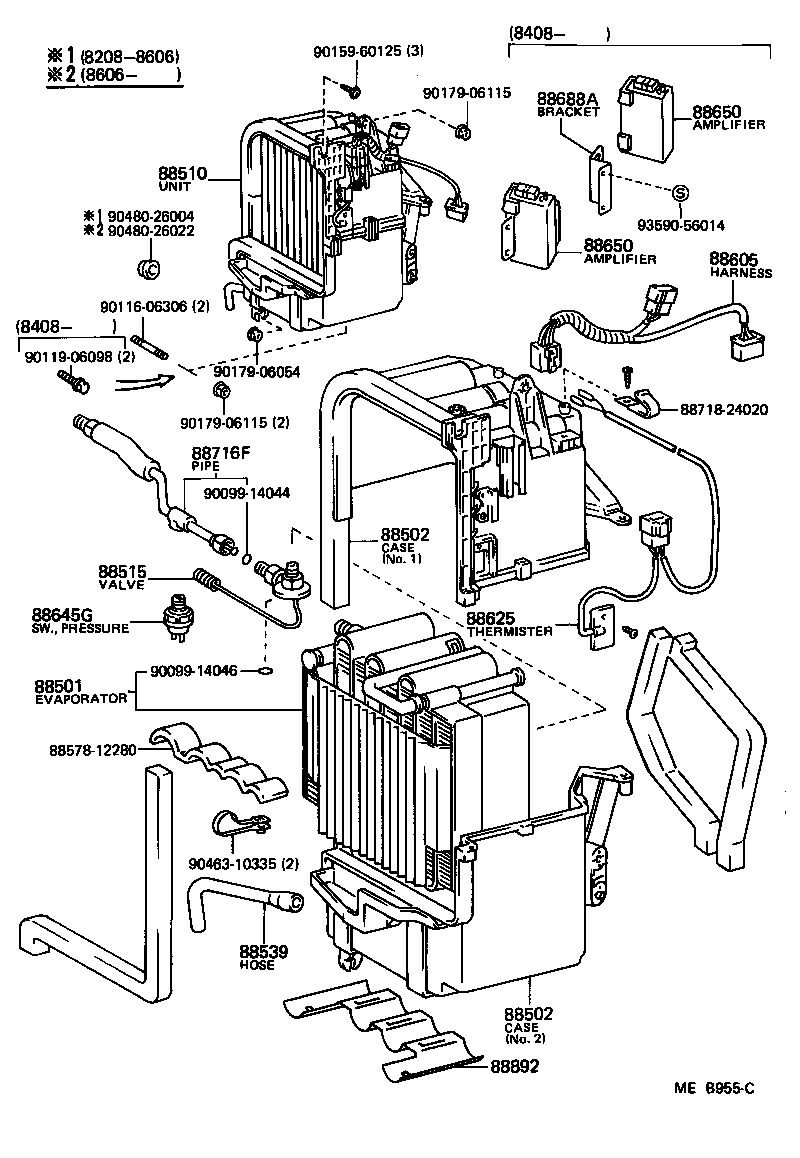

Click highlighted areas on diagram

diagram 88501 88502 88502 88510 88515 88539 8857812280 88605 88625 88645G 88650 88650 88688A 88716F 8871824020 88892 9009914044 9009914046 9011606306 9011906098 9015960125 9017906054 9017906115 9017906115 9046310335 9048026004 9048026022 9359056014
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-16050

AL2#..(3FC,5F,6F)..USA

 1
88501-16050

AL21..3A;AL2#..WG..CND

 1
88510 - UNIT ASSY, COOLER
88510-16090

AL21..3A;AL2#..WG..CND

 1
88510-16070

AL2#..(3FC,5F,6F)..USA

 1
88515 - VALVE, COOLER EXPANSION
88515-16030

AL2#..(3FC,5F,6F)..USA

 1
88515-16030

AL21..3A;AL2#..WG..CND

 1
88515-20040

AL2#..(3FC,5F,6F)..USA

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-16010

AL2#..(3FC,5F,6F)..USA

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-16130

AL2#..(3FC,5F,6F)..USA

 1
88625 - THERMISTOR, COOLER, NO.1
88625-16060

AL2#..(3FC,5F,6F)..USA

 1
88625-16060

AL21..3A;AL2#..WG..CND

 1
88645G - SWITCH, PRESSURE
88645-12020

AL21..3A;AL2#..WG..CND

 1
88645-30250

AL2#..(3FC,5F,6F)..USA

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16060

AL2#..(3FC,5F,6F)..USA

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16060

AL2#..(3FC,5F,6F)..USA

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-16080

AL2#..(3FC,5F,6F)..USA

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-16170

AL2#..(3FC,5F,6F)..USA

 1
Common parts
88578-12280
88718-24020
90099-14044
90099-14046
90116-06306
90119-06098
90159-60125
90179-06054
90179-06115
90463-10335
90480-26004
90480-26022
93590-56014
