AL21L-ZGKRSK (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3A
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

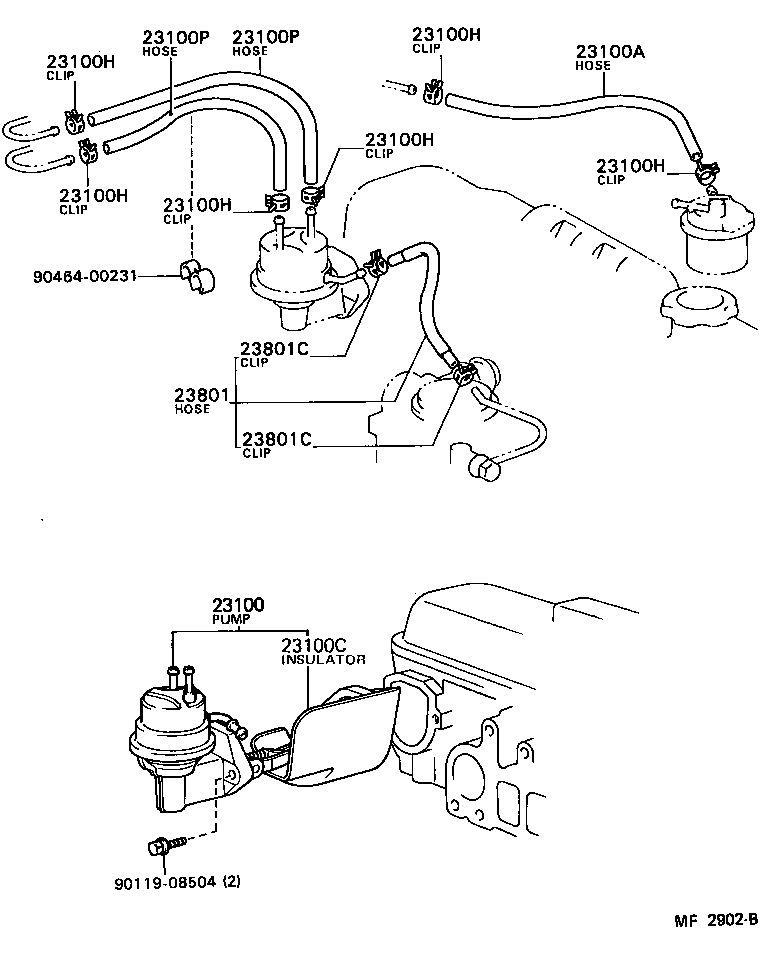

Click highlighted areas on diagram

diagram 23100 23100A 23100C 23100H 23100H 23100H 23100H 23100H 23100H 23100P 23100P 23801 23801C 23801C 9011908504 9046400231
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-19165

3A#..AL2#

 1
23100A - HOSE, FUEL
95332-06030

3A#..AL2#

*H,L=240

 1
23100C - INSULATOR, FUEL PUMP
23915-15010

3A#..AL2#

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30400

3A#..AL2#

RETURN

 2
96132-30600

3A#..AL2#

MAIN

 4
23100H - CLIP(FOR FUEL HOSE)
96132-30400

3A#..AL2#

RETURN

 2
96132-30600

3A#..AL2#

MAIN

 4
23100H - CLIP(FOR FUEL HOSE)
96132-30400

3A#..AL2#

RETURN

 2
96132-30600

3A#..AL2#

MAIN

 4
23100H - CLIP(FOR FUEL HOSE)
96132-30400

3A#..AL2#

RETURN

 2
96132-30600

3A#..AL2#

MAIN

 4
23100H - CLIP(FOR FUEL HOSE)
96132-30400

3A#..AL2#

RETURN

 2
96132-30600

3A#..AL2#

MAIN

 4
23100H - CLIP(FOR FUEL HOSE)
96132-30400

3A#..AL2#

RETURN

 2
96132-30600

3A#..AL2#

MAIN

 4
23100P - HOSE(FOR FUEL PUMP TO FUEL TUBE)
95332-06030

3A#..AL2#

*H,L=280,MAIN

 1
95332-04030

3A#..AL2#

*H,L=260,RETURN

 1
23100P - HOSE(FOR FUEL PUMP TO FUEL TUBE)
95332-06030

3A#..AL2#

*H,L=280,MAIN

 1
95332-04030

3A#..AL2#

*H,L=260,RETURN

 1
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23271-15010

3A#..AL2#

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

3A#..AL2#

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

3A#..AL2#

 2
Common parts
90119-08504
90464-00231
