AL21L-ZGKRCK (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3AC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8311- )CND

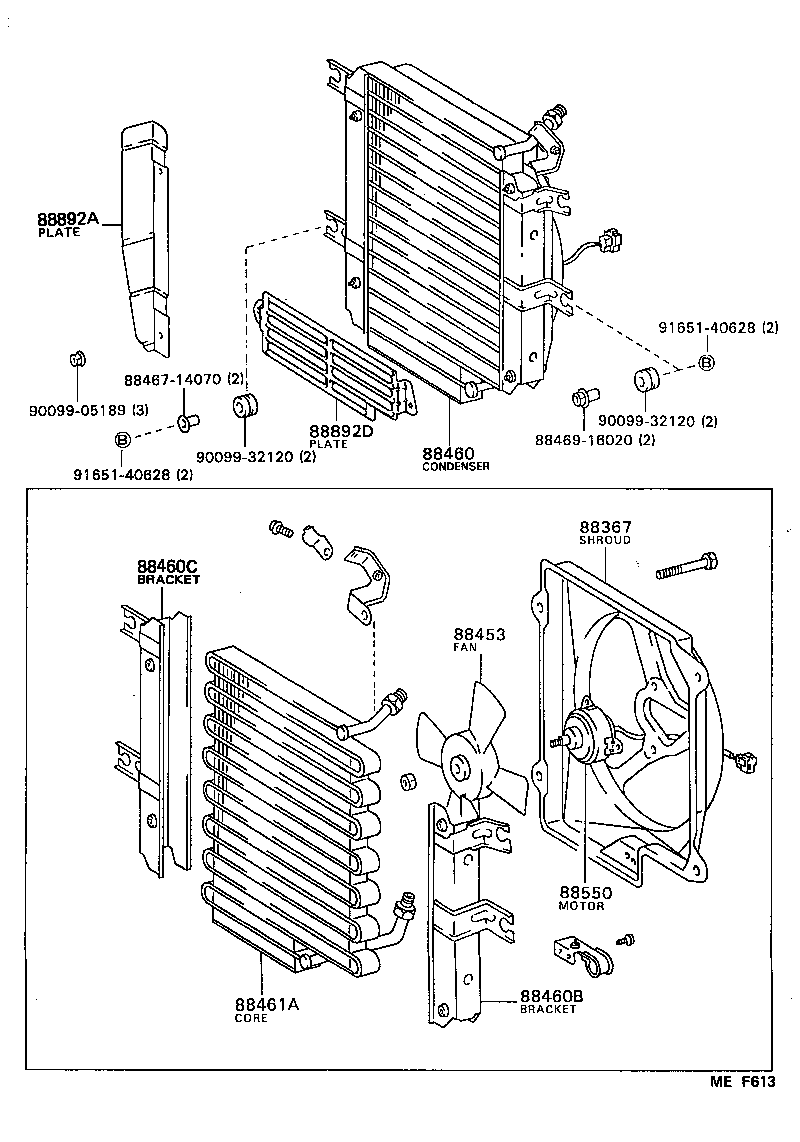

Click highlighted areas on diagram

diagram 88367 88453 88460 88460B 88460C 88461A 8846714070 8846916020 88550 88892A 88892D 9009905189 9009932120 9009932120 9165140628 9165140628
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-16070

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88892A - BRACKET, COOLER EVAPORATOR MOUNTING
88892-16040

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88892D - PLATE, CONDENSER, NO.2
88892-16050

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
Common parts
88467-14070
88469-16020
90099-05189
90099-32120
91651-40628

(8311- )CND

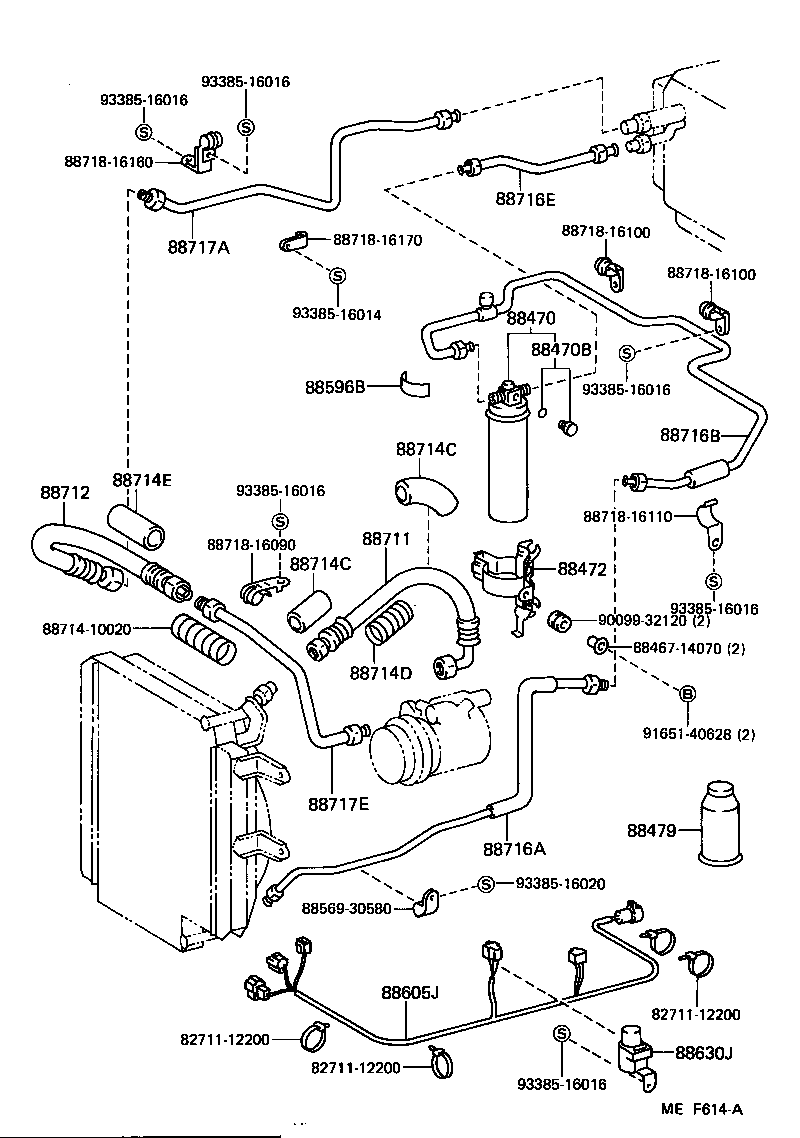

Click highlighted areas on diagram

diagram 8271112200 8271112200 8271112200 8846714070 88470 88470B 88472 88479 8856930580 88596B 88605J 88630J 88711 88712 8871410020 88714C 88714C 88714D 88714E 88716A 88716B 88716E 88717A 88717E 8871816090 8871816100 8871816100 8871816110 8871816160 8871816170 9009932120 9165140628 9338516014 9338516016 9338516016 9338516016 9338516016 9338516016 9338516016 9338516020
Part # Description Qty Price
88470 - RECEIVER & DRYER ASSY, COOLER
88470-14010

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88470B - BOLT, FUSE
88475-12020

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-16030

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

400G

 1
88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-16160

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88630J - RELAY ASSY (FOR CONDENSER MOTOR)
88630-10020

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-16030

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-16060

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1
88714-87004

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 2
88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1
88714-87004

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 2
88714D - INSULATOR, COOLER REFRIGERANT HOSE, NO.2
88714-16020

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88714E - INSULATOR, COOLER REFRIGERANT HOSE, NO.3
88714-90A01

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-16140

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-16180

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88716-16180

AL21..3A;AL2#..WG..CND

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-16150

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-16060

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88717E - PIPE, COOLER REFRIGERANT SUCTION, E
88717-16050

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
Common parts
82711-12200
88467-14070
88569-30580
88714-10020
88718-16090
88718-16100
88718-16110
88718-16160
88718-16170
90099-32120
91651-40628
93385-16014
93385-16016
93385-16020
