AL21L-ZGKRCK (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3AC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8311- )CND

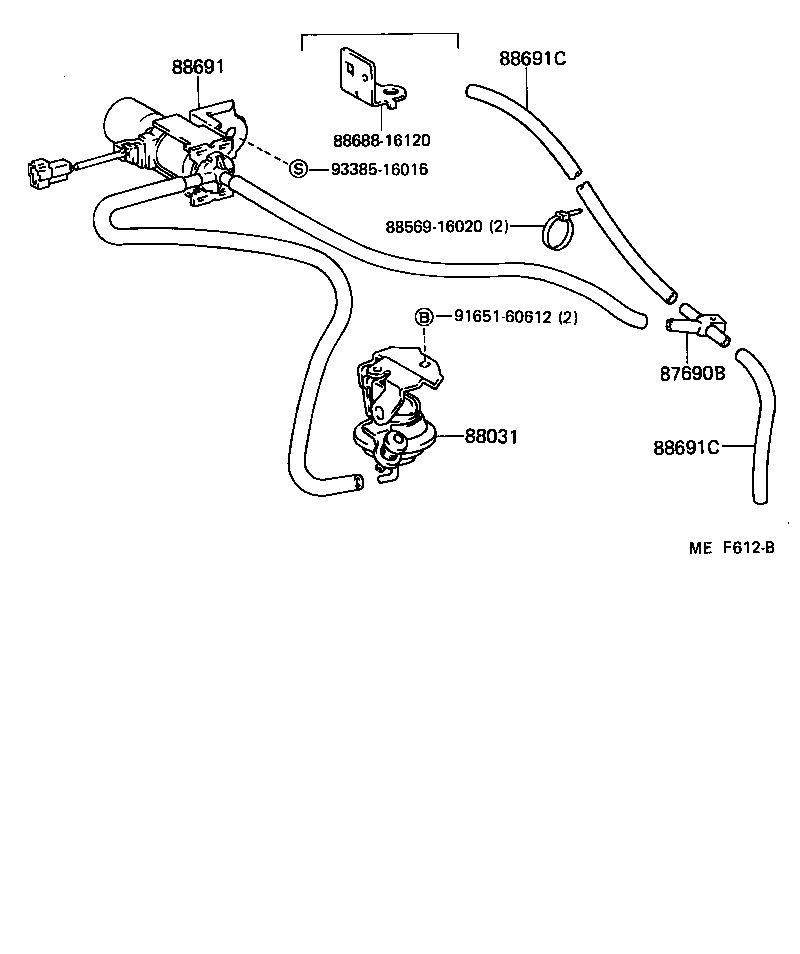

Click highlighted areas on diagram

diagram 87690B 88031 8856916020 8868816120 88691 88691C 88691C 9165160612 9338516016
Part # Description Qty Price
87690B - WAY, 3
90413-04005

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88031 - ACTUATOR SET, IDLE-UP
88031-16020

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-16070

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19960

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

*H,L=450,MARK=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19960

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

*H,L=450,MARK=#*

 1
Common parts
88569-16020
88688-16120
91651-60612
93385-16016
