AL21L-ZGKRCK (1982)
Toyota Tercel
Production
Aug 1982
-
Aug 1986
Engine
3AC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

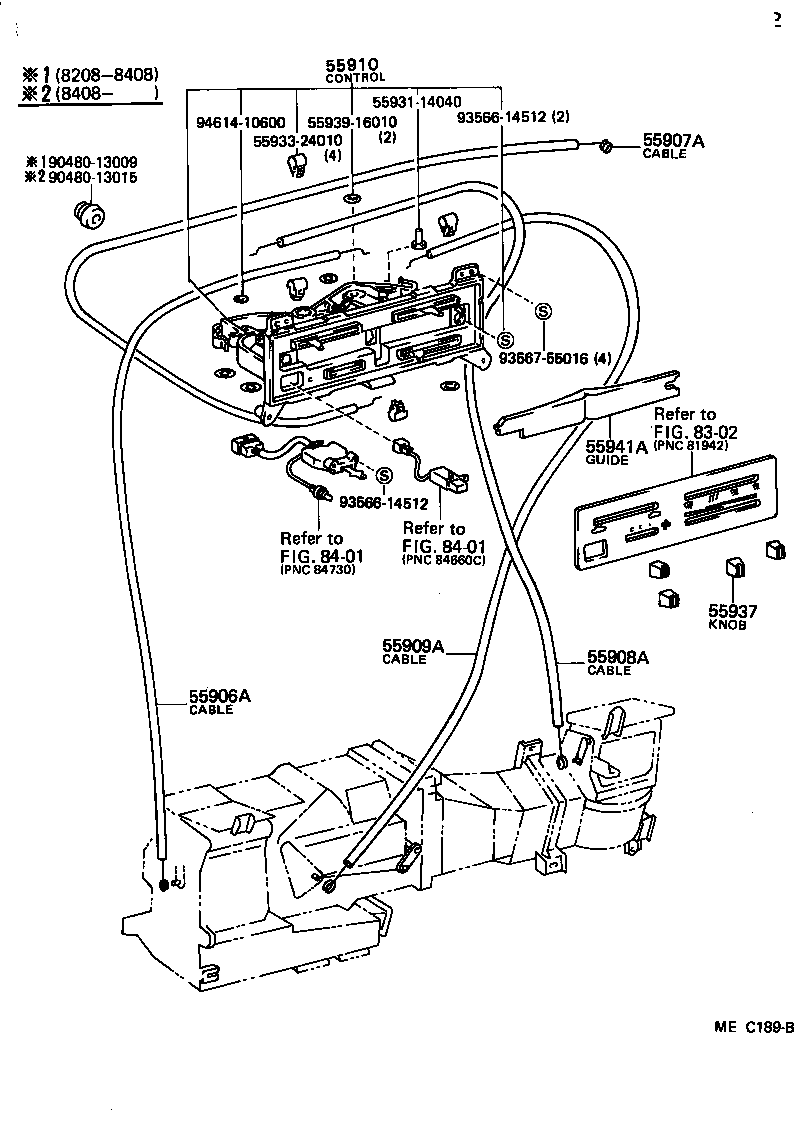

(8208- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-16040 |
AL2# |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-16070 |
AL2# |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-16040 |
AL2# |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-16030 |
AL2# |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-16050 |
AL2# |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-12060 |
AL2# |
4 | ||
| 55905-89110 |
AL2# |
4 | ||
| 55941A - GUIDE, HEATER CONTROL | ||||
| 55941-16030 |
AL2# |
1 | ||
| Common parts | ||||
| 55931-14040 | ||||
| 55933-24010 | ||||
| 55939-16010 | ||||
| 90480-13009 | ||||
| 90480-13015 | ||||
| 93566-14512 | ||||
| 93567-55016 | ||||
| 94614-10600 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||

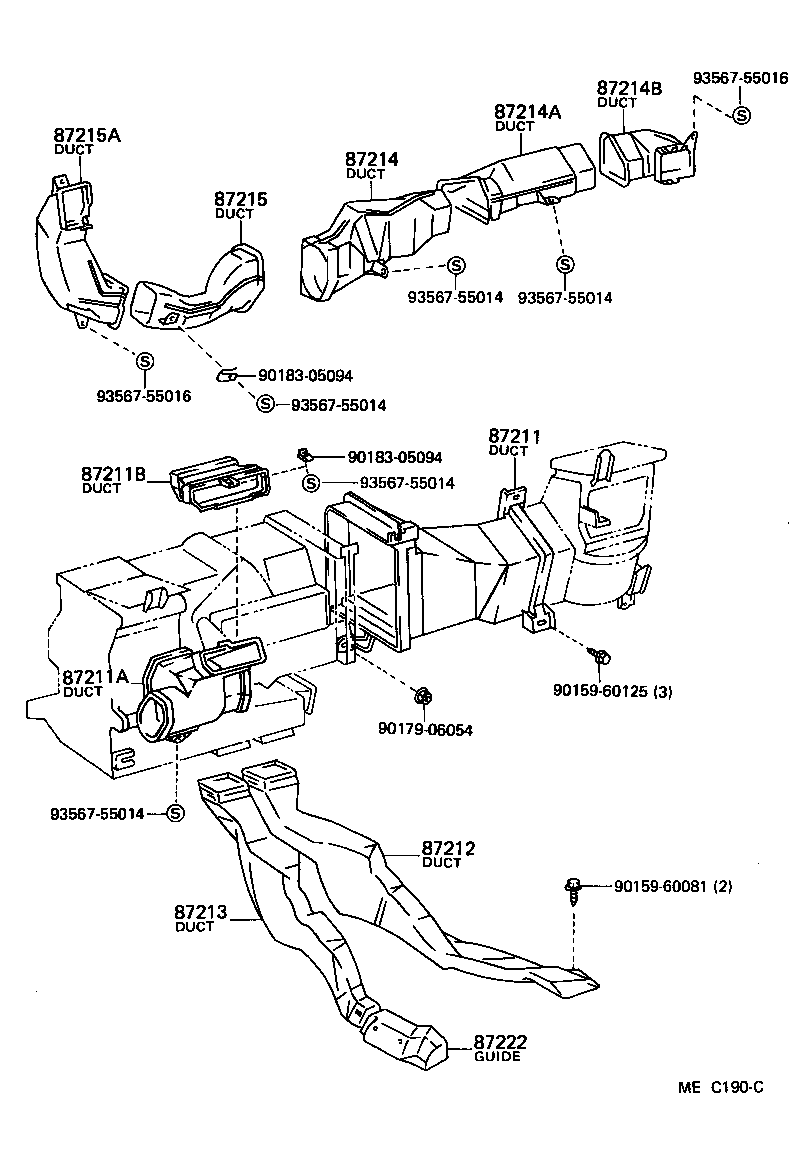

(8208- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87211 - DUCT, AIR, NO.1 | ||||
| 87201-16060 |
AL2# |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87201-16050 |
AL2# |
1 | ||
| 87201-16051 |
AL2# |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 55086-16040 |
AL2# |
1 | ||
| 55086-16050 |
AL2# |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87202-16030 |
AL21..3A;AL21..DLX..CND..3AC |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87203-16030 |
AL21..3A;AL21..DLX..CND..3AC |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55087-16040 |
AL2# |
1 | ||
| 87214A - DUCT, AIR, SIDE NO.2 RH | ||||
| 55088-16020 |
AL2# |
1 | ||
| 87214B - DUCT, AIR, SIDE NO.3 RH | ||||
| 55089-16020 |
AL2# |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55085-16050 |
AL2# |
1 | ||
| 87215A - DUCT, AIR, SIDE NO.2 LH | ||||
| 55084-16020 |
AL2# |
1 | ||
| 87222 - GUIDE, AIR DUCT, REAR | ||||
| 87216-16010 |
AL21..3A;AL21..DLX..CND..3AC |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90159-60125 | ||||
| 90179-06054 | ||||
| 90183-05094 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
