AL21L-ZGKRCK (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3AC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8311- )CND

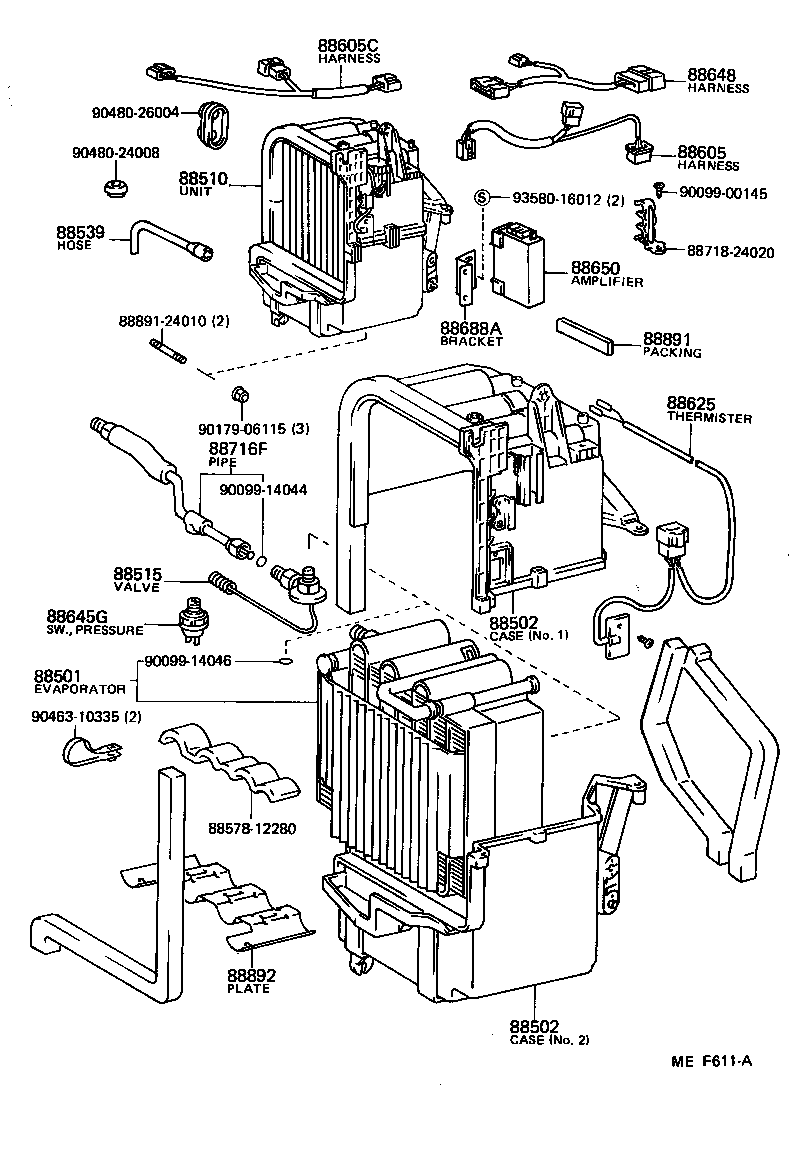

Click highlighted areas on diagram

diagram 88501 88502 88502 88510 88515 88539 8857812280 88605 88605C 88625 88645G 88648 88650 88688A 88716F 8871824020 88891 8889124010 88892 9009900145 9009914044 9009914046 9017906115 9046310335 9048024008 9048026004 9358016012
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-16050

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88501-16050

AL21..3A;AL2#..WG..CND

 1
88510 - UNIT ASSY, COOLER
88510-16090

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88510-16090

AL21..3A;AL2#..WG..CND

 1
88515 - VALVE, COOLER EXPANSION
88515-16030

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88515-16030

AL21..3A;AL2#..WG..CND

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-16020

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-16130

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2
88605-16150

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88625 - THERMISTOR, COOLER, NO.1
88625-16060

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88625-16060

AL21..3A;AL2#..WG..CND

 1
88645G - SWITCH, PRESSURE
88645-12020

AL21..3A;AL2#..WG..CND

 1
88645-12020

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88648 - WIRING, COOLER, NO.1
88605-16170

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16030

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-16080

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-16170

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88891 - PACKING (FOR COOLER)
88892-16100

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
88892 - BRACKET, COOLER EVAPORATOR MOUNTING
88892-12150

AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND

 1
Common parts
88578-12280
88718-24020
88891-24010
90099-00145
90099-14044
90099-14046
90179-06115
90463-10335
90480-24008
90480-26004
93580-16012
