AL21L-ZGKRCK (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3AC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

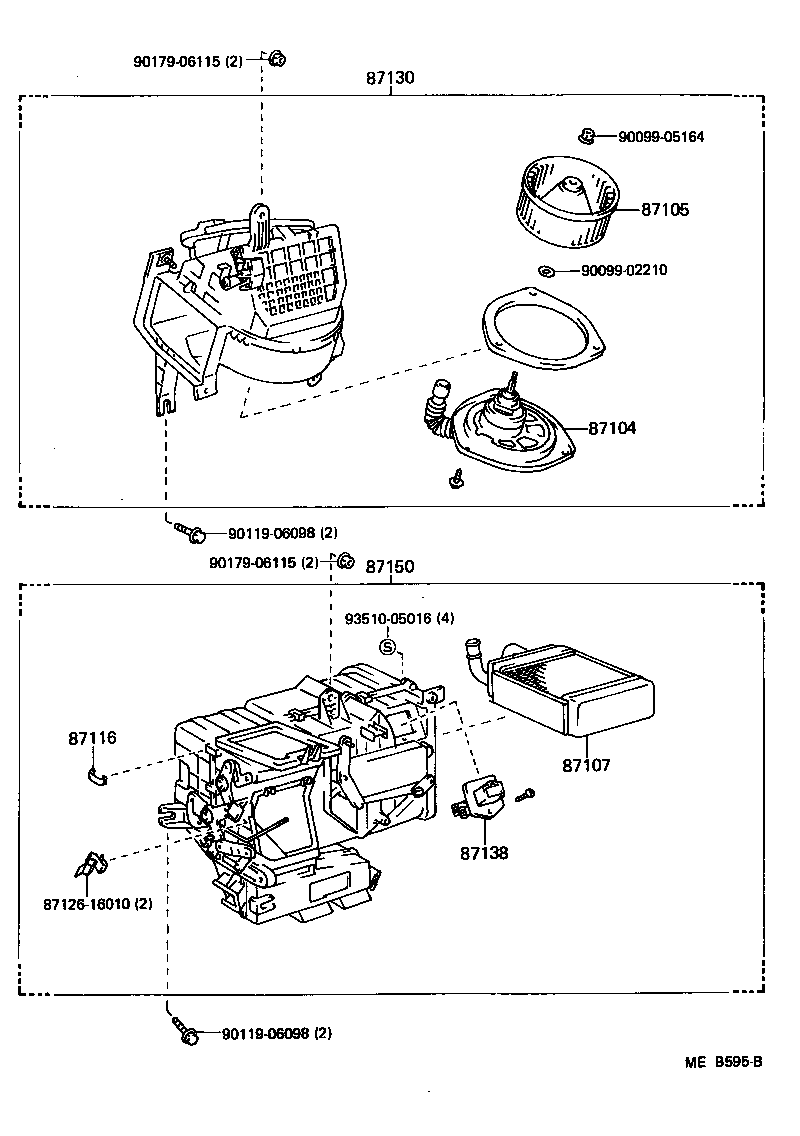

Click highlighted areas on diagram

diagram 87104 87105 87107 87116 8712616010 87130 87138 87150 9009902210 9009905164 9011906098 9011906098 9017906115 9017906115 9351005016
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-16110

AL2#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14020

AL2#

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-16090

AL2#..CND

 1
87116 - SPRING, HEATER CASE FASTENING
87116-14010

AL2#

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-16040

AL2#

 1
87138 - RESISTOR, HEATER BLOWER
87138-16100

AL2#

 1
87150 - RADIATOR ASSY, HEATER
87150-16110

AL2#..CND

 1
87150-16150

AL21..STD..CND..3AC

W/O RR DUCT

 1
87150-16160

AL21..3A;AL2#..WG..CND

W/RR DUCT

 1
Common parts
87126-16010
90099-02210
90099-05164
90119-06098
90179-06115
93510-05016

(8208-8608)

Click highlighted areas on diagram

diagram 87116 8712616010 87138 88910 9011906098 9011906098 9017906115 9017906115 9351005016
Part # Description Qty Price
87116 - SPRING, HEATER CASE FASTENING
87116-14010

AL2#

 1
87138 - RESISTOR, HEATER BLOWER
87138-16100

AL2#

 1
Common parts
87126-16010
90119-06098
90179-06115
93510-05016
