AL21L-ZGKRCK (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3AC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

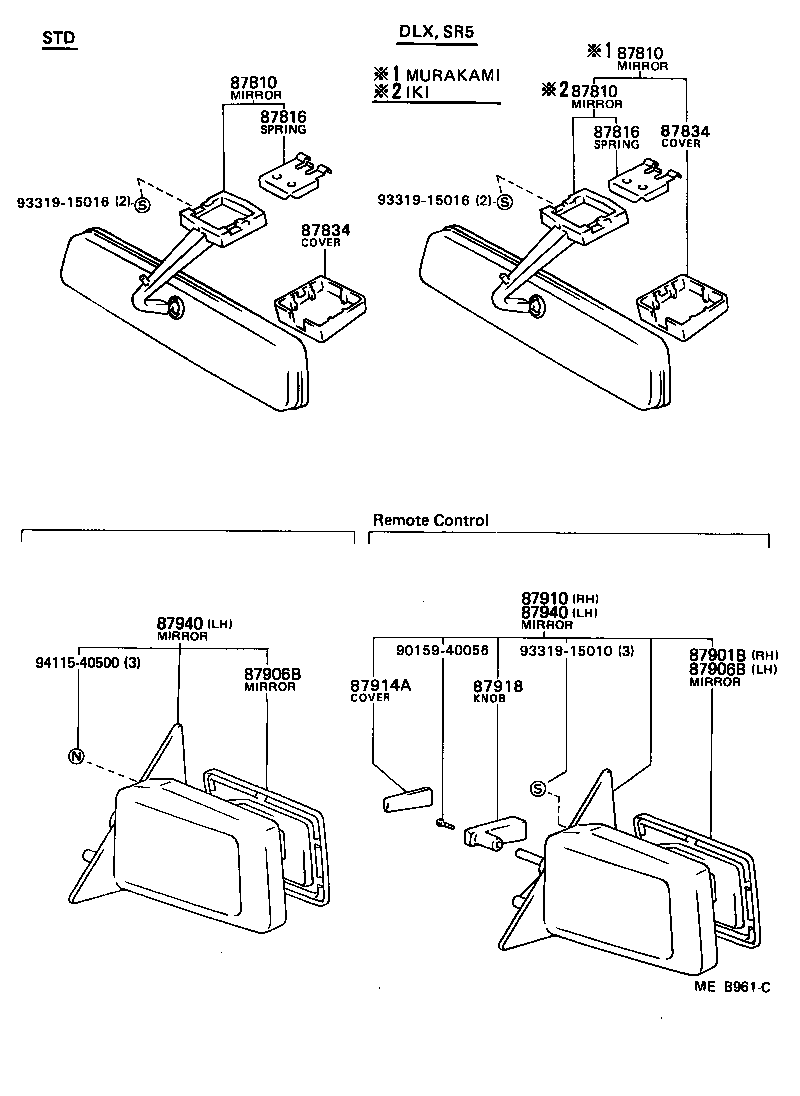

Click highlighted areas on diagram

diagram 87810 87810 87810 87816 87816 87834 87834 87901B 87906B 87906B 87910 87914A 87918 87940 87940 9015940056 9331915010 9331915016 9331915016 9411540500
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-2017018

AL21..STD

IVORY,IVORY

 1
87810-2017018

AL21..3DS..STD

IVORY,IVORY

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-2017018

AL21..STD

IVORY,IVORY

 1
87810-2017018

AL21..3DS..STD

IVORY,IVORY

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-2017018

AL21..STD

IVORY,IVORY

 1
87810-2017018

AL21..3DS..STD

IVORY,IVORY

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-2008018

AL21..3DS

IVORY,IVORY

 1
87834-2008018

AL2#

IVORY,IVORY

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-2008018

AL21..3DS

IVORY,IVORY

 1
87834-2008018

AL2#

IVORY,IVORY

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87909-16320

AL21..SED..(DLX,STD)

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87909-16320

AL21..SED..(DLX,STD)

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-16130

AL21..3DS..(DLX,STD)

 1
87940-16131

AL21..3DS..(DLX,STD)

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-16130

AL21..3DS..(DLX,STD)

 1
87940-16131

AL21..3DS..(DLX,STD)

 1
Common parts
90159-40056
93319-15010
93319-15016
94115-40500
