AL21L-ZGKRCK (1982)
Toyota Tercel
(8208- )

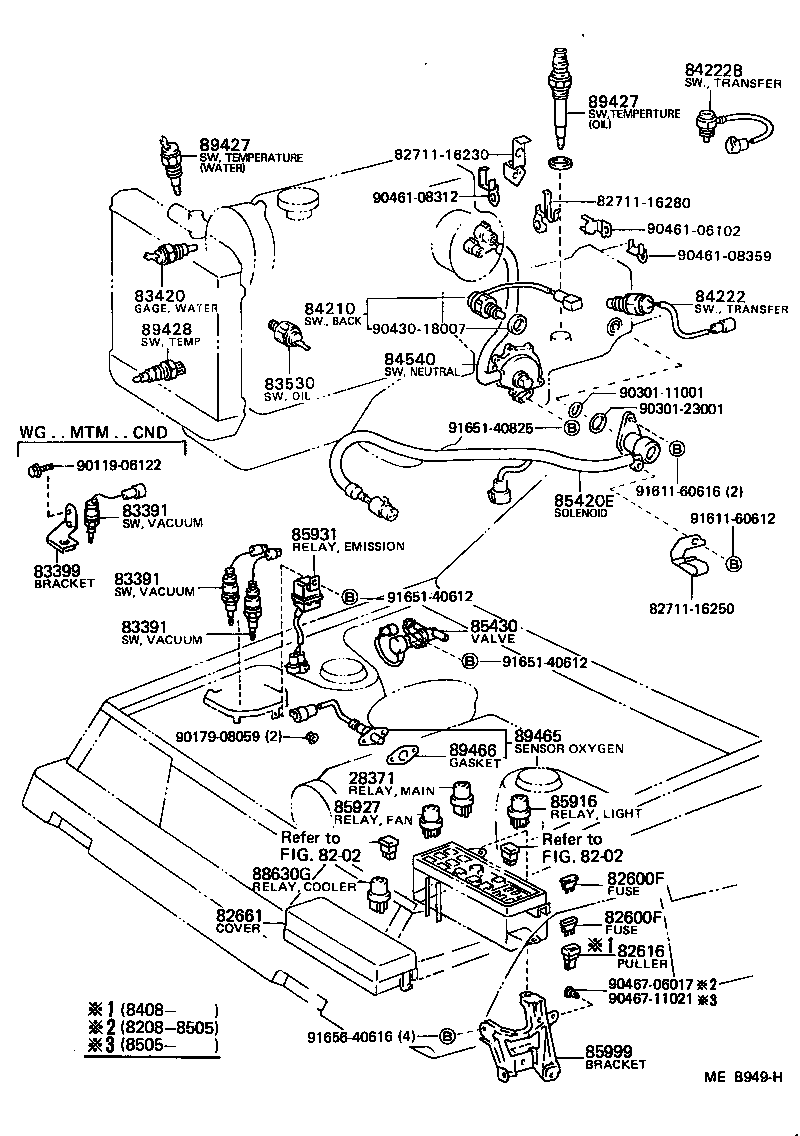

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02002 |
3A#..AL2# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
AL2# 7.5A,7.5A |
7 | ||
| 90982-09002 |
AL2# 10A,10A |
1 | ||
| 90982-09004 |
AL2# 20A,YELLOW,20A |
2 | ||
| 90982-09003 |
AL2# 15A,15A |
9 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
AL2# 7.5A,7.5A |
7 | ||
| 90982-09002 |
AL2# 10A,10A |
1 | ||
| 90982-09004 |
AL2# 20A,YELLOW,20A |
2 | ||
| 90982-09003 |
AL2# 15A,15A |
9 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AL2# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-16070 |
AL2# |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-16060 |
AL21..USA;AL25..3FC;AL25..6F..USA;AL21..(3FC,4F)..CND..3AC MARK=200B |
1 | ||
| 83391-16040 |
AL21..USA;AL25..3FC;AL25..6F..USA;AL21..(3FC,4F)..CND..3AC MARK=80M |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-16060 |
AL21..USA;AL25..3FC;AL25..6F..USA;AL21..(3FC,4F)..CND..3AC MARK=200B |
1 | ||
| 83391-16040 |
AL21..USA;AL25..3FC;AL25..6F..USA;AL21..(3FC,4F)..CND..3AC MARK=80M |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-16060 |
AL21..USA;AL25..3FC;AL25..6F..USA;AL21..(3FC,4F)..CND..3AC MARK=200B |
1 | ||
| 83391-16040 |
AL21..USA;AL25..3FC;AL25..6F..USA;AL21..(3FC,4F)..CND..3AC MARK=80M |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16010 |
AL2# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-12040 |
AL2# |
1 | ||
| 83530-14040 |
AL2# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-16021 |
AL2#..MTM |
1 | ||
| 85430 - VALVE, OUTER VENT CONTROL | ||||
| 85430-16011 |
AL2#..3FC..CND;AL21..STD..CND..3AC |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
AL2# |
2 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
AL2# |
1 | ||
| 85931 - RELAY, EMISSION CONTROL | ||||
| 85931-16010 |
AL21..USA;AL25..3FC;AL25..6F..USA;AL21..(3FC,4F)..CND..3AC |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-16030 |
AL2# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-01003 |
AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89427-16020 |
AL21..USA;AL25..3FC;AL25..6F..USA;AL21..(3FC,4F)..CND..3AC |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89427-16020 |
AL21..USA;AL25..3FC;AL25..6F..USA;AL21..(3FC,4F)..CND..3AC |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-15030 |
AL2# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29075 |
AL21..USA;AL25..3FC;AL25..6F..USA;AL21..(3FC,4F)..CND..3AC |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
AL21..USA;AL25..3FC;AL25..6F..USA;AL21..(3FC,4F)..CND..3AC |
1 | ||
| Common parts | ||||
| 82711-16230 | ||||
| 82711-16250 | ||||
| 82711-16280 | ||||
| 90119-06122 | ||||
| 90179-08059 | ||||
| 90301-11001 | ||||
| 90301-23001 | ||||
| 90430-18007 | ||||
| 90461-06102 | ||||
| 90461-08312 | ||||
| 90461-08359 | ||||
| 90467-06017 | ||||
| 90467-11021 | ||||
| 91611-60612 | ||||
| 91611-60616 | ||||
| 91651-40612 | ||||
| 91651-40825 | ||||
| 91656-40616 | ||||
| Linked diagrams | ||||
| 8202 | ||||
(8208- )

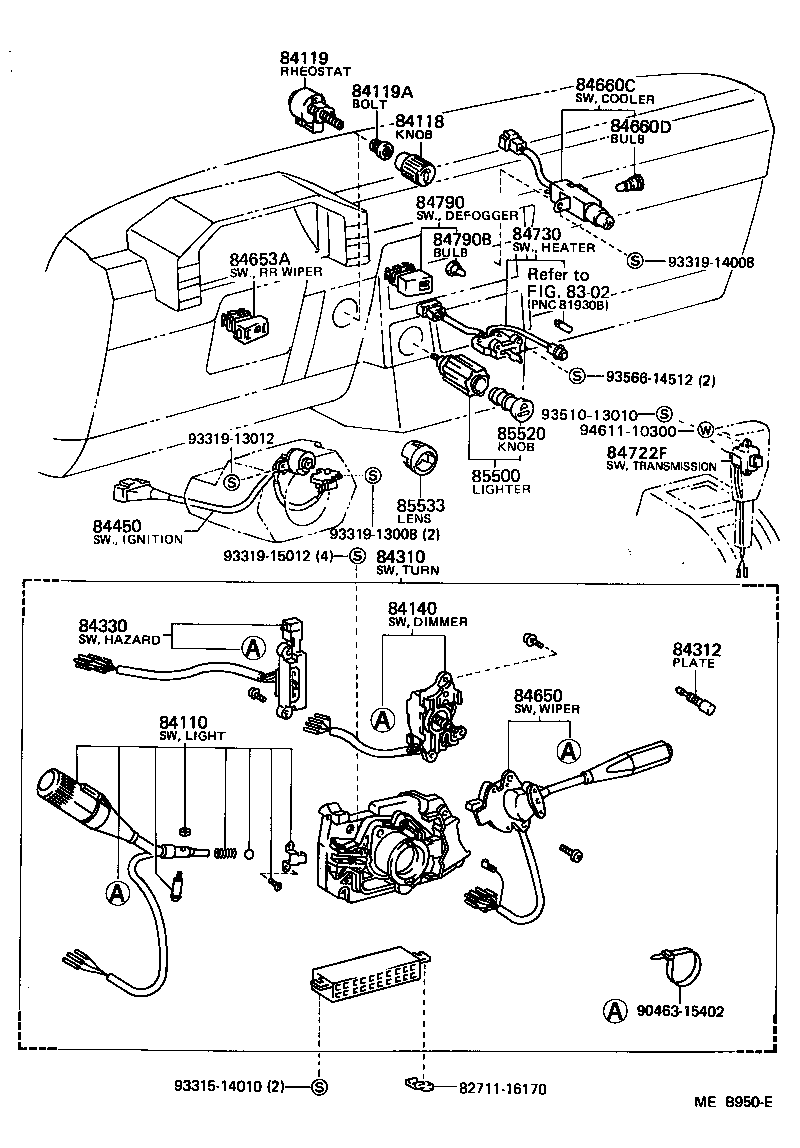

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19395 |
AL2#..DLX,STD |
1 | ||
| 84112-19375 |
AL2#..DLX,STD MATSUSHITA |
1 | ||
| 84112-19395 |
AL2#..DLX,STD TOKAIRIKA |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-12030 |
AL2# |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-16030 |
AL2# |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90984-01007 |
AL2# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19165 |
AL2#..DLX,STD MATSUSHITA |
1 | ||
| 84140-19185 |
AL2#..DLX,STD |
1 | ||
| 84140-19185 |
AL2#..DLX,STD TOKAIRIKA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-16110 |
AL2#..DLX,STD |
1 | ||
| 84310-16060 |
AL2#..DLX,STD MATSUSHITA |
1 | ||
| 84310-16060 |
AL2#..DLX,STD TOKAIRIKA |
1 | ||
| 84310-16110 |
AL2#..DLX,STD TOKAIRIKA |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32010 |
AL2#..DLX,STD |
1 | ||
| 84312-32010 |
AL2#..DLX,STD TOKAIRIKA |
1 | ||
| 84312-32020 |
AL2#..DLX,STD MATSUSHITA |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-19155 |
AL2#..DLX,STD TOKAIRIKA |
1 | ||
| 84332-19155 |
AL2#..DLX,STD |
1 | ||
| 84332-19135 |
AL2#..DLX,STD MATSUSHITA |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-16040 |
AL2# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-19665 |
AL2#..DLX,STD TOKAIRIKA |
1 | ||
| 84652-19665 |
AL2#..DLX,STD |
1 | ||
| 84652-19615 |
AL2#..DLX,STD MATSUSHITA |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-16020 |
AL2# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-16030 |
AL2# |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-16040 |
AL2# |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10110 |
AL2# 12V 1.12W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-16060 |
AL2# |
1 | ||
| Common parts | ||||
| 82711-16170 | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-13012 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||
| 93510-13010 | ||||
| 93566-14512 | ||||
| 94611-10300 | ||||
| Linked diagrams | ||||
| 8302 | ||||
(8208- )

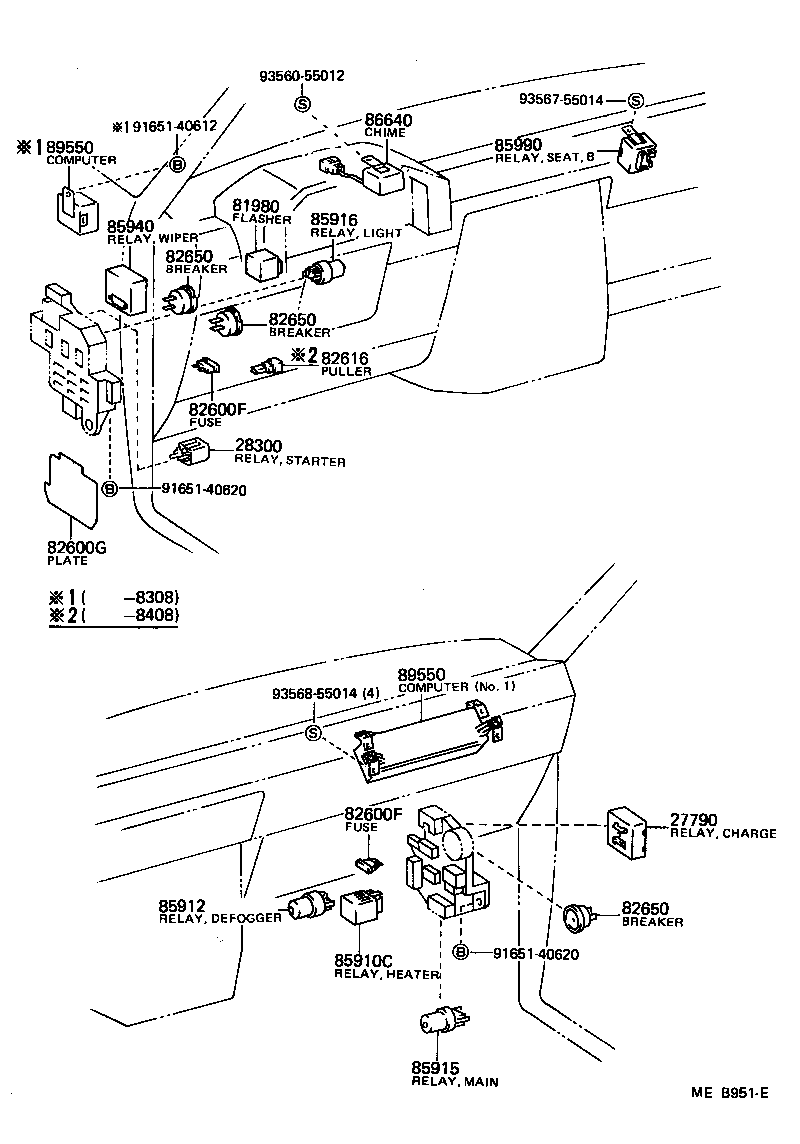

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27790 - RELAY ASSY, CHARGE LAMP | ||||
| 27790-35020 |
3A#..AL2#..CND |
1 | ||
| 27790-13010 |
3A#..AL2# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22070 |
AL2# L=30X40 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
AL2# 7.5A,7.5A |
7 | ||
| 90982-09002 |
AL2# 10A,10A |
1 | ||
| 90982-09004 |
AL2# 20A,YELLOW,20A |
2 | ||
| 90982-09003 |
AL2# 15A,15A |
9 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
AL2# 7.5A,7.5A |
7 | ||
| 90982-09002 |
AL2# 10A,10A |
1 | ||
| 90982-09004 |
AL2# 20A,YELLOW,20A |
2 | ||
| 90982-09003 |
AL2# 15A,15A |
9 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AL2# |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AL2#..CND 30A,MATSUSHITA,W/SUN ROOF |
1 | ||
| 82650-20011 |
AL2# 30A,MATSUSHITA,*DEF,*HEA |
2 | ||
| 82650-20011 |
AL2# 30A,TOKAIRIKA,*DEF,*HEA |
2 | ||
| 82650-32020 |
AL2# 30A,TOKAIRIKA,*DEF,*HEA |
2 | ||
| 82650-32020 |
AL2#..CND 30A,TOKAIRIKA,W/SUN ROOF |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AL2#..CND 30A,MATSUSHITA,W/SUN ROOF |
1 | ||
| 82650-20011 |
AL2# 30A,MATSUSHITA,*DEF,*HEA |
2 | ||
| 82650-20011 |
AL2# 30A,TOKAIRIKA,*DEF,*HEA |
2 | ||
| 82650-32020 |
AL2# 30A,TOKAIRIKA,*DEF,*HEA |
2 | ||
| 82650-32020 |
AL2#..CND 30A,TOKAIRIKA,W/SUN ROOF |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AL2#..CND 30A,MATSUSHITA,W/SUN ROOF |
1 | ||
| 82650-20011 |
AL2# 30A,MATSUSHITA,*DEF,*HEA |
2 | ||
| 82650-20011 |
AL2# 30A,TOKAIRIKA,*DEF,*HEA |
2 | ||
| 82650-32020 |
AL2# 30A,TOKAIRIKA,*DEF,*HEA |
2 | ||
| 82650-32020 |
AL2#..CND 30A,TOKAIRIKA,W/SUN ROOF |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
AL2# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
AL2# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
AL2# |
2 | ||
| 85990 - RELAY OR COMPUTER ASSY, SEAT BELT WARNING | ||||
| 85991-16010 |
AL2# |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-16060 |
AL21..3AC;AL25..USA NO.1 |
1 | ||
| 89550-27040 |
AL21..3AC;AL25..USA NO.2 |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-16060 |
AL21..3AC;AL25..USA NO.1 |
1 | ||
| 89550-27040 |
AL21..3AC;AL25..USA NO.2 |
1 | ||
| Common parts | ||||
| 91651-40612 | ||||
| 91651-40620 | ||||
| 93560-55012 | ||||
| 93567-55014 | ||||
| 93568-55014 | ||||
(8208- )

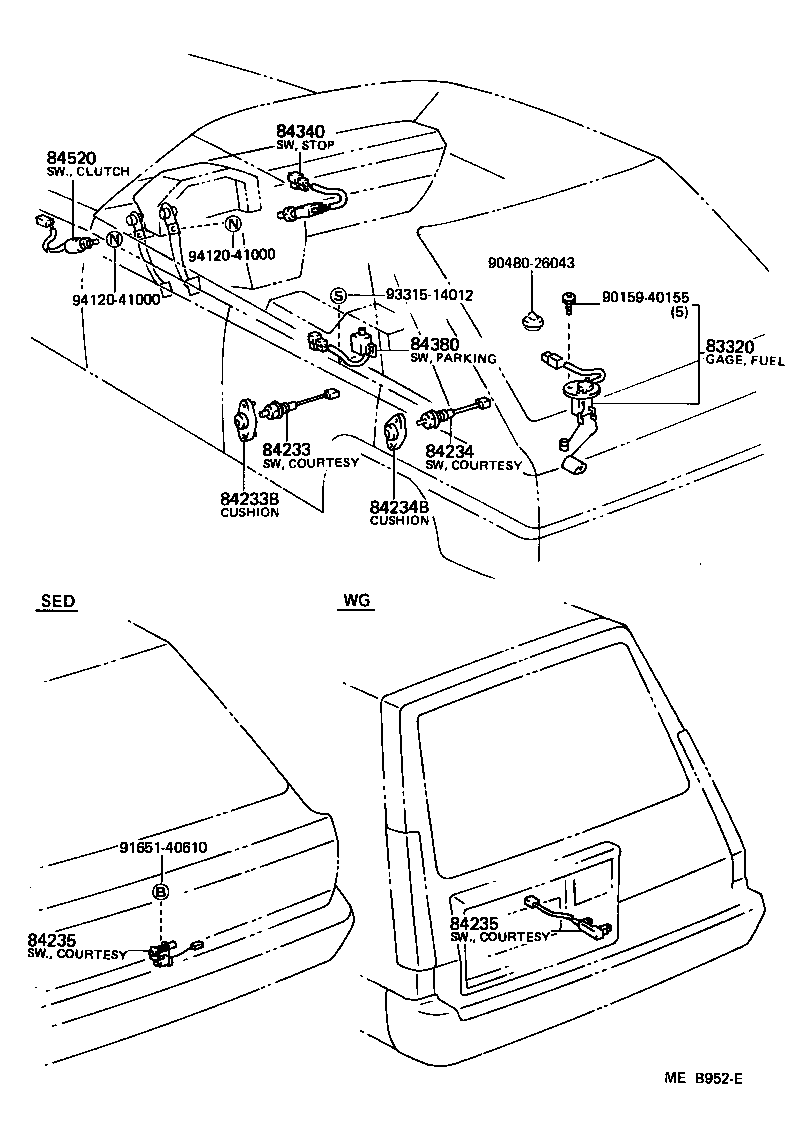

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19695 |
AL21..STD |
1 | ||
| 83320-19615 |
AL21..STD |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20080 |
AL2# |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-22010 |
AL2# |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-16021 |
AL21..SED |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-16021 |
AL21..SED |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32010 |
AL2# |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84550-24010 |
AL2# |
1 | ||
| Common parts | ||||
| 90159-40155 | ||||
| 90480-26043 | ||||
| 91651-40610 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
