AL21L-ZGKRCK (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3AC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

Click highlighted areas on diagram

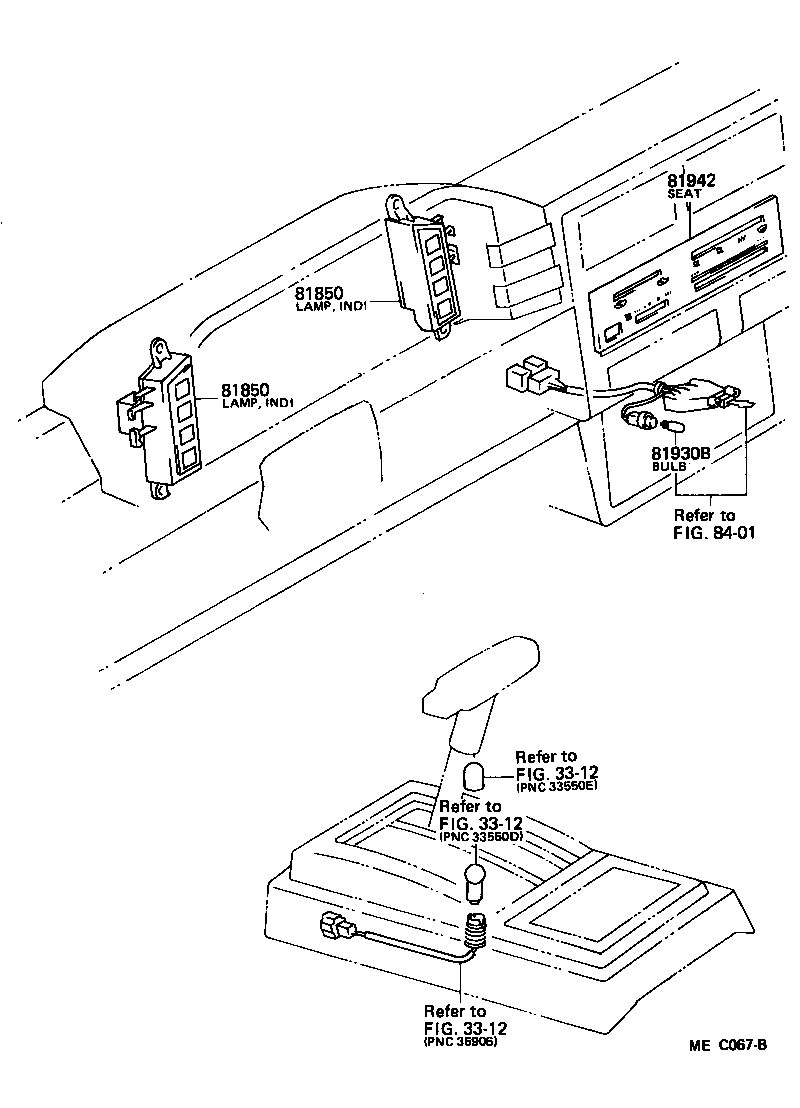

diagram 3312 3312 3312 81850 81850 81930B 81942 8401
Part # Description Qty Price
81850 - LAMP ASSY, INDICATOR
81850-16060

AL21;AL25..SR5

RH

 1
81850-16050

AL21

LH

 1
81850 - LAMP ASSY, INDICATOR
81850-16060

AL21;AL25..SR5

RH

 1
81850-16050

AL21

LH

 1
81930B - BULB, HEATER CONTROL INDICATOR LAMP
90981-11014

AL2#

14V 1.4W,12V 1.4W

 1
81942 - SHEET, HEATER CONTROL NAME
81942-16030

AL2#

 1
81942-16060

AL21..4F..3AC

W/COOLER

 1
81942-16031

AL2#

 1
Linked diagrams
3312
8401
