AL21L-ZGKRCK (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3AC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )DLX,STD

Click highlighted areas on diagram

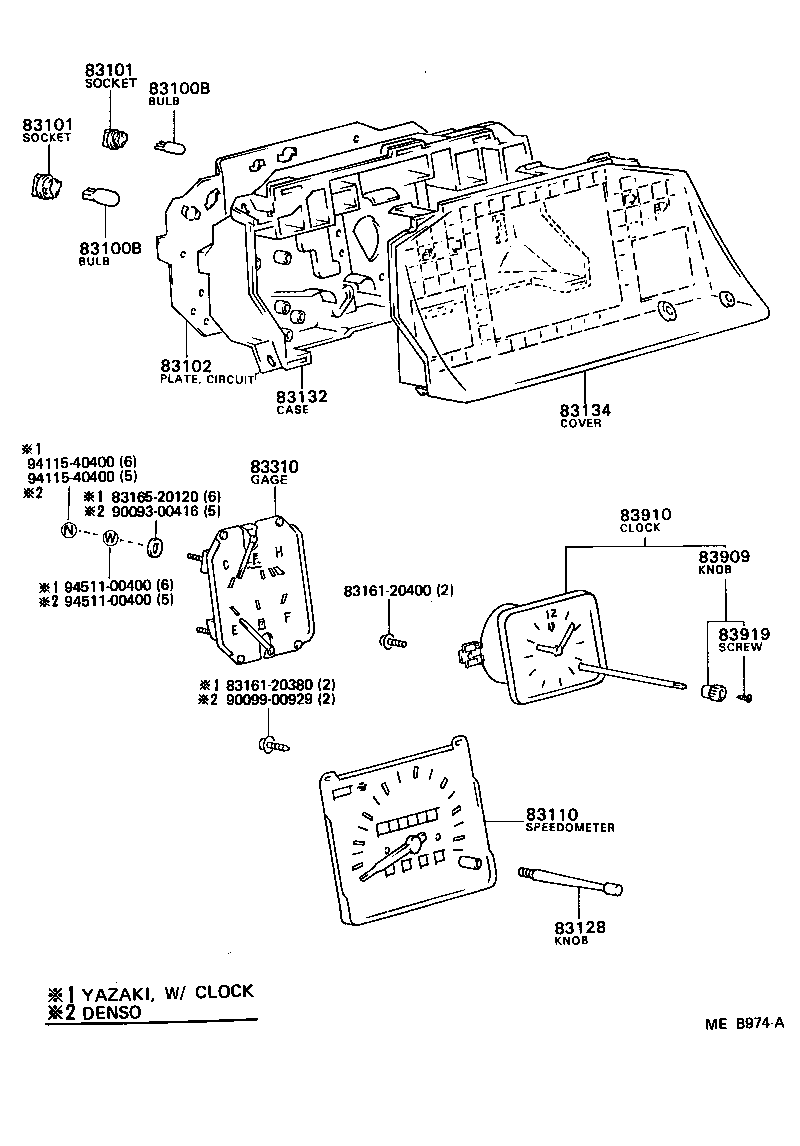

diagram 83100B 83100B 83101 83101 83102 83110 83128 83132 83134 8316120380 8316120400 8316520120 83310 83909 83910 83919 9009300416 9009900929 9411540400 9411540400 9451100400 9451100400
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
83109-28010

AL2#

12V3.4W W(GREEN CAP),12V 3.4W,W/GREEN CAP

 3
99132-12034

AL2#

12V 3.4W,12V 3.4W

 7
83100B - BULB, COMBINATION METER, NO.1
83109-28010

AL2#

12V3.4W W(GREEN CAP),12V 3.4W,W/GREEN CAP

 3
99132-12034

AL2#

12V 3.4W,12V 3.4W

 7
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

AL2#

12V 3.4W,DENSO

 7
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

AL2#

12V 3.4W,DENSO

 7
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-16730

AL2#..DLX,STD

DENSO

 1
83110 - SPEEDOMETER ASSY
83110-16360

AL2#..(DLX,STD)..CND

 1
83110-16750

AL2#..(DLX,STD)..CND

 1
83128 - KNOB, TRIP COUNTER
83128-16110

AL2#..DLX,STD

DENSO

 1
83132 - CASE, COMBINATION METER
83132-16570

AL2#..DLX,STD

DENSO

 1
83134 - COVER, COMBINATION METER, NO.1
83133-16530

AL2#..DLX,STD

DENSO

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-16410

AL2#..(DLX,STD)..CND

 1
Common parts
83161-20380
83161-20400
83165-20120
90093-00416
90099-00929
94115-40400
94511-00400

(8208- )

Click highlighted areas on diagram

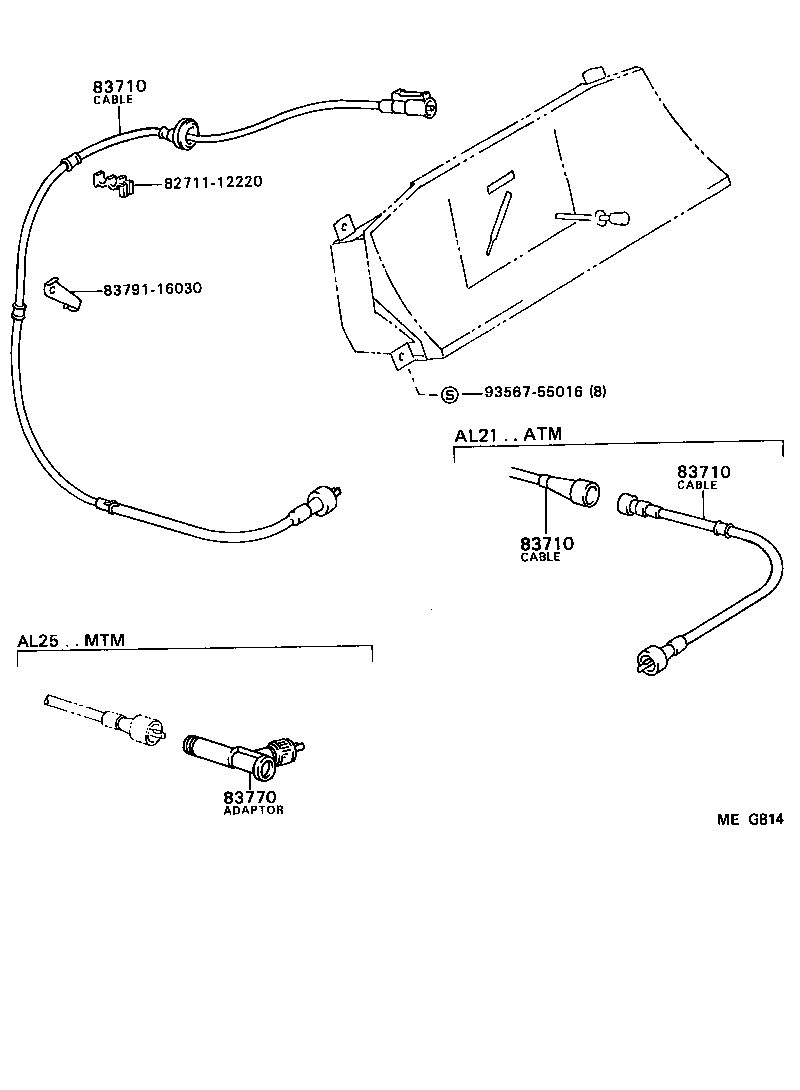

diagram 8271112220 83710 83710 83710 83770 8379116030 9356755016
Part # Description Qty Price
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-16080

AL21..MTM

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-16080

AL21..MTM

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-16080

AL21..MTM

 1
Common parts
82711-12220
83791-16030
93567-55016
