AL21L-ZGKRCK (1982)
Toyota Tercel
(8208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-14350 | ||||
| 82711-16080 | ||||
| 82711-16110 | ||||
| 82711-16180 | ||||
| 82711-16190 | ||||
| 82711-16200 | ||||
| 82711-16240 | ||||
| 82711-22300 | ||||
| 82817-16110 | ||||
| 82817-16140 | ||||
| 82819-16070 | ||||
| 90461-06105 | ||||
| 90461-06143 | ||||
| 90461-08187 | ||||
| 90461-08312 | ||||
| 90461-08365 | ||||
| 90461-08370 | ||||
| 90461-10275 | ||||
| 90463-10521 | ||||
| 90464-00082 | ||||
| 90464-00108 | ||||
| 90464-00165 | ||||
| 90950-01385 | ||||
(8208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07200 |
AL2# L=350,ENGINE-DASH |
1 | ||
| 90980-07208 |
AL2#..MTM L=210,MISSION-FLOOR |
1 | ||
| 90980-07119 |
AL2# L=320,CLUCH-FLOOR |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07200 |
AL2# L=350,ENGINE-DASH |
1 | ||
| 90980-07208 |
AL2#..MTM L=210,MISSION-FLOOR |
1 | ||
| 90980-07119 |
AL2# L=320,CLUCH-FLOOR |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07200 |
AL2# L=350,ENGINE-DASH |
1 | ||
| 90980-07208 |
AL2#..MTM L=210,MISSION-FLOOR |
1 | ||
| 90980-07119 |
AL2# L=320,CLUCH-FLOOR |
1 | ||

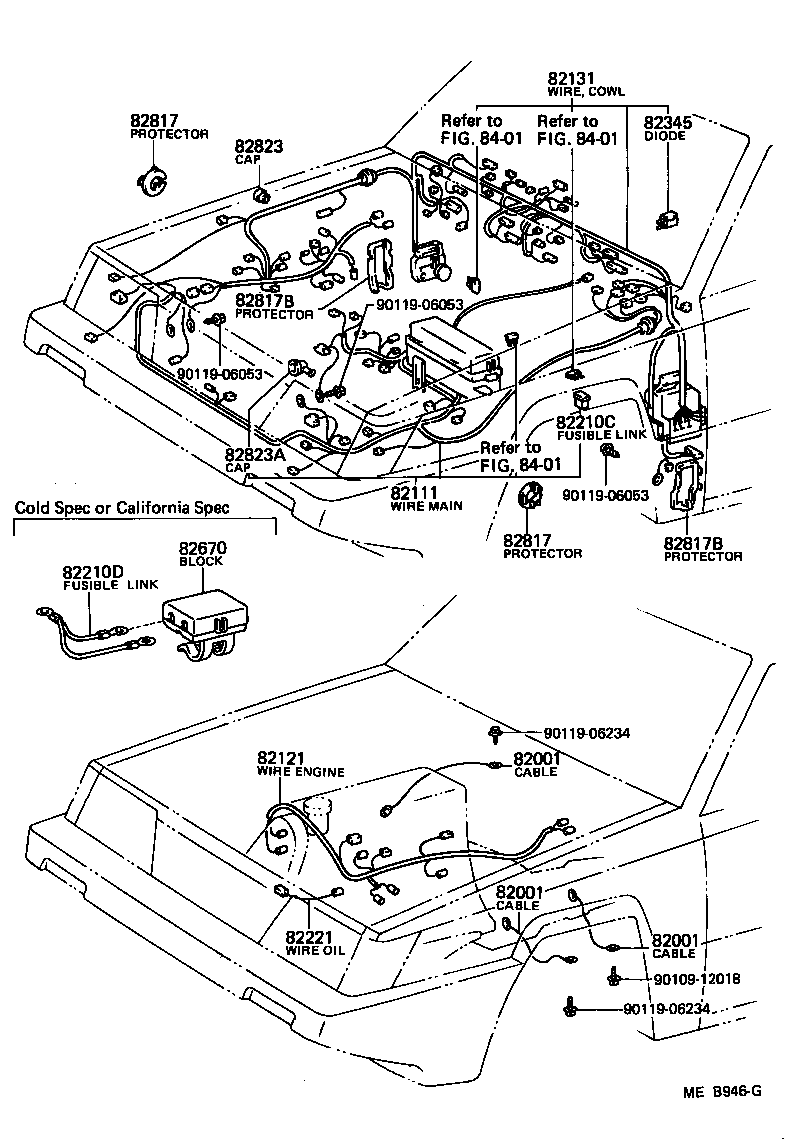

| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-16220 |
AL2#..(3FC,4F)..CND..3AC |
1 | ||
| 82111-16090 |
AL21..CND..3AC |
1 | ||
| 82111-16100 |
AL21..3A;AL25..CND |
1 | ||
| 82111-16230 |
AL21..3A;AL2#..WG..MTM..CND |
1 | ||
| 82111-16310 |
AL21..(3FC,4F)..CND..3AC |
1 | ||
| 82111-16311 |
AL21..(3FC,4F)..CND..3AC |
1 | ||
| 82111-16340 |
AL21..3A;AL21..5F..CND..3AC |
1 | ||
| 82111-16341 |
AL21..3A;AL21..5F..CND..3AC |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-16160 |
AL21..MTM |
1 | ||
| 82121-16030 |
AL21..MTM |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-16120 |
AL21..3A;AL25..CND |
1 | ||
| 82131-16110 |
AL21..CND..3AC |
1 | ||
| 82131-16480 |
AL21..USA;AL21..(3FC,4F)..CND..3AC |
1 | ||
| 82131-16290 |
AL21..3A;AL2#..WG..MTM..CND |
1 | ||
| 82131-16111 |
AL21..CND..3AC |
1 | ||
| 82131-16511 |
AL21..3A;AL2#..WG..MTM..CND |
1 | ||
| 82131-16280 |
AL2#..(3FC,4F)..CND..3AC |
1 | ||
| 82131-16490 |
AL21..USA;AL21..(3FC,4F)..CND..3AC |
1 | ||
| 82131-16510 |
AL21..3A;AL2#..WG..MTM..CND |
1 | ||
| 82131-16491 |
AL21..USA;AL21..(3FC,4F)..CND..3AC |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AL2# 30A,TERM.:FEMALE,PNK,30A |
2 | ||
| 90982-08189 |
AL21..USA;AL25..3FC;AL25..6F..USA;AL21..(3FC,4F)..CND..3AC 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 90982-08190 |
AL2# 60A,TERM.:FEMALE,YEL,60A |
1 | ||
| 82221 - WIRE, OIL PRESSURE SWITCH | ||||
| 82221-16030 |
AL2# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-16020 |
AL2# |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-16020 |
AL2# |
2 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-16050 |
AL2# LH |
1 | ||
| 82817-16040 |
AL2# RH |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-16050 |
AL2# LH |
1 | ||
| 82817-16040 |
AL2# RH |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-30010 |
AL2#..USA;AL21..STD..CND..3AC |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-22020 |
AL2# ALTERNATOR |
1 | ||
| Common parts | ||||
| 90109-12018 | ||||
| 90119-06053 | ||||
| 90119-06234 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

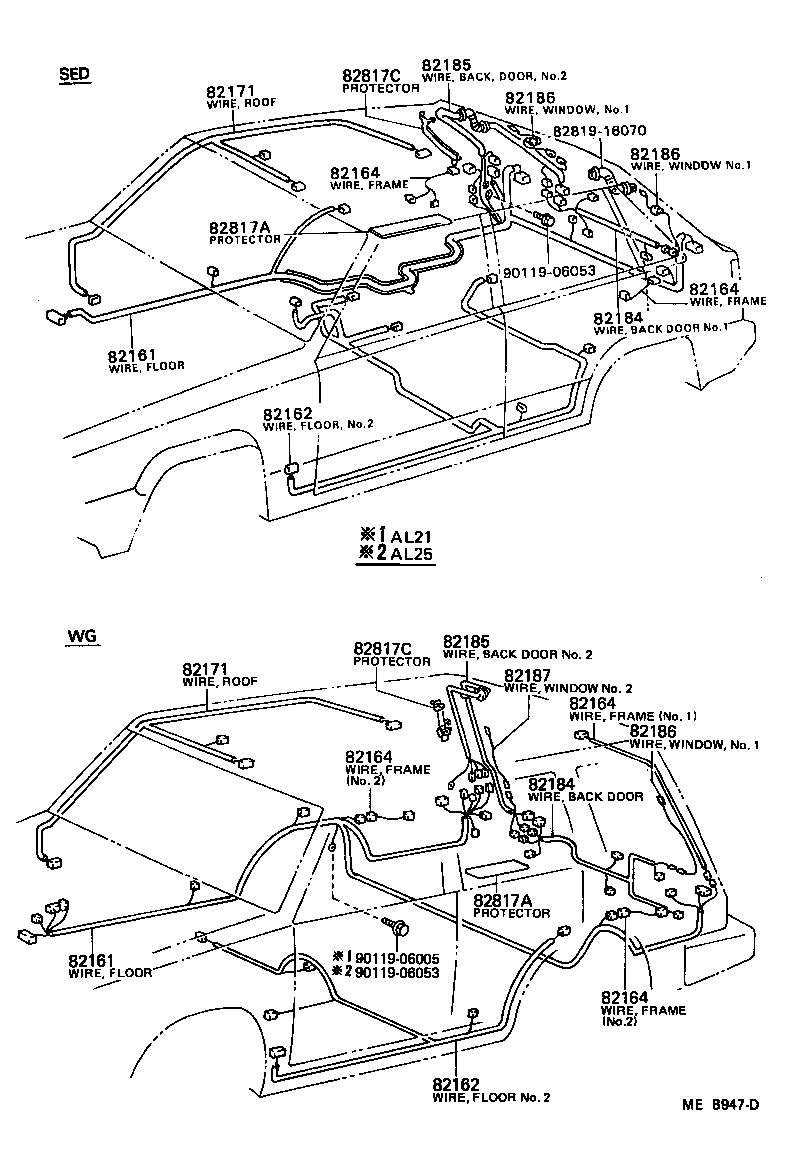

| 82161 - WIRE, FLOOR | ||||
| 82161-16020 |
AL21..SED W/RR ROOM LAMP OR RR WIPER |
1 | ||
| 82161-16010 |
AL21..SED..(DLX,STD) |
1 | ||
| 82161-16170 |
AL21..SED..(DLX,STD) |
1 | ||
| 82161-16180 |
AL21..SED W/RR ROOM LAMP OR RR WIPER |
1 | ||
| 82161-16181 |
AL21..SED W/RR ROOM LAMP OR RR WIPER |
1 | ||
| 82161-16171 |
AL21..SED |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-16020 |
AL21..SED W/RR ROOM LAMP OR RR WIPER |
1 | ||
| 82161-16010 |
AL21..SED..(DLX,STD) |
1 | ||
| 82161-16170 |
AL21..SED..(DLX,STD) |
1 | ||
| 82161-16180 |
AL21..SED W/RR ROOM LAMP OR RR WIPER |
1 | ||
| 82161-16181 |
AL21..SED W/RR ROOM LAMP OR RR WIPER |
1 | ||
| 82161-16171 |
AL21..SED |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-16030 |
AL21 |
1 | ||
| 82162-16031 |
AL21 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-16030 |
AL21 |
1 | ||
| 82162-16031 |
AL21 |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-16040 |
AL21..SED W/*RRL |
1 | ||
| 82164-16040 |
AL21..3A;AL21..SED..(3FC,5F)..3AC W/*RRL |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-16040 |
AL21..SED W/*RRL |
1 | ||
| 82164-16040 |
AL21..3A;AL21..SED..(3FC,5F)..3AC W/*RRL |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-16040 |
AL21..SED W/*RRL |
1 | ||
| 82164-16040 |
AL21..3A;AL21..SED..(3FC,5F)..3AC W/*RRL |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-16040 |
AL21..SED W/*RRL |
1 | ||
| 82164-16040 |
AL21..3A;AL21..SED..(3FC,5F)..3AC W/*RRL |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-16040 |
AL21..SED W/*RRL |
1 | ||
| 82164-16040 |
AL21..3A;AL21..SED..(3FC,5F)..3AC W/*RRL |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-16030 |
AL21..SED..CND W/SUN ROOF |
1 | ||
| 82171-16010 |
AL21..SED |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-16030 |
AL21..SED..CND W/SUN ROOF |
1 | ||
| 82171-16010 |
AL21..SED |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-16020 |
AL21 W/*RWD OR *RW |
1 | ||
| 82184-16100 |
AL21..SED W/*RWD |
1 | ||
| 82184-16020 |
AL21..SED W/*RWD |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-16020 |
AL21 W/*RWD OR *RW |
1 | ||
| 82184-16100 |
AL21..SED W/*RWD |
1 | ||
| 82184-16020 |
AL21..SED W/*RWD |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-16010 |
AL21..SED W/RR WIPER |
1 | ||
| 82185-16090 |
AL21..SED |
1 | ||
| 82185-16100 |
AL21..SED W/RR WIPER |
1 | ||
| 82185-16080 |
AL21..SED |
1 | ||
| 82185-16050 |
AL21..SED |
1 | ||
| 82185-16070 |
AL21..SED W/RR WIPER |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-16010 |
AL21..SED W/RR WIPER |
1 | ||
| 82185-16090 |
AL21..SED |
1 | ||
| 82185-16100 |
AL21..SED W/RR WIPER |
1 | ||
| 82185-16080 |
AL21..SED |
1 | ||
| 82185-16050 |
AL21..SED |
1 | ||
| 82185-16070 |
AL21..SED W/RR WIPER |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-16010 |
AL21..SED |
2 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-16010 |
AL21..SED |
2 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-16010 |
AL21..SED |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-16100 |
AL21 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-16100 |
AL21 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-16120 |
AL21..SED |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-16120 |
AL21..SED |
1 | ||
| Common parts | ||||
| 82819-16070 | ||||
| 90119-06005 | ||||
| 90119-06053 | ||||
(8208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

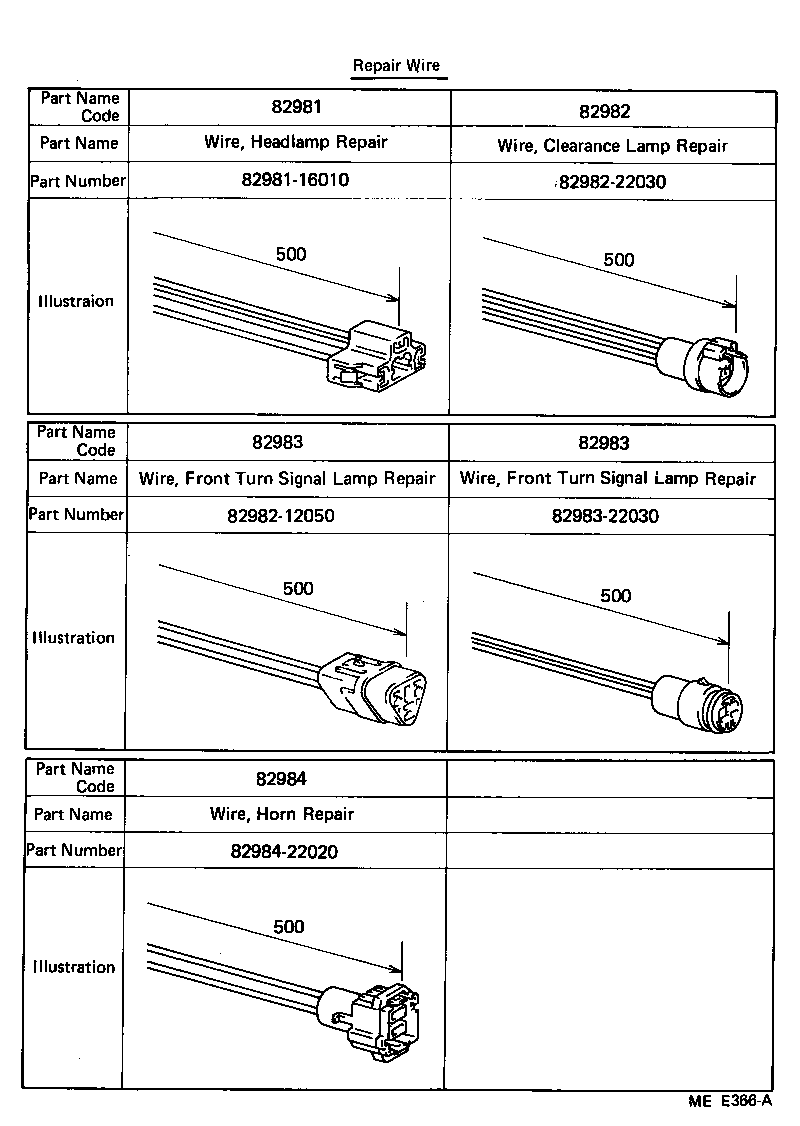

| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-16010 |
AL2# |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-22030 |
AL2# |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-22030 |
AL2# |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-22030 |
AL2# |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-22020 |
AL2# |
1 | ||
| Common parts | ||||
| 82981-16010 | ||||
| 82982-12050 | ||||
| 82982-22030 | ||||
| 82983-22030 | ||||
| 82984-22020 | ||||
(8208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90464-00312 | ||||
