AL21L-ZGKRCK (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3AC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

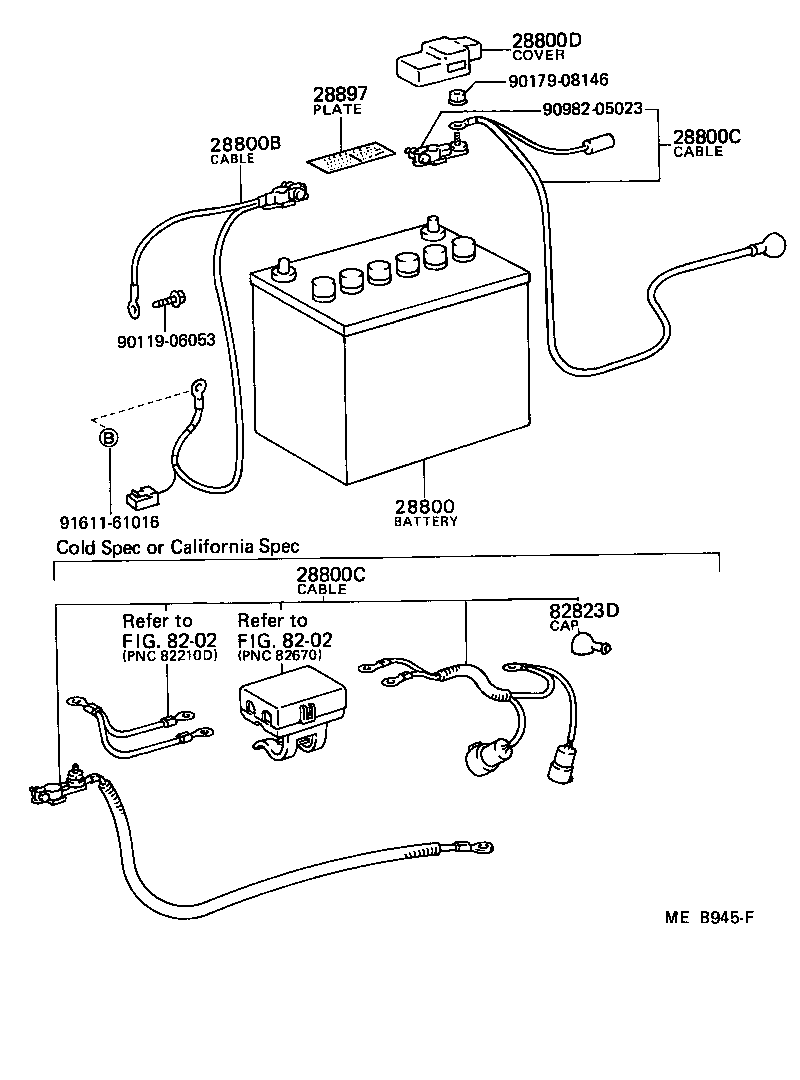

Click highlighted areas on diagram

diagram 28800 28800B 28800C 28800C 28800D 28897 8202 8202 82823D 9011906053 9017908146 9098205023 9161161016
Part # Description Qty Price
28800 - BATTERY
28800-14010

3A#..AL2#..CND

55D23R,55D23R

 1
28800B - CABLE, BATTERY TO GROUND
82123-16020

3A#..AL2#

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-16080

3A#..AL2#..CND

 1
82122-16060

3A#..AL2#

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-16080

3A#..AL2#..CND

 1
82122-16060

3A#..AL2#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12150

3A#..AL2#

 1
28897 - PLATE, BATTERY CAUTION
28897-38010

3A#..AL2#..CND

 1
Common parts
90119-06053
90179-08146
90982-05023
91611-61016
Linked diagrams
8202
