AL21L-ZGKRCK (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3AC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

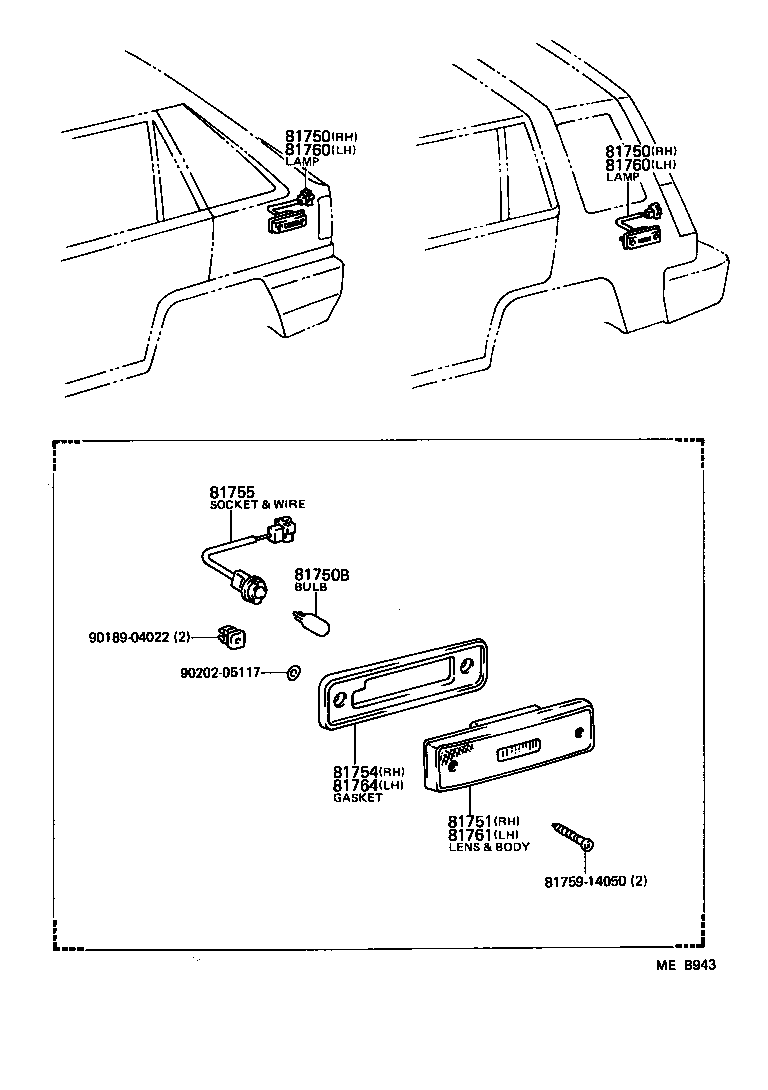

Click highlighted areas on diagram

diagram 81750 81750 81750B 81751 81754 81755 8175914050 81760 81760 81761 81764 9018904022 9020205117
Part # Description Qty Price
81750 - LAMP ASSY, REAR SIDE MARKER, RH
81750-19195

AL2#

 1
81750 - LAMP ASSY, REAR SIDE MARKER, RH
81750-19195

AL2#

 1
81750B - BULB, REAR SIDE MARKER LAMP
90981-11020

AL2#

12V 3.8W,12V 3.8W

 2
81751 - LENS, REAR SIDE MARKER LAMP, RH
81751-14030

AL2#

 1
81754 - GASKET, REAR SIDE MARKER LAMP BODY, RH
81754-16010

AL2#

 1
81755 - SOCKET & WIRE SUB-ASSY, REAR SIDE MARKER LAMP
81755-20060

AL2#

 1
81760 - LAMP ASSY, REAR SIDE MARKER, LH
81760-19145

AL2#

 1
81760 - LAMP ASSY, REAR SIDE MARKER, LH
81760-19145

AL2#

 1
81761 - LENS, REAR SIDE MARKER LAMP, LH
81751-14030

AL2#

 1
81764 - GASKET, REAR SIDE MARKER LAMP BODY, LH
81764-16010

AL2#

 1
Common parts
81759-14050
90189-04022
90202-05117
