AL21L-ZGKRCK (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3AC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

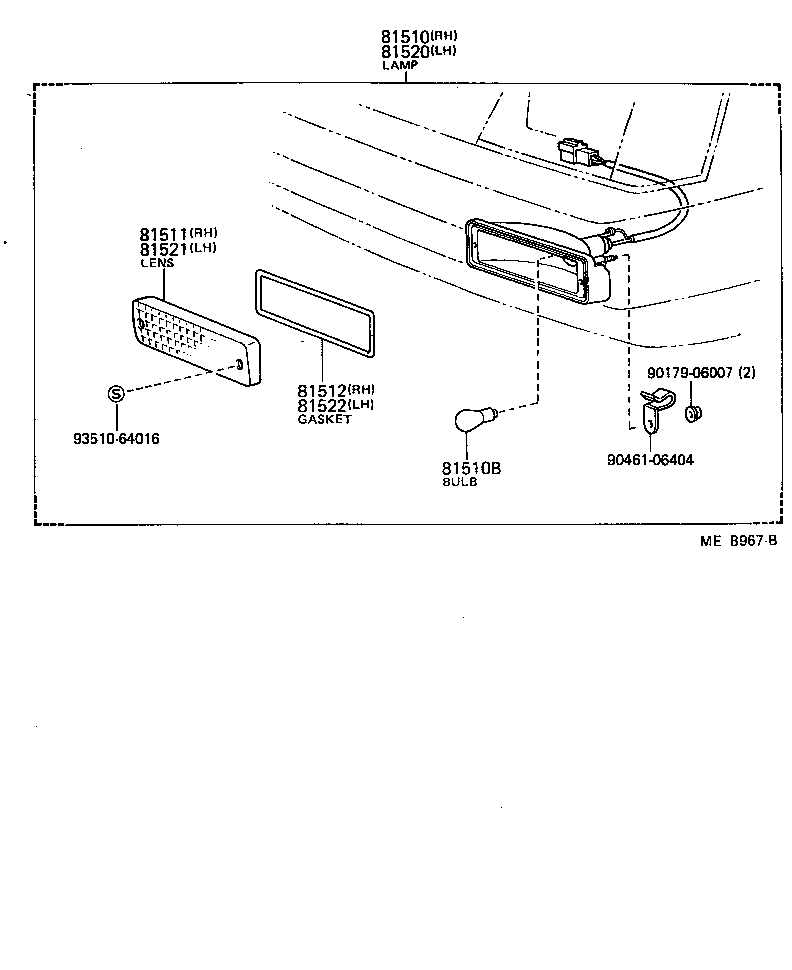

Click highlighted areas on diagram

diagram 81510 81510B 81511 81512 81520 81521 81522 9017906007 9046106404 9351064016
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-29657

AL2#

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11270

AL2#

12V 27W,12V 27W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-22221

AL2#

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-14140

AL2#

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-29657

AL2#

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-22221

AL2#

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-14140

AL2#

 1
Common parts
90179-06007
90461-06404
93510-64016
