AL21L-ZGKRCK (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3AC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208-8608)3DS

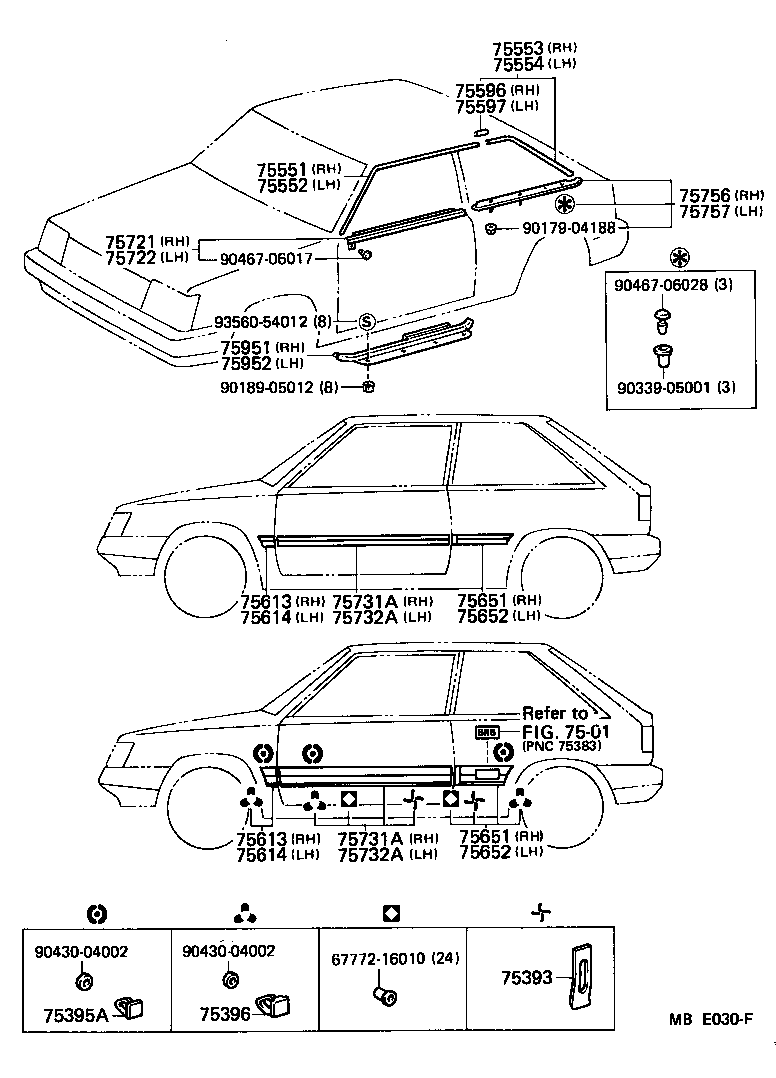

Click highlighted areas on diagram

diagram 6777216010 7501 75393 75395A 75396 75551 75552 75553 75554 75596 75597 75613 75613 75614 75614 75651 75651 75652 75652 75721 75722 75731A 75731A 75732A 75732A 75756 75757 75951 75952 9017904188 9018905012 9033905001 9043004002 9043004002 9046706017 9046706028 9356054012
Part # Description Qty Price
75613 - MOULDING, FRONT FENDER, OUTSIDE RH
75611-1617003

AL21..STD..3A

86 CAMPAIGN,GRAY,SILVER METALLIC

 1
75611-1621001

AL25..DLX;AL21..(DLX,STD)..CND;AL21..(3FC,5F)..(DLX,STD)..USA

BLACK,BLACK

 1
75613 - MOULDING, FRONT FENDER, OUTSIDE RH
75611-1617003

AL21..STD..3A

86 CAMPAIGN,GRAY,SILVER METALLIC

 1
75611-1621001

AL25..DLX;AL21..(DLX,STD)..CND;AL21..(3FC,5F)..(DLX,STD)..USA

BLACK,BLACK

 1
75614 - MOULDING, FRONT FENDER, OUTSIDE LH
75612-1616003

AL21..STD..3A

86 CAMPAIGN,GRAY,SILVER METALLIC

 1
75612-1619001

AL25..DLX;AL21..(DLX,STD)..CND;AL21..(3FC,5F)..(DLX,STD)..USA

BLACK,BLACK

 1
75614 - MOULDING, FRONT FENDER, OUTSIDE LH
75612-1616003

AL21..STD..3A

86 CAMPAIGN,GRAY,SILVER METALLIC

 1
75612-1619001

AL25..DLX;AL21..(DLX,STD)..CND;AL21..(3FC,5F)..(DLX,STD)..USA

BLACK,BLACK

 1
75651 - MOULDING, QUARTER, OUTSIDE RH
75651-1616001

AL21..3DS..STD..CND;AL21..3DS..(3FC,5F)..(DLX,STD)..3AC

BLACK,BLACK

 1
75651-1625001

AL21..STD..3A;AL21..3DS..(3FC,5F)..3AC

BLACK,BLACK

 1
75651-1627003

AL21..STD..3A

86 CAMPAIGN,GRAY,SILVER METALLIC

 1
75651 - MOULDING, QUARTER, OUTSIDE RH
75651-1616001

AL21..3DS..STD..CND;AL21..3DS..(3FC,5F)..(DLX,STD)..3AC

BLACK,BLACK

 1
75651-1625001

AL21..STD..3A;AL21..3DS..(3FC,5F)..3AC

BLACK,BLACK

 1
75651-1627003

AL21..STD..3A

86 CAMPAIGN,GRAY,SILVER METALLIC

 1
75652 - MOULDING, QUARTER, OUTSIDE LH
75652-1614001

AL21..3DS..STD..CND;AL21..3DS..(3FC,5F)..(DLX,STD)..3AC

BLACK,BLACK

 1
75652-1625003

AL21..STD..3A

86 CAMPAIGN,GRAY,SILVER METALLIC

 1
75652-1623001

AL21..STD..3A;AL21..3DS..(3FC,5F)..3AC

BLACK,BLACK

 1
75652 - MOULDING, QUARTER, OUTSIDE LH
75652-1614001

AL21..3DS..STD..CND;AL21..3DS..(3FC,5F)..(DLX,STD)..3AC

BLACK,BLACK

 1
75652-1625003

AL21..STD..3A

86 CAMPAIGN,GRAY,SILVER METALLIC

 1
75652-1623001

AL21..STD..3A;AL21..3DS..(3FC,5F)..3AC

BLACK,BLACK

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-1614003

AL21..STD..3A

86 CAMPAIGN,GRAY,SILVER METALLIC

 1
75731-1630001

AL21..3DS..STD..CND;AL21..3DS..(3FC,5F)..(DLX,STD)..3AC

BLACK,BLACK

 1
75731-1613001

AL21..STD..3A;AL21..3DS..(3FC,5F)..3AC

BLACK,BLACK

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-1614003

AL21..STD..3A

86 CAMPAIGN,GRAY,SILVER METALLIC

 1
75731-1630001

AL21..3DS..STD..CND;AL21..3DS..(3FC,5F)..(DLX,STD)..3AC

BLACK,BLACK

 1
75731-1613001

AL21..STD..3A;AL21..3DS..(3FC,5F)..3AC

BLACK,BLACK

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-1614003

AL21..STD..3A

86 CAMPAIGN,GRAY,SILVER METALLIC

 1
75732-1613001

AL21..STD..3A;AL21..3DS..(3FC,5F)..3AC

BLACK,BLACK

 1
75732-1630001

AL21..3DS..STD..CND;AL21..3DS..(3FC,5F)..(DLX,STD)..3AC

BLACK,BLACK

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-1614003

AL21..STD..3A

86 CAMPAIGN,GRAY,SILVER METALLIC

 1
75732-1613001

AL21..STD..3A;AL21..3DS..(3FC,5F)..3AC

BLACK,BLACK

 1
75732-1630001

AL21..3DS..STD..CND;AL21..3DS..(3FC,5F)..(DLX,STD)..3AC

BLACK,BLACK

 1
75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH
67913-1603002

AL21..3DS..(DLX,STD)

DARK WINE,DARK WINE

 1
67913-1603002

AL21..3DS

DARK WINE,DARK WINE

 1
67913-1603003

AL21..3DS

GRAY,GRAY

 1
67913-1603013

AL21..3DS

GRAY,GRAY

 1
67913-1603005

AL21..3DS

BEIGE,BEIGE

 1
67913-1603006

AL21..3DS

BROWN,BROWN

 1
75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67914-1603002

AL21..3DS

DARK WINE,DARK WINE

 1
67914-1603006

AL21..3DS

BROWN,BROWN

 1
67914-1603005

AL21..3DS

BEIGE,BEIGE

 1
67914-1603002

AL21..3DS..(DLX,STD)

DARK WINE,DARK WINE

 1
67914-1603013

AL21..3DS

GRAY,GRAY

 1
67914-1603003

AL21..3DS

GRAY,GRAY

 1
Common parts
67772-16010
90179-04188
90189-05012
90339-05001
90430-04002
90467-06017
90467-06028
93560-54012
Linked diagrams
7501
