AL21L-ZGKRCK (1982)
Toyota Tercel
Production
Aug 1982
-
Aug 1986
Engine
3AC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8208- )

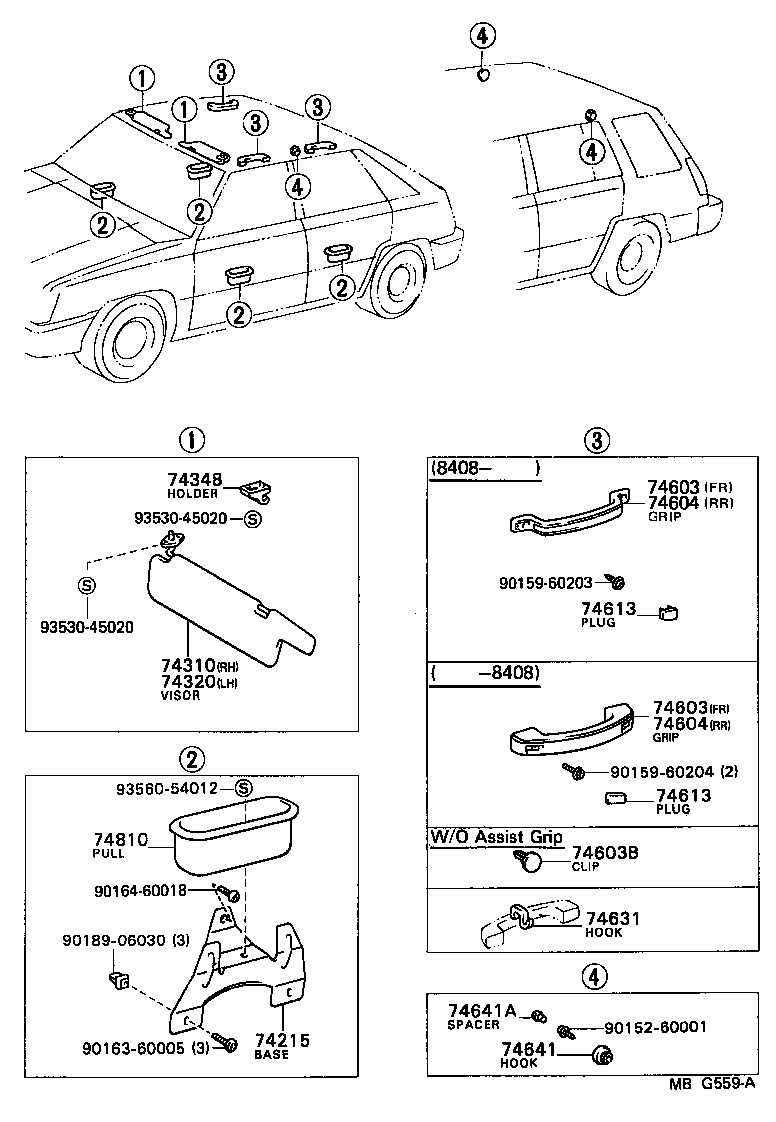

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74215 - BASE, DOOR ARMREST | ||||
| 74215-16010 |
AL21..3DS |
2 | ||
| 74310 - VISOR ASSY, RH | ||||
| 74310-16160 |
AL21..STD IVORY |
1 | ||
| 74310-16160 |
AL2# IVORY |
1 | ||
| 74310-1626008 |
AL21..STD IVORY,IVORY |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-16110 |
AL2# IVORY |
1 | ||
| 74320-1623008 |
AL2# IVORY,IVORY |
1 | ||
| 74320-1623008 |
AL21..3DS IVORY,IVORY |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-3201008 |
AL21..3DS IVORY,IVORY |
2 | ||
| 74348-3201008 |
AL2# IVORY,IVORY |
2 | ||
| 74603B - CLIP (FOR ASSIST GRIP) | ||||
| 90467-0700718 |
AL2# IVORY,IVORY |
7 | ||
| 90467-0604808 |
AL21..3DS IVORY,IVORY |
7 | ||
| 90467-0604808 |
AL2# IVORY,IVORY |
7 | ||
| 74641 - HOOK, COAT, B | ||||
| 74631-1206018 |
AL21..SED IVORY,IVORY |
1 | ||
| 74631-1206018 |
AL21..3DS IVORY,IVORY |
1 | ||
| 74641A - SPACER (FOR COAT HOOK) | ||||
| 74634-12010 |
AL21..SED |
1 | ||
| 74634-12010 |
AL21..3DS |
1 | ||
| 74810 - PULL ASSY, DOOR, INSIDE | ||||
| 74811-1601002 |
AL21..3DS DARK WINE,RED/MAROON |
2 | ||
| 74811-1601006 |
AL21..3DS BROWN,BROWN |
2 | ||
| 74811-1601003 |
AL21..3DS GRAY,GRAY |
2 | ||
| 74811-1601002 |
AL21..3DS..(DLX,STD) DARK WINE,RED/MAROON |
2 | ||
| 74811-1601013 |
AL21..3DS GRAY,GRAY |
2 | ||
| 74811-1601005 |
AL21..3DS BEIGE,BEIGE |
2 | ||
| Common parts | ||||
| 90152-60001 | ||||
| 90159-60203 | ||||
| 90159-60204 | ||||
| 90163-60005 | ||||
| 90164-60018 | ||||
| 90189-06030 | ||||
| 93530-45020 | ||||
| 93560-54012 | ||||
