AL21L-ZGKRCK (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3AC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

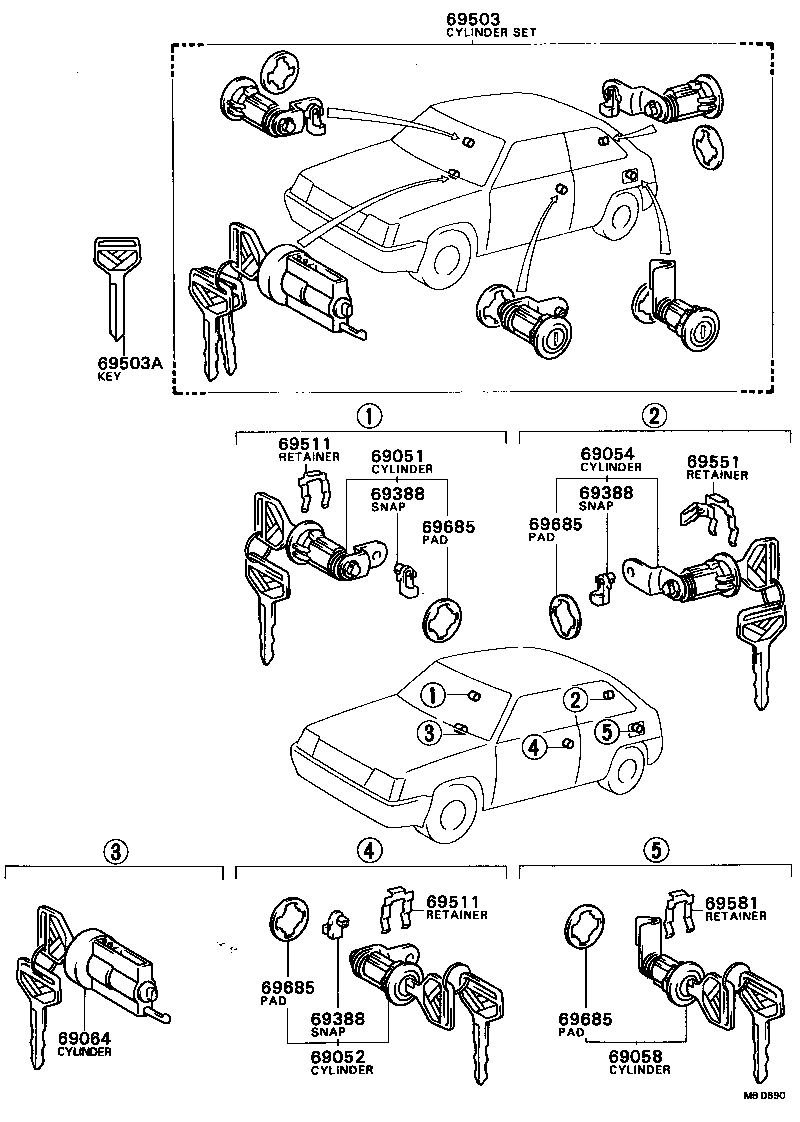

Click highlighted areas on diagram

diagram 69051 69052 69054 69058 69064 69388 69388 69388 69503 69503A 69511 69511 69551 69581 69685 69685 69685 69685
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-16060

AL2#

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-16060

AL2#

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-16151

AL21..3DS

 1
69055-16150

AL21

 1
69055-16170

AL21..STD

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-16090

AL21

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-16060

AL2#

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-24090

AL2#

LH FR DOOR

 1
69759-24080

AL2#

RH FR DOOR,BACK DOOR

 2
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-24090

AL2#

LH FR DOOR

 1
69759-24080

AL2#

RH FR DOOR,BACK DOOR

 2
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-24090

AL2#

LH FR DOOR

 1
69759-24080

AL2#

RH FR DOOR,BACK DOOR

 2
69503 - CYLINDER SET, LOCK
69005-16191

AL21..3DS..(DLX,STD)

 1
69005-16190

AL21

 1
69005-16191

AL21..3DS

 1
69503A - KEY, BLANK
90999-00085

AL2#

MASTER KEY

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32010

AL2#

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32010

AL2#

 2
69551 - RETAINER, BACK DOOR LOCK CYLINDER
69501-16010

AL21..SED

 1
69581 - RETAINER, FUEL FILLER LID CYLINDER
69511-32010

AL2#

 1
69685 - PAD, LOCK CYLINDER
69563-16010

AL2#

BACK DOOR

 1
69563-32010

AL21..STD

BACK DOOR

 1
69513-32010

AL2#

FR DOOR,FUEL LID

 3
69563-16010

AL2#..WG;AL21..3DS

BACK DOOR

 1
69685 - PAD, LOCK CYLINDER
69563-16010

AL2#

BACK DOOR

 1
69563-32010

AL21..STD

BACK DOOR

 1
69513-32010

AL2#

FR DOOR,FUEL LID

 3
69563-16010

AL2#..WG;AL21..3DS

BACK DOOR

 1
69685 - PAD, LOCK CYLINDER
69563-32010

AL21..STD

BACK DOOR

 1
69563-16010

AL2#

BACK DOOR

 1
69513-32010

AL2#

FR DOOR,FUEL LID

 3
69563-16010

AL2#..WG;AL21..3DS

BACK DOOR

 1
69685 - PAD, LOCK CYLINDER
69563-32010

AL21..STD

BACK DOOR

 1
69563-16010

AL2#

BACK DOOR

 1
69513-32010

AL2#

FR DOOR,FUEL LID

 3
69563-16010

AL2#..WG;AL21..3DS

BACK DOOR

 1
