AL21L-ZGKRCK (1982)
Toyota Tercel
(8208-8608)3DS

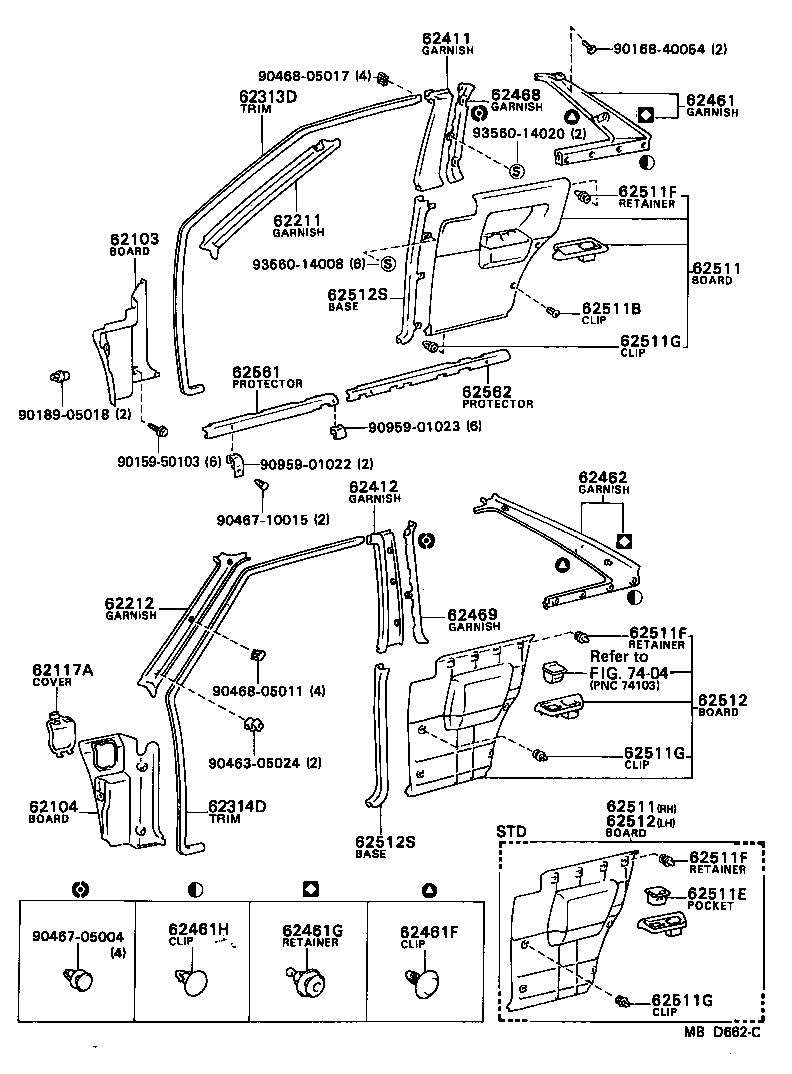

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62103 - BOARD SUB-ASSY, COWL SIDE TRIM, RH | ||||
| 62101-1605006 |
AL2# BROWN,BROWN |
1 | ||
| 62101-1605002 |
AL21..SED DARK WINE,RED/MAROON |
1 | ||
| 62111-1604005 |
AL21..3DS BEIGE,BEIGE |
1 | ||
| 62111-1604002 |
AL21..SED..(DLX,STD) DARK WINE,DARK WINE |
1 | ||
| 62111-1604005 |
AL2# BEIGE,BEIGE |
1 | ||
| 62101-1605003 |
AL2# GRAY,GRAY |
1 | ||
| 62111-1604013 |
AL2# GRAY,GRAY |
1 | ||
| 62104 - BOARD SUB-ASSY, COWL SIDE TRIM, LH | ||||
| 62102-1605002 |
AL21..SED DARK WINE,RED/MAROON |
1 | ||
| 62112-1604005 |
AL2# BEIGE,BEIGE |
1 | ||
| 62112-1604013 |
AL2# GRAY,GRAY |
1 | ||
| 62102-1605003 |
AL2# GRAY,GRAY |
1 | ||
| 62102-1605006 |
AL2# BROWN,BROWN |
1 | ||
| 62112-1604002 |
AL21..SED..(DLX,STD) DARK WINE,DARK WINE |
1 | ||
| 62112-1604005 |
AL21..3DS BEIGE,BEIGE |
1 | ||
| 62117A - COVER, COWL SIDE TRIM SERVICE HOLE | ||||
| 55545-1607006 |
AL2# BROWN,BROWN |
1 | ||
| 55545-1607002 |
AL21..SED DARK WINE,RED/MAROON |
1 | ||
| 55545-1607003 |
AL2# GRAY,GRAY |
1 | ||
| 55545-1607102 |
AL21..SED..(DLX,STD) DARK WINE,DARK WINE |
1 | ||
| 55545-1607105 |
AL2# BEIGE,BEIGE |
1 | ||
| 55545-1607103 |
AL2# GRAY,GRAY |
1 | ||
| 55545-1607105 |
AL21..3DS BEIGE,BEIGE |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-16020 |
AL2# IVORY |
1 | ||
| 62211-16020 |
AL21..3DS IVORY |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-16020 |
AL2# IVORY |
1 | ||
| 62212-16020 |
AL21..3DS IVORY |
1 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-1603006 |
AL21..3DS BROWN,BROWN |
1 | ||
| 62313-1603002 |
AL21..3DS DARK WINE,DARK WINE |
1 | ||
| 62313-1603003 |
AL21..3DS GRAY,GRAY |
1 | ||
| 62313-1603105 |
AL21..3DS BEIGE,BEIGE |
1 | ||
| 62313-1603102 |
AL21..3DS..(DLX,STD) DARK WINE,DARK WINE |
1 | ||
| 62313-1603113 |
AL21..3DS GRAY,GRAY |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62313-1603113 |
AL21..3DS GRAY,GRAY |
1 | ||
| 62313-1603002 |
AL21..3DS DARK WINE,DARK WINE |
1 | ||
| 62313-1603006 |
AL21..3DS BROWN,BROWN |
1 | ||
| 62313-1603105 |
AL21..3DS BEIGE,BEIGE |
1 | ||
| 62313-1603102 |
AL21..3DS..(DLX,STD) DARK WINE,DARK WINE |
1 | ||
| 62313-1603003 |
AL21..3DS GRAY,GRAY |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62411-1607006 |
AL21..3DS BROWN,BROWN |
1 | ||
| 62411-1607002 |
AL21..3DS..(DLX,STD) DARK WINE,DARK WINE |
1 | ||
| 62411-1607013 |
AL21..3DS GRAY,GRAY |
1 | ||
| 62411-1607003 |
AL21..3DS GRAY,GRAY |
1 | ||
| 62411-1607002 |
AL21..3DS DARK WINE,DARK WINE |
1 | ||
| 62411-1607005 |
AL21..3DS BEIGE,BEIGE |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62412-1607013 |
AL21..3DS GRAY,GRAY |
1 | ||
| 62412-1607003 |
AL21..3DS GRAY,GRAY |
1 | ||
| 62412-1607005 |
AL21..3DS BEIGE,BEIGE |
1 | ||
| 62412-1607002 |
AL21..3DS DARK WINE,DARK WINE |
1 | ||
| 62412-1607002 |
AL21..3DS..(DLX,STD) DARK WINE,DARK WINE |
1 | ||
| 62412-1607006 |
AL21..3DS BROWN,BROWN |
1 | ||
| 62461 - GARNISH, ROOF SIDE TRIM, RH | ||||
| 62471-16070 |
AL21..3DS IVORY |
1 | ||
| 62461F - CLIP (FOR ROOF SIDE TRIM GARNISH) | ||||
| 90467-0501608 |
AL21..3DS IVORY,IVORY |
6 | ||
| 62461G - RETAINER, DOOR TRIM | ||||
| 67771-12020 |
AL2# |
6 | ||
| 62461H - CLIP (FOR ROOF SIDE INNER GARNISH) | ||||
| 90467-0501618 |
AL21..STD..3A;AL21..3DS..(3FC,5F)..3AC IVORY,IVORY |
6 | ||
| 90467-0501608 |
AL21..(DLX,STD)..3A;AL21..SED..(3FC,5F)..(DLX,STD)..3AC IVORY,IVORY |
6 | ||
| 62462 - GARNISH, ROOF SIDE TRIM, LH | ||||
| 62472-16070 |
AL21..3DS IVORY |
1 | ||
| 62468 - GARNISH, CENTER PILLAR, REAR RH | ||||
| 62468-1601003 |
AL21..3DS GRAY,GRAY |
1 | ||
| 62468-1601002 |
AL21..3DS DARK WINE,DARK WINE |
1 | ||
| 62468-1601002 |
AL21..3DS..(DLX,STD) DARK WINE,DARK WINE |
1 | ||
| 62468-1601005 |
AL21..3DS BEIGE,BEIGE |
1 | ||
| 62468-1601013 |
AL21..3DS GRAY,GRAY |
1 | ||
| 62468-1601006 |
AL21..3DS BROWN,BROWN |
1 | ||
| 62469 - GARNISH, CENTER PILLAR, REAR LH | ||||
| 62469-1601006 |
AL21..3DS BROWN,BROWN |
1 | ||
| 62469-1601002 |
AL21..3DS DARK WINE,DARK WINE |
1 | ||
| 62469-1601003 |
AL21..3DS GRAY,GRAY |
1 | ||
| 62469-1601013 |
AL21..3DS GRAY,GRAY |
1 | ||
| 62469-1601005 |
AL21..3DS BEIGE,BEIGE |
1 | ||
| 62469-1601002 |
AL21..3DS..(DLX,STD) DARK WINE,DARK WINE |
1 | ||
| 62511 - BOARD, QUARTER INSIDE TRIM, RH | ||||
| 62510-1635002 |
AL21..3DS..(DLX,STD) DARK WINE,RED/MAROON |
1 | ||
| 62510-1635013 |
AL21..3DS..(DLX,STD) GRAY,GRAY |
1 | ||
| 62510-1635005 |
AL21..3DS..(DLX,STD) BEIGE,BEIGE |
1 | ||
| 62510-1635006 |
AL21..3DS..(DLX,STD) BROWN,BROWN |
1 | ||
| 62510-1635003 |
AL21..3DS..(DLX,STD) GRAY,GRAY |
1 | ||
| 62510-1635012 |
AL21..3DS..(DLX,STD) DARK WINE,DARK WINE |
1 | ||
| 62511 - BOARD, QUARTER INSIDE TRIM, RH | ||||
| 62510-1635002 |
AL21..3DS..(DLX,STD) DARK WINE,RED/MAROON |
1 | ||
| 62510-1635013 |
AL21..3DS..(DLX,STD) GRAY,GRAY |
1 | ||
| 62510-1635005 |
AL21..3DS..(DLX,STD) BEIGE,BEIGE |
1 | ||
| 62510-1635006 |
AL21..3DS..(DLX,STD) BROWN,BROWN |
1 | ||
| 62510-1635003 |
AL21..3DS..(DLX,STD) GRAY,GRAY |
1 | ||
| 62510-1635012 |
AL21..3DS..(DLX,STD) DARK WINE,DARK WINE |
1 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-0601753 |
AL21..3DS GRAY,GRAY |
4 | ||
| 90467-0601713 |
AL21..3DS GRAY,GRAY |
4 | ||
| 90467-0601702 |
AL21..3DS..(DLX,STD) DARK WINE,DARK WINE |
4 | ||
| 90467-0601745 |
AL21..3DS BEIGE,BEIGE |
4 | ||
| 90467-0601702 |
AL21..3DS DARK WINE,DARK WINE |
4 | ||
| 90467-0601726 |
AL21..3DS BROWN,BROWN |
4 | ||
| 62511E - POCKET, QUARTER TRIM | ||||
| 62594-1602005 |
AL21..3DS..STD BEIGE,BEIGE |
1 | ||
| 62594-1602006 |
AL21..3DS..STD BROWN,BROWN |
1 | ||
| 62594-1602002 |
AL21..3DS..STD DARK WINE,RED/MAROON |
1 | ||
| 62594-1602013 |
AL21..3DS..STD GRAY,GRAY |
1 | ||
| 62594-1602012 |
AL21..3DS..STD DARK WINE,DARK WINE |
1 | ||
| 62594-1602003 |
AL21..3DS..STD GRAY,GRAY |
1 | ||
| 62511F - RETAINER (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 67771-12020 |
AL21..3DS |
8 | ||
| 67771-22010 |
AL21..3DS |
8 | ||
| 62511F - RETAINER (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 67771-12020 |
AL21..3DS |
8 | ||
| 67771-22010 |
AL21..3DS |
8 | ||
| 62511F - RETAINER (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 67771-12020 |
AL21..3DS |
8 | ||
| 67771-22010 |
AL21..3DS |
8 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-10019 |
AL21..3DS |
4 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-10019 |
AL21..3DS |
4 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-10019 |
AL21..3DS |
4 | ||
| 62512 - BOARD, QUARTER INSIDE TRIM, LH | ||||
| 62520-1630002 |
AL21..3DS..STD DARK WINE,RED/MAROON |
1 | ||
| 62520-1630006 |
AL21..3DS..STD BROWN,BROWN |
1 | ||
| 62520-1630003 |
AL21..3DS..STD GRAY,GRAY |
1 | ||
| 62520-1630013 |
AL21..3DS..STD GRAY,GRAY |
1 | ||
| 62520-1630005 |
AL21..3DS..STD BEIGE,BEIGE |
1 | ||
| 62520-1630012 |
AL21..3DS..STD DARK WINE,DARK WINE |
1 | ||
| 62512 - BOARD, QUARTER INSIDE TRIM, LH | ||||
| 62520-1630002 |
AL21..3DS..STD DARK WINE,RED/MAROON |
1 | ||
| 62520-1630006 |
AL21..3DS..STD BROWN,BROWN |
1 | ||
| 62520-1630003 |
AL21..3DS..STD GRAY,GRAY |
1 | ||
| 62520-1630013 |
AL21..3DS..STD GRAY,GRAY |
1 | ||
| 62520-1630005 |
AL21..3DS..STD BEIGE,BEIGE |
1 | ||
| 62520-1630012 |
AL21..3DS..STD DARK WINE,DARK WINE |
1 | ||
| 62512S - BASE, QUARTER TRIM, FRONT | ||||
| 62517-1601006 |
AL21..3DS RH,BROWN,BROWN |
1 | ||
| 62517-1601002 |
AL21..3DS RH,DARK WINE,DARK WINE |
1 | ||
| 62518-1601006 |
AL21..3DS LH,BROWN,BROWN |
1 | ||
| 62518-1601003 |
AL21..3DS LH,GRAY,GRAY |
1 | ||
| 62517-1601003 |
AL21..3DS RH,GRAY,GRAY |
1 | ||
| 62517-1601005 |
AL21..3DS RH,BEIGE,BEIGE |
1 | ||
| 62517-1601002 |
AL21..3DS..(DLX,STD) RH,DARK WINE,DARK WINE |
1 | ||
| 62518-1601002 |
AL21..3DS LH,DARK WINE,DARK WINE |
1 | ||
| 62518-1601013 |
AL21..3DS LH,GRAY,GRAY |
1 | ||
| 62517-1601013 |
AL21..3DS RH,GRAY,GRAY |
1 | ||
| 62518-1601005 |
AL21..3DS LH,BEIGE,BEIGE |
1 | ||
| 62518-1601002 |
AL21..3DS..(DLX,STD) LH,DARK WINE,DARK WINE |
1 | ||
| 62512S - BASE, QUARTER TRIM, FRONT | ||||
| 62517-1601006 |
AL21..3DS RH,BROWN,BROWN |
1 | ||
| 62517-1601002 |
AL21..3DS RH,DARK WINE,DARK WINE |
1 | ||
| 62518-1601006 |
AL21..3DS LH,BROWN,BROWN |
1 | ||
| 62518-1601003 |
AL21..3DS LH,GRAY,GRAY |
1 | ||
| 62517-1601003 |
AL21..3DS RH,GRAY,GRAY |
1 | ||
| 62517-1601005 |
AL21..3DS RH,BEIGE,BEIGE |
1 | ||
| 62517-1601002 |
AL21..3DS..(DLX,STD) RH,DARK WINE,DARK WINE |
1 | ||
| 62518-1601002 |
AL21..3DS LH,DARK WINE,DARK WINE |
1 | ||
| 62518-1601013 |
AL21..3DS LH,GRAY,GRAY |
1 | ||
| 62517-1601013 |
AL21..3DS RH,GRAY,GRAY |
1 | ||
| 62518-1601005 |
AL21..3DS LH,BEIGE,BEIGE |
1 | ||
| 62518-1601002 |
AL21..3DS..(DLX,STD) LH,DARK WINE,DARK WINE |
1 | ||
| 62561 - PROTECTOR, ROCKER PANEL, INNER FRONT | ||||
| 62561-16010 |
AL2# RH |
1 | ||
| 62562-16010 |
AL2# LH |
1 | ||
| 62562 - PROTECTOR, ROCKER PANEL, INNER REAR | ||||
| 62564-16010 |
AL2# LH |
1 | ||
| 62563-16010 |
AL2# RH |
1 | ||
| Common parts | ||||
| 90159-50103 | ||||
| 90168-40054 | ||||
| 90189-05018 | ||||
| 90463-05024 | ||||
| 90467-05004 | ||||
| 90467-10015 | ||||
| 90468-05011 | ||||
| 90468-05017 | ||||
| 90959-01022 | ||||
| 90959-01023 | ||||
| 93560-14008 | ||||
| 93560-14020 | ||||
| Linked diagrams | ||||
| 7404 | ||||
