AL21L-ZGKRCK (1982)
Toyota Tercel
Production
Aug 1982
-
Aug 1986
Engine
3AC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8208- )

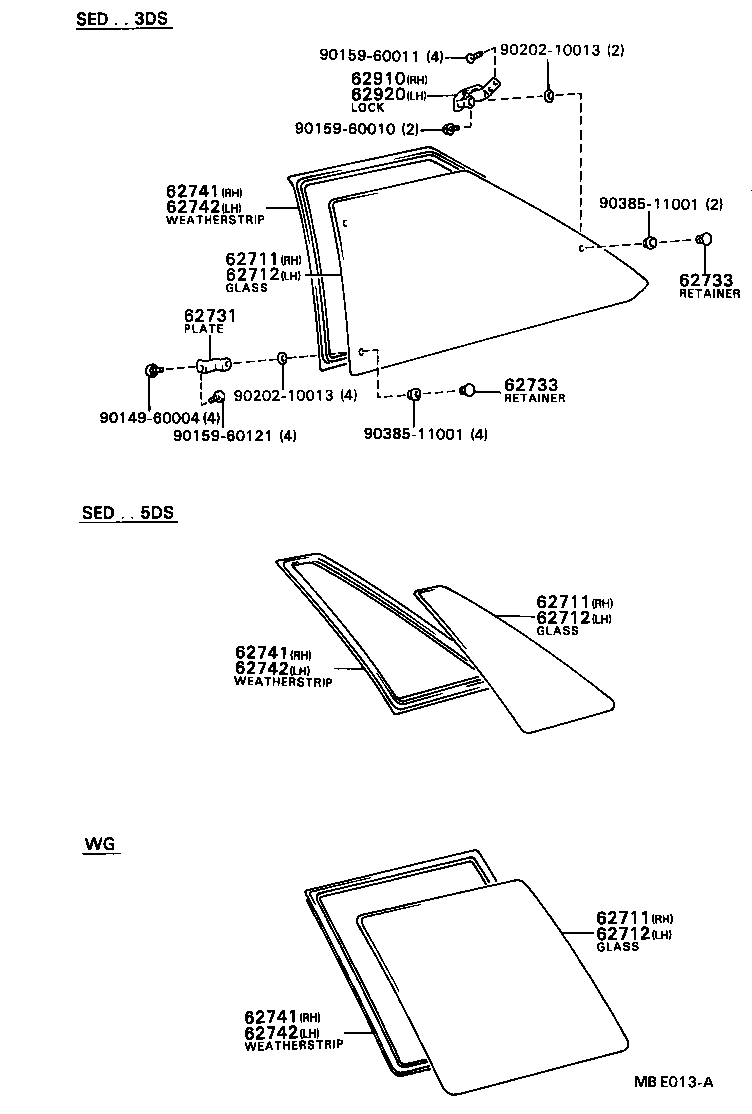

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62711 - GLASS, QUARTER WINDOW, RH | ||||
| 62711-16120 |
AL21..3DS..STD *TEM,T=4.0,SWING OUT TYPE |
1 | ||
| 62711 - GLASS, QUARTER WINDOW, RH | ||||
| 62711-16120 |
AL21..3DS..STD *TEM,T=4.0,SWING OUT TYPE |
1 | ||
| 62711 - GLASS, QUARTER WINDOW, RH | ||||
| 62711-16120 |
AL21..3DS..STD *TEM,T=4.0,SWING OUT TYPE |
1 | ||
| 62712 - GLASS, QUARTER WINDOW, LH | ||||
| 62712-16140 |
AL21..3DS..STD *TEM,T=3.5,FIXED TYPE |
1 | ||
| 62712-16120 |
AL21..3DS..STD *TEM,T=4.0,SWING OUT TYPE |
1 | ||
| 62712 - GLASS, QUARTER WINDOW, LH | ||||
| 62712-16140 |
AL21..3DS..STD *TEM,T=3.5,FIXED TYPE |
1 | ||
| 62712-16120 |
AL21..3DS..STD *TEM,T=4.0,SWING OUT TYPE |
1 | ||
| 62712 - GLASS, QUARTER WINDOW, LH | ||||
| 62712-16140 |
AL21..3DS..STD *TEM,T=3.5,FIXED TYPE |
1 | ||
| 62712-16120 |
AL21..3DS..STD *TEM,T=4.0,SWING OUT TYPE |
1 | ||
| 62731 - PLATE, QUARTER OR SIDE WINDOW HINGE | ||||
| 62731-16020 |
AL21..3DS |
4 | ||
| 62733 - RETAINER, QUARTER OR SIDE WINDOW HINGE | ||||
| 62735-14010 |
AL21..3DS |
6 | ||
| 62733 - RETAINER, QUARTER OR SIDE WINDOW HINGE | ||||
| 62735-14010 |
AL21..3DS |
6 | ||
| 62741 - WEATHERSTRIP, QUARTER WINDOW, RH | ||||
| 62741-16050 |
AL21..3DS SWING OUT TYPE |
1 | ||
| 62741 - WEATHERSTRIP, QUARTER WINDOW, RH | ||||
| 62741-16050 |
AL21..3DS SWING OUT TYPE |
1 | ||
| 62741 - WEATHERSTRIP, QUARTER WINDOW, RH | ||||
| 62741-16050 |
AL21..3DS SWING OUT TYPE |
1 | ||
| 62742 - WEATHERSTRIP, QUARTER WINDOW, LH | ||||
| 62742-16050 |
AL21..3DS SWING OUT TYPE |
1 | ||
| 62742 - WEATHERSTRIP, QUARTER WINDOW, LH | ||||
| 62742-16050 |
AL21..3DS SWING OUT TYPE |
1 | ||
| 62742 - WEATHERSTRIP, QUARTER WINDOW, LH | ||||
| 62742-16050 |
AL21..3DS SWING OUT TYPE |
1 | ||
| 62910 - LOCK ASSY, QUARTER OR SIDE WINDOW, RH | ||||
| 62910-16020 |
AL21..3DS |
1 | ||
| 62920 - LOCK ASSY, QUARTER WINDOW, LH | ||||
| 62920-16020 |
AL21..3DS |
1 | ||
| Common parts | ||||
| 90149-60004 | ||||
| 90159-60010 | ||||
| 90159-60011 | ||||
| 90159-60121 | ||||
| 90202-10013 | ||||
| 90385-11001 | ||||
