AL21L-ZGKRCK (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3AC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208-8608)3DS

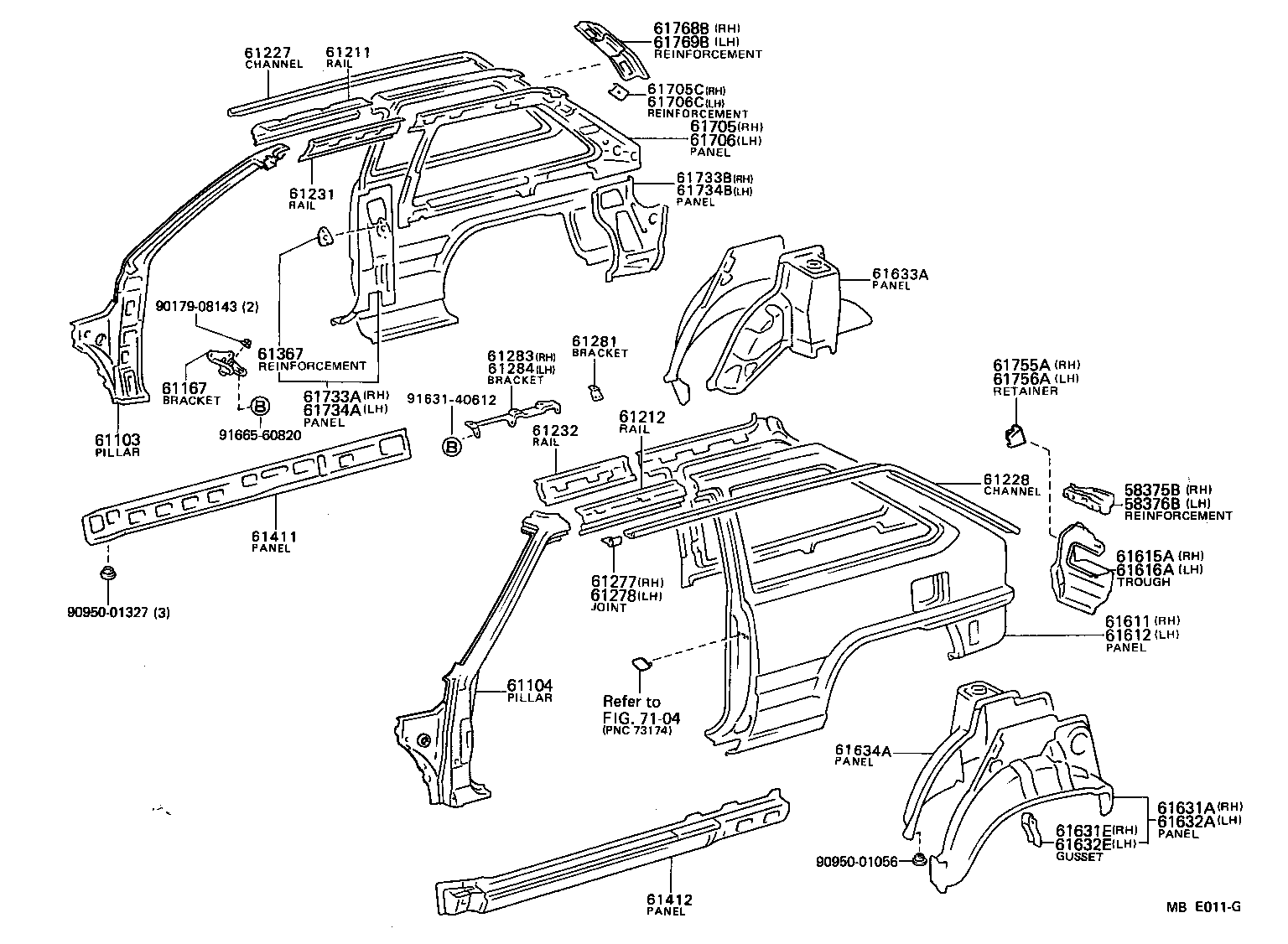

Click highlighted areas on diagram

diagram 58375B 58376B 61103 61104 61167 61211 61212 61227 61228 61231 61232 61277 61278 61281 61283 61284 61367 61411 61412 61611 61612 61615A 61616A 61631A 61631E 61632A 61632E 61633A 61634A 61705 61705C 61706 61706C 61733A 61733B 61734A 61734B 61755A 61756A 61768B 61769B 7104 9017908143 9095001056 9095001327 9163140612 9166560820
Part # Description Qty Price
58375B - REINFORCEMENT, BODY LOWER BACK PANEL, RH
58375-16010

AL21..SED

 1
58376B - REINFORCEMENT, BODY LOWER BACK PANEL, LH
58376-16010

AL21..SED

 1
61103 - PILLAR SUB-ASSY, FRONT BODY, RH
61021-16050

AL21..SED

 1
61021-16160

AL21..SED

 1
61104 - PILLAR SUB-ASSY, FRONT BODY, LH
61022-16190

AL21..SED

 1
61022-16070

AL21..SED

 1
61167 - BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH
61165-16020

AL2#

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-16030

AL21..3DS

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-16030

AL21..3DS

 1
61227 - CHANNEL, ROOF DRIP SIDE, REAR RH
61267-16030

AL21..3DS

 1
61228 - CHANNEL, ROOF DRIP SIDE, REAR LH
61268-16030

AL21..3DS

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-16050

AL21..3DS

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-16050

AL21..3DS

 1
61277 - JOINT, ROOF DRIP CHANNEL, FRONT RH
61277-16020

AL21..STD

 1
61278 - JOINT, ROOF DRIP CHANNEL, FRONT LH
61277-16020

AL21..STD

 1
61281 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1
61281-16010

AL21..CND

 2
61283 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH
61283-16010

AL21..CND

 1
61284 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH
61284-16010

AL21..CND

 1
61367 - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER
61367-14010

AL21..3DS

 2
61411 - PANEL, ROCKER, OUTER RH
61401-16090

AL21..3DS

 1
61412 - PANEL, ROCKER, OUTER LH
61402-16090

AL21..3DS

 1
61611 - PANEL, QUARTER, RH
61601-16904

AL21..3DS

 1
61601-16913

AL21..3DS

 1
61612 - PANEL, QUARTER, LH
61602-16907

AL21..3DS

 1
61602-16920

AL21..3DS

 1
61615A - TROUGH, BACK DOOR OPENING, RH
61621-16030

AL21..SED

 1
61616A - TROUGH, BACK DOOR OPENING, LH
61622-16030

AL21..SED

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61605-16150

AL21..3DS

 1
61631E - GUSSET, QUARTER WHEEL HOUSE, REAR RH
61645-16010

AL21..SED

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61606-16170

AL21..3DS

 1
61632E - GUSSET, QUARTER WHEEL HOUSE, REAR LH
61646-16020

AL21..SED

 1
61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH
61607-16110

AL21

 1
61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH
61608-16140

AL21

 1
61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH
61705-16910

AL21..3DS

 1
61705C - REINFORCEMENT, SEAT BELT ANCHORAGE, REAR RH
61665-14010

AL21..SED

 1
61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH
61706-16910

AL21..3DS

 1
61706C - REINFORCEMENT, SEAT BELT ANCHORAGE, REAR LH
61665-14010

AL21..SED

 1
61733A - PANEL, ROOF SIDE, INNER FRONT RH
61733-16900

AL21..3DS

 1
61733B - PANEL, ROOF SIDE, INNER REAR RH
61735-16030

AL21..SED

 1
61734A - PANEL, ROOF SIDE, INNER FRONT LH
61734-16900

AL21..3DS

 1
61734B - PANEL, ROOF SIDE, INNER REAR LH
61736-16030

AL21..SED

 1
61755A - RETAINER, DECK SIDE TRIM, UPPER RH
61755-16020

AL21..SED

 2
61756A - RETAINER, DECK SIDE TRIM, UPPER LH
61755-16020

AL21..SED

 2
61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH
61768-16010

AL21..3DS

 1
61769B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH
61769-16010

AL21..3DS

 1
Common parts
90179-08143
90950-01056
90950-01327
91631-40612
91665-60820
Linked diagrams
7104
