AL21L-ZGKRCK (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3AC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

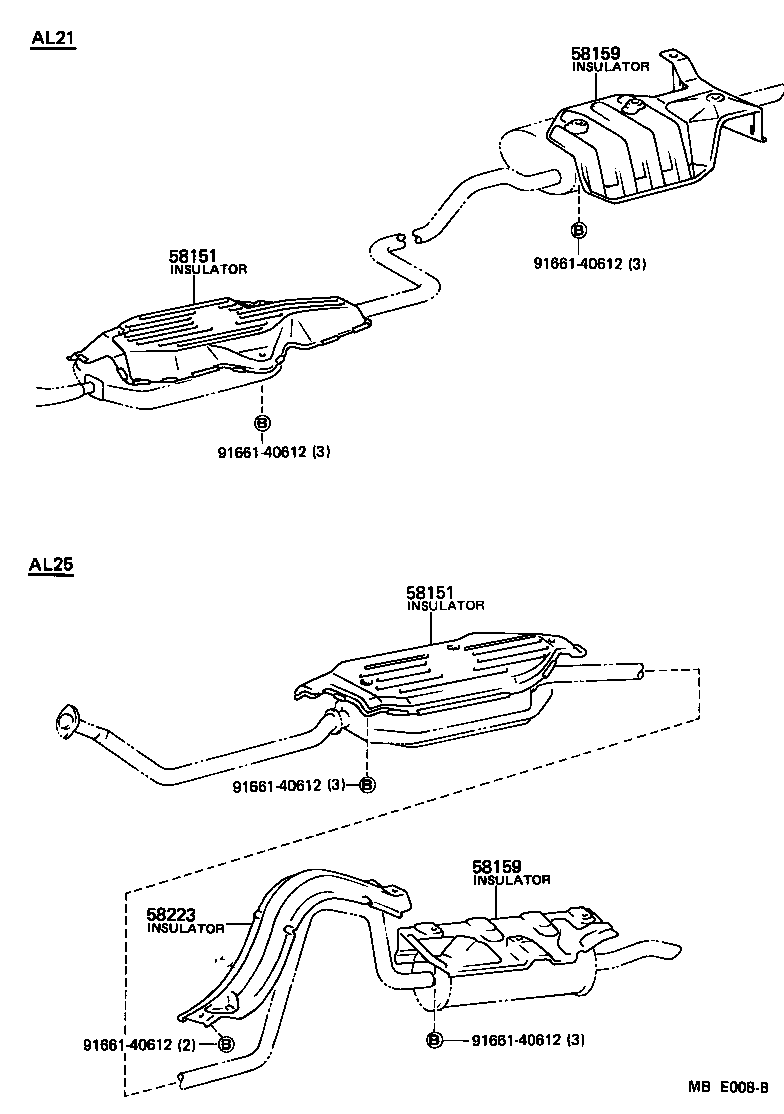

Click highlighted areas on diagram

diagram 58151 58151 58159 58159 58223 9166140612 9166140612 9166140612 9166140612 9166140612
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58041-16040

AL21..SED..3AC

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58041-16040

AL21..SED..3AC

 1
58159 - INSULATOR, MAIN MAFFLAR HEAT
58327-16030

AL21..SED

 1
58159 - INSULATOR, MAIN MAFFLAR HEAT
58327-16030

AL21..SED

 1
Common parts
91661-40612
