AL21L-ZGKRCK (1982)
Toyota Tercel
Production
Aug 1982
-
Aug 1986
Engine
3AC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8208- )AL21

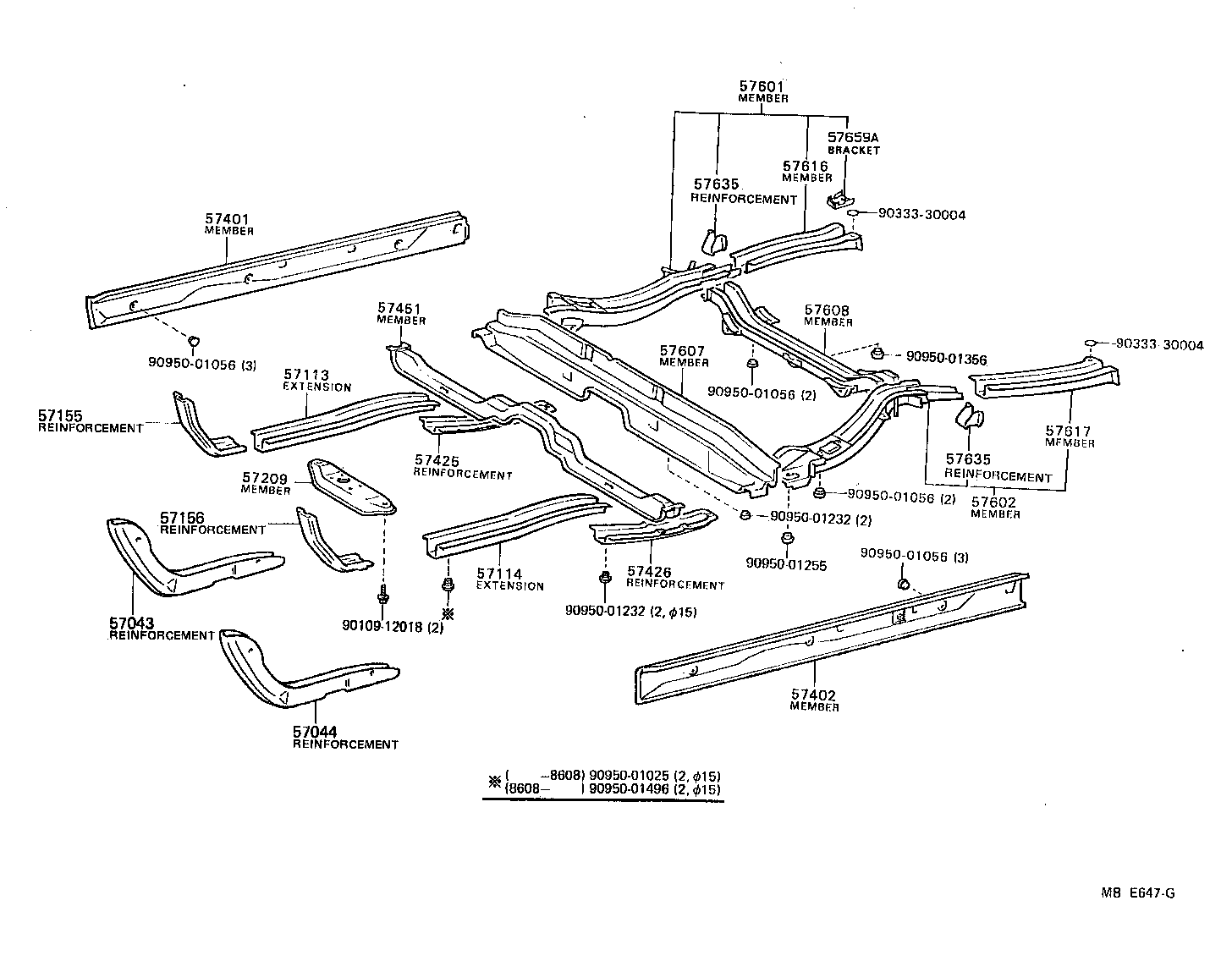

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57043 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-16010 |
AL2# |
1 | ||
| 57044 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-16010 |
AL2# |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-16040 |
AL2# |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-16040 |
AL2# |
1 | ||
| 57155 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH | ||||
| 57155-16010 |
AL2# |
1 | ||
| 57156 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH | ||||
| 57156-16030 |
AL2# |
1 | ||
| 57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT | ||||
| 57209-16040 |
AL21..MTM |
1 | ||
| 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57401-16090 |
AL21..SED |
1 | ||
| 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57402-16090 |
AL21..SED |
1 | ||
| 57425 - REINFORCEMENT, FRONT FLOOR, NO.2 RH | ||||
| 57425-16020 |
AL2# |
1 | ||
| 57426 - REINFORCEMENT, FRONT FLOOR, NO.2 LH | ||||
| 57426-16020 |
AL2# |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57408-16020 |
AL21 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-16050 |
AL21..SED |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-16050 |
AL21..SED |
1 | ||
| 57607 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1 | ||||
| 57605-16010 |
AL21 |
1 | ||
| 57608 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2 | ||||
| 57606-16040 |
AL21 |
1 | ||
| 57616 - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-16901 |
AL21..SED |
1 | ||
| 57617 - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-16901 |
AL21..SED |
1 | ||
| 57635 - REINFORCEMENT, REAR FLOOR SIDE MEMBER | ||||
| 57636-16010 |
AL21..SED LH |
1 | ||
| 57635-16010 |
AL21..SED RH |
1 | ||
| 57635 - REINFORCEMENT, REAR FLOOR SIDE MEMBER | ||||
| 57636-16010 |
AL21..SED LH |
1 | ||
| 57635-16010 |
AL21..SED RH |
1 | ||
| 57659A - BRACKET, EXHAUST PIPE MOUNTING | ||||
| 57659-16010 |
AL21..SED |
1 | ||
| Common parts | ||||
| 90109-12018 | ||||
| 90333-30004 | ||||
| 90950-01025 | ||||
| 90950-01056 | ||||
| 90950-01232 | ||||
| 90950-01255 | ||||
| 90950-01356 | ||||
| 90950-01496 | ||||
