AL21L-ZGKRCK (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3AC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

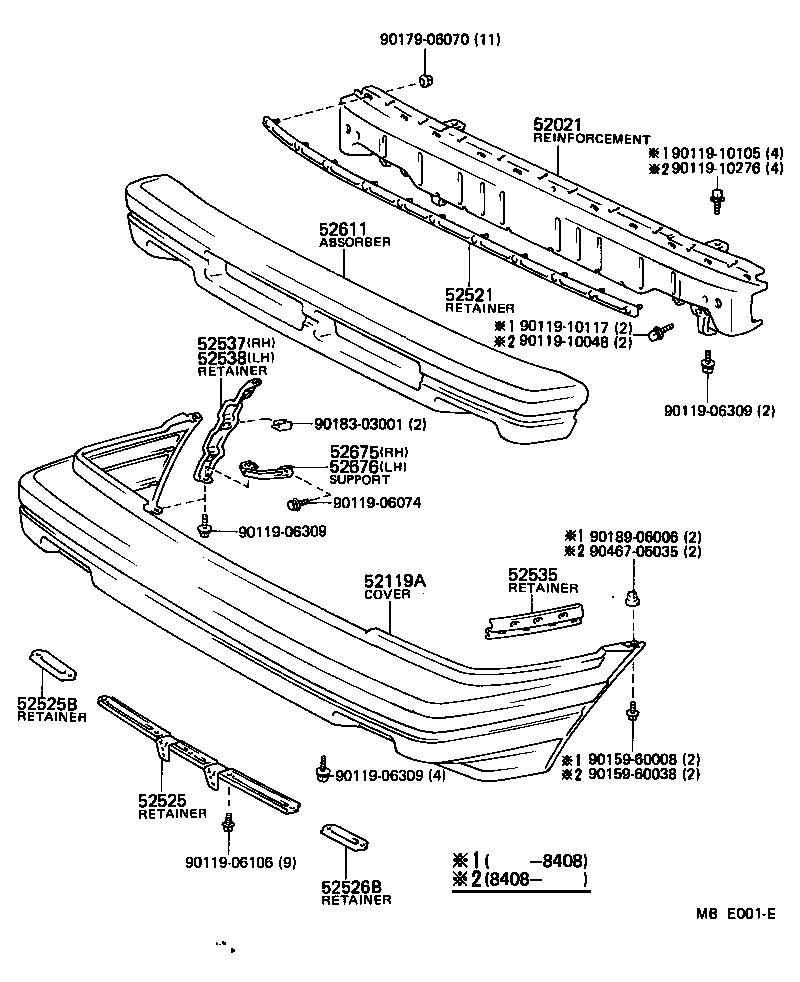

Click highlighted areas on diagram

diagram 52021 52119A 52521 52525 52525B 52526B 52535 52537 52538 52611 52675 52676 9011906074 9011906106 9011906309 9011906309 9011906309 9011910048 9011910105 9011910117 9011910276 9015960008 9015960038 9017906070 9018303001 9018906006 9046705035
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-16030

AL21

 1
52119A - COVER, FRONT BUMPER
52119-16050

AL21

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-16020

AL2#

 1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52506-16010

AL2#

 1
52525B - RETAINER, FRONT BUMPER, LOWER SIDE RH
52526-16020

AL2#

 1
52526B - RETAINER, FRONT BUMPER, LOWER SIDE LH
52526-16020

AL2#

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-16020

AL21

 2
52537 - RETAINER, FRONT BUMPER END, RH
52537-16020

AL21

 1
52538 - RETAINER, FRONT BUMPER END, LH
52538-16020

AL21

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-16030

AL2#

 1
52675 - SUPPORT, FRONT BUMPER LOWER SIDE, RH
52675-16010

AL2#

 1
52676 - SUPPORT, FRONT BUMPER LOWER SIDE, LH
52676-16010

AL2#

 1
Common parts
90119-06074
90119-06106
90119-06309
90119-10048
90119-10105
90119-10117
90119-10276
90159-60008
90159-60038
90179-06070
90183-03001
90189-06006
90467-05035
