AL21L-ZGKRCK (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3AC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

Click highlighted areas on diagram

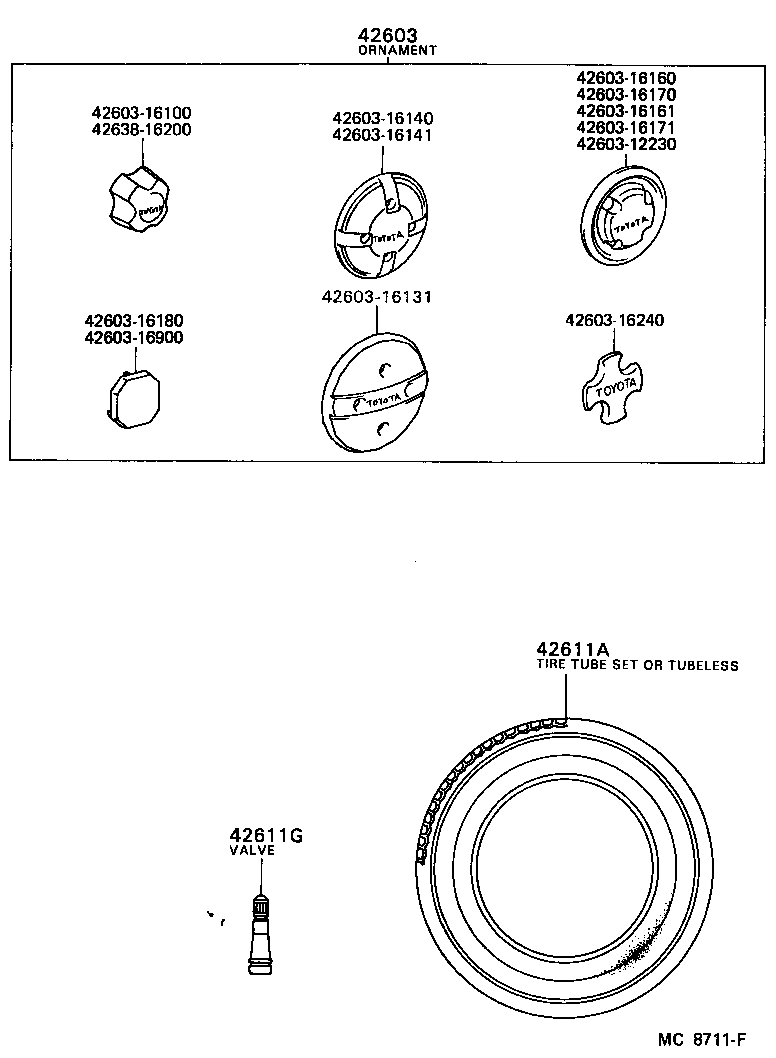

diagram 42603 4260312230 4260316100 4260316131 4260316140 4260316141 4260316160 4260316161 4260316170 4260316171 4260316180 4260316240 4260316900 42611A 42611G 4263816200
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42638-16200

AL21..DLX,STD

 4
42603-16100

AL21..DLX,STD

 4
42603-12230

AL21..STD..3A

*STE,86 CAMPAIGN

 4
42611A - TIRE TUBE SET OR TUBELESS TIRE
42652-12370

AL21

T115/70D14

 1
42652-16080

AL21..STD

145SR13

 4
42652-16170

AL25..DLX;AL21..(3FC,5F)..USA;AL21..(DLX,STD)..CND

155SR13

 4
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

AL2#

 5
Common parts
42603-12230
42603-16100
42603-16131
42603-16140
42603-16141
42603-16160
42603-16161
42603-16170
42603-16171
42603-16180
42603-16240
42603-16900
42638-16200

(8208- )

Click highlighted areas on diagram

diagram 42601 42601 42601C 42601C 42601D 42601D 42618
Part # Description Qty Price
42601 - WHEEL, DISC
42611-16220

AL21

14X4T,SPARE,4T-14

 1
42611-16110

AL21..DLX,STD

4.5J-13,TYPE A

 4
42601 - WHEEL, DISC
42611-16220

AL21

14X4T,SPARE,4T-14

 1
42611-16110

AL21..DLX,STD

4.5J-13,TYPE A

 4
42601C - NUT, HUB (FOR AXLE)
90942-01007

AL21..STD..3A

86 CAMPAIGN

 16
90942-01027

AL21;AL25..DLX

BLACK

 16
42601C - NUT, HUB (FOR AXLE)
90942-01007

AL21..STD..3A

86 CAMPAIGN

 16
90942-01027

AL21;AL25..DLX

BLACK

 16
42601D - WEIGHT, BALANCE (FOR DISC WHEEL)
90942-03017

AL2#

20G,T=8,20G

 1
90942-03020

AL2#

30G,T=10,30G

 1
90942-03022

AL2#

40G,T=9.5,40G

 1
90942-03025

AL2#

50G,T=9.5,50G

 1
90942-03029

AL2#

70G,T=9.5,70G

 1
90942-03099

AL2#

25G,25G

 1
90942-03041

AL2#

10G,T=7.5,10G

 1
90942-03101

AL2#

45G,45G

 1
90942-03031

AL2#

80G,T=9.5,80G

 1
90942-03102

AL2#

55G,55G

 1
90942-03100

AL2#

35G,35G

 1
90942-03098

AL2#

15G,15G

 1
90942-03108

AL2#

65G,65G

 1
90942-03027

AL2#

60G,T=9.5,60G

 1
90942-03109

AL2#

75G,75G

 1
42601D - WEIGHT, BALANCE (FOR DISC WHEEL)
90942-03017

AL2#

20G,T=8,20G

 1
90942-03020

AL2#

30G,T=10,30G

 1
90942-03022

AL2#

40G,T=9.5,40G

 1
90942-03025

AL2#

50G,T=9.5,50G

 1
90942-03029

AL2#

70G,T=9.5,70G

 1
90942-03099

AL2#

25G,25G

 1
90942-03041

AL2#

10G,T=7.5,10G

 1
90942-03101

AL2#

45G,45G

 1
90942-03031

AL2#

80G,T=9.5,80G

 1
90942-03102

AL2#

55G,55G

 1
90942-03100

AL2#

35G,35G

 1
90942-03098

AL2#

15G,15G

 1
90942-03108

AL2#

65G,65G

 1
90942-03027

AL2#

60G,T=9.5,60G

 1
90942-03109

AL2#

75G,75G

 1
