AL21L-ZGKRCK (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3AC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )MTM

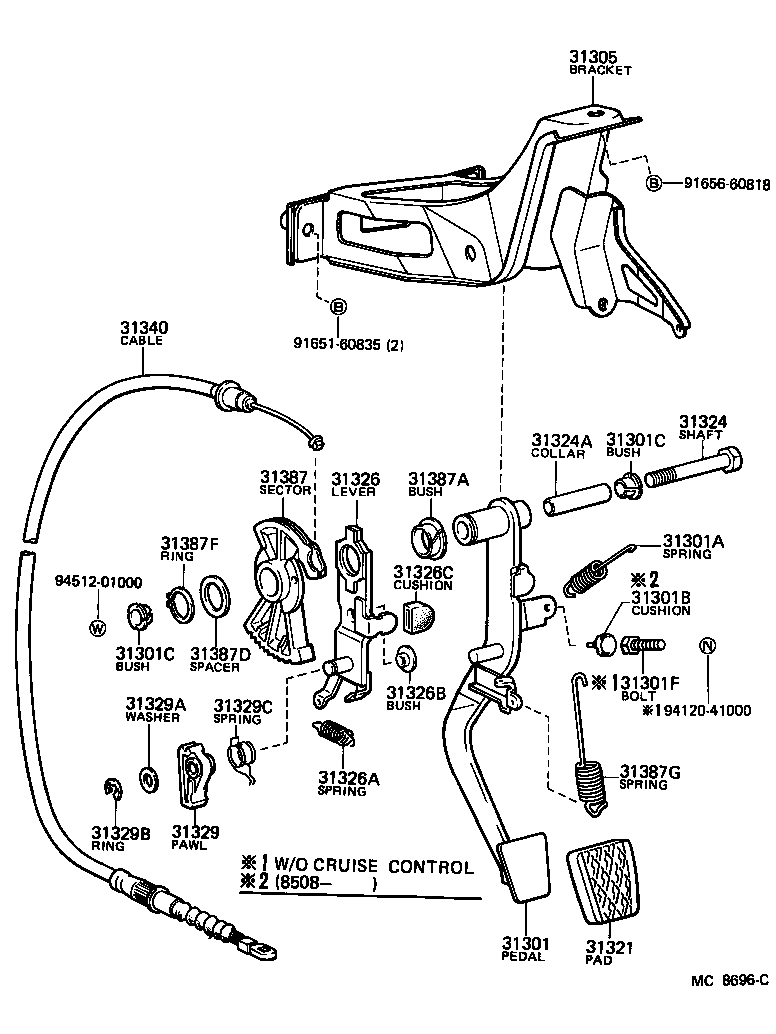

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31305 31321 31324 31324A 31326 31326A 31326B 31326C 31329 31329A 31329B 31329C 31340 31387 31387A 31387D 31387F 31387G 9165160835 9165660818 9412041000 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-16050

AL2#..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-14040

AL2#..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

AL2#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

AL2#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-08052

AL2#..MTM

*8-1.25PX32-29.5

 1
31305 - BRACKET SUB-ASSY, CLUTCH PEDAL
55107-16011

AL2#..MTM

 1
55107-16010

AL2#..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-12030

AL2#..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10084

AL2#..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10043

AL2#..MTM

 1
31326 - LEVER SUB-ASSY, CLUTCH RELEASE
31302-16010

AL2#..MTM

 1
31326A - SPRING(FOR CLUTCH RELEASE LEVER)
90506-10021

AL2#..MTM

 1
31326B - BUSH(FOR CLUTCH RELEASE LEVER)
90386-08123

AL2#..MTM

 1
31326C - CUSHION(FOR CLUTCH RELEASE LEVER)
47131-10030

AL2#..MTM

 1
31329 - PAWL, CLUTCH PEDAL
31329-10010

AL2#..MTM

 1
31329A - WASHER(FOR CLUTCH PEDAL PAWL)
90201-10292

AL2#..MTM

 1
31329B - RING, E(FOR CLUTCH PEDAL PAWL)
96160-00900

AL2#..MTM

 1
31329C - SPRING(FOR CLUTCH PEDAL PAWL)
90508-08009

AL2#..MTM

 1
31340 - CABLE ASSY, CLUTCH RELEASE
31340-16110

AL2#..MTM

 1
31387 - SECTOR, CLUTCH RELEASE
31387-16010

AL2#..MTM

 1
31387A - BUSH(FOR CLUTCH RELEASE SECTOR)
90389-23001

AL2#..MTM

 1
31387D - SPACER(FOR CLUTCH RELEASE SECTOR)
90560-23004

AL2#..MTM

 1
31387F - RING, SNAP
96150-02200

AL2#..MTM

 1
31387G - SPRING, TENSION(FOR CLUTCH RELEASE SECTOR)
90506-23015

AL2#..MTM

 1
Common parts
91651-60835
91656-60818
94120-41000
94512-01000
