AL21L-ZGKRCK (1982)
Toyota Tercel
Production
Aug 1982
-
Aug 1986
Engine
3AC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8208- )MTM

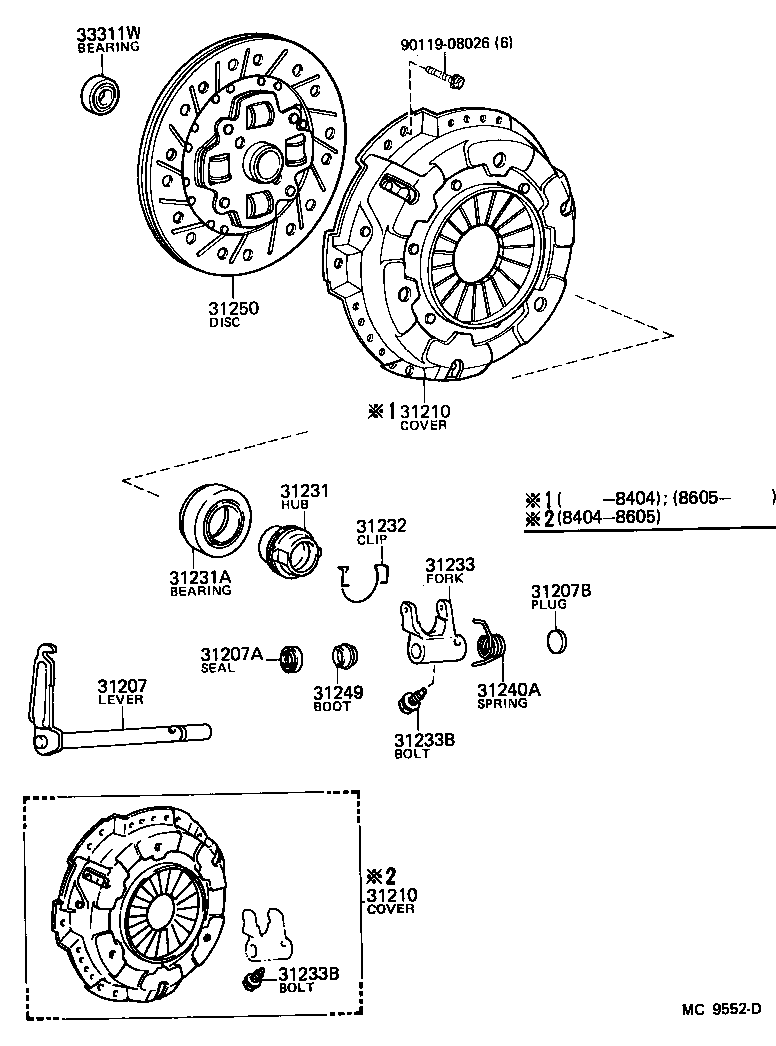

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31207 - LEVER SUB-ASSY, CLUTCH RELEASE FORK | ||||
| 31207-16040 |
AL2#..MTM |
1 | ||
| 31207A - SEAL, OIL(FOR CLUTCH RELEASE FORK LEVER) | ||||
| 90313-18001 |
AL2#..MTM |
1 | ||
| 31207B - PLUG(FOR CLUTCH RELEASE FORK LEVER) | ||||
| 96411-12500 |
AL2#..MTM |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-16040 |
AL2#..MTM..CND |
1 | ||
| 31210-16040 |
AL2#..MTM |
1 | ||
| 31210-19015 |
AL2#..MTM |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-16040 |
AL2#..MTM..CND |
1 | ||
| 31210-16040 |
AL2#..MTM |
1 | ||
| 31210-19015 |
AL2#..MTM |
1 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-16030 |
AL2#..MTM |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-40022 |
AL2#..MTM |
1 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 31232-16020 |
AL2#..MTM |
1 | ||
| 31233 - FORK, CLUTCH RELEASE | ||||
| 31233-16011 |
AL2#..MTM |
1 | ||
| 31233B - BOLT(FOR RELEASE FORK & RELEASE LEVER SETTING) | ||||
| 90109-10026 |
AL2#..MTM |
1 | ||
| 31233B - BOLT(FOR RELEASE FORK & RELEASE LEVER SETTING) | ||||
| 90109-10026 |
AL2#..MTM |
1 | ||
| 31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN) | ||||
| 90508-32004 |
AL2#..MTM |
1 | ||
| 31249 - BOOT, CLUTCH RELEASE FORK SHAFT | ||||
| 31249-16010 |
AL2#..MTM |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-16020 |
AL21..MTM |
1 | ||
| 31250-16031 |
AL21..SED..MTM |
1 | ||
| 31250-16030 |
AL21..MTM |
1 | ||
| 31250-16030 |
AL21..SED..MTM |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 90363-12003 |
AL2#..MTM |
1 | ||
| Common parts | ||||
| 90119-08026 | ||||
