AL21L-ZGKRCK (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3AC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

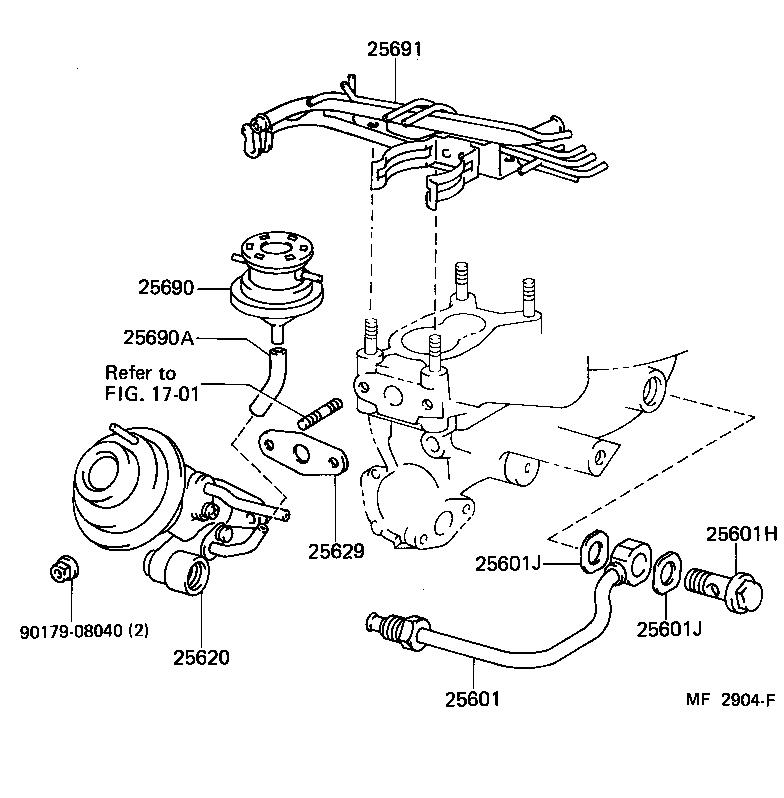

Click highlighted areas on diagram

diagram 1701 25601 25601H 25601J 25601J 25620 25629 25690 25690A 25691 9017908040
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-15020

3A#..AL2#

 1
25601H - BOLT, UNION(FOR EGR PIPE,NO.1)
90401-20003

3A#..AL2#

 1
25601J - GASKET(FOR EGR PIPE, NO.1)
90430-20005

3A#..AL2#

 2
25601J - GASKET(FOR EGR PIPE, NO.1)
90430-20005

3A#..AL2#

 2
25620 - VALVE ASSY, EGR
25620-15040

3AC..AL21..USA;3AC..AL25..6F..USA;3AC..AL21..STD..CND

 1
25620-15090

3A..AL21..MTM;3AC..AL2#..WG..MTM..CND

 1
25629 - GASKET, EGR VALVE ADAPTER
25629-15011

3A#..AL2#

 1
25690 - MODULATOR ASSY, EGR VACUUM
25870-15130

3A..AL21

 1
25690-15020

3AC..AL21..STD..CND

 1
25690-15030

3AC..AL2#..MTM..USA;3AC..AL21..STD..CND

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90445-11041

3A#..AL2#

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-15100

3AC..AL21;3AC..AL25..USA

 1
25691-16040

3AC..AL21..SED

 1
25691-15110

3A..AL21;3AC..AL2#..WG..MTM..CND

 1
Common parts
90179-08040
Linked diagrams
1701
