AL21L-ZGKRCK (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3AC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

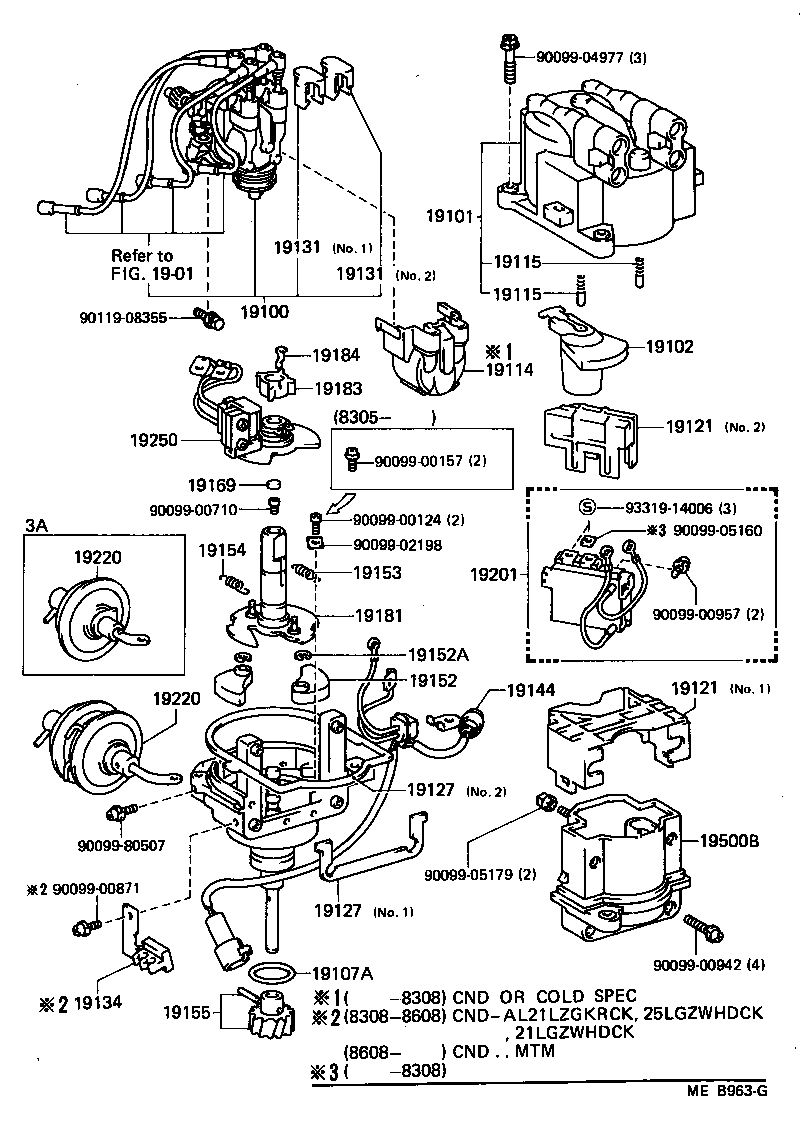

Click highlighted areas on diagram

diagram 1901 19100 19101 19102 19107A 19114 19115 19115 19121 19121 19127 19127 19131 19131 19134 19144 19152 19152A 19153 19154 19155 19169 19181 19183 19184 19201 19220 19220 19250 19500B 9009900124 9009900157 9009900710 9009900871 9009900942 9009900957 9009902198 9009904977 9009905160 9009905179 9009980507 9011908355 9331914006
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19030-15030

3A..AL21

 1
19030-15060

3AC..AL21..SED

 1
19030-15020

3AC..AL21;3AC..AL25..USA

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-15090

3A#..AL2#

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-63010

3A#..AL2#

 1
19107A - RING, O, DISTRIBUTOR HOUSING
96710-04030

3A#..AL2#

 1
19114 - COVER, WATER PROOF(FOR DISTRIBUTOR)
19114-15020

3A#..AL2#..CND

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

3A#..AL2#

 2
19115-63010

3A#..AL2#

 2
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

3A#..AL2#

 2
19115-63010

3A#..AL2#

 2
19121 - COVER, DUST PROOF
19121-15090

3A#..AL2#

NO.2

 1
19121-63020

3A#..AL2#

NO.1

 1
19121 - COVER, DUST PROOF
19121-15090

3A#..AL2#

NO.2

 1
19121-63020

3A#..AL2#

NO.1

 1
19127 - PACKING, DUST PROOF
19127-63020

3A#..AL2#

NO.1

 1
19127-15090

3A#..AL2#

NO.2

 1
19127 - PACKING, DUST PROOF
19127-63020

3A#..AL2#

NO.1

 1
19127-15090

3A#..AL2#

NO.2

 1
19131 - HOLDER, CORD
19131-15020

3A#..AL2#

NO.2

 1
19131-15010

3A#..AL2#

NO.1

 1
19131 - HOLDER, CORD
19131-15020

3A#..AL2#

NO.2

 1
19131-15010

3A#..AL2#

NO.1

 1
19134 - CLAMP ASSY, DISTRIBUTOR
19134-16010

3A..AL21;3AC..AL2#..WG..MTM..CND

 1
19134-16010

3A#..AL2#

 1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-16010

3A#..AL2#

 1
19152 - WEIGHT, GOVERNOR
19152-44170

3A#..AL2#

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07109

3A#..AL2#

 2
19153 - SPRING, GOVERNOR, A
19153-15110

3AC..AL21;3AC..AL25..USA

 1
19153-15220

3AC..AL21;3AC..AL25..USA

 1
19153-15090

3A..AL21;3AC..AL25..CND

 1
19153-15200

3AC..AL21..SED

 1
19153-15210

3A..AL21;3AC..AL2#..WG..MTM..CND

 1
19154 - SPRING, GOVERNOR, B
19154-15210

3A..AL21;3AC..AL2#..WG..MTM..CND

 1
19154-15200

3AC..AL21..SED

 1
19154-15110

3AC..AL21;3AC..AL25..USA

 1
19154-15220

3AC..AL21;3AC..AL25..USA

 1
19154-15090

3A..AL21;3AC..AL25..CND

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-15021

3A#..AL2#

 1
19169 - STOPPER, CAM GREASE
19169-32010

3A#..AL2#

 1
19181 - ROTOR, DISTRIBUTOR, SIGNAL
19181-15090

3A..AL21;3AC..AL25..CND

 1
19181-15130

3A..AL21

 1
19181-15200

3AC..AL21..SED

 1
19181-15150

3AC..AL21;3AC..AL25..USA

 1
19181-14100

3AC..AL21;3AC..AL25..USA

 1
19181-15130

3A..AL21

 1
19181-15090

3A..AL21;3AC..AL25..CND

 1
19183 - ROTOR, SIGNAL
19183-15010

3A..AL21;3AC..AL2#..WG..MTM..CND

 1
19183-63010

3AC..AL21..SED

 1
19184 - SPRING, ROTOR SET
19184-63010

3A#..AL2#

 1
19201 - IGNITER
89620-16070

3A..AL21;3AC..AL2#..WG..MTM..CND

 1
89620-10120

3A..AL21;3AC..AL2#..WG..MTM..CND

 1
89620-16080

3AC..AL21..SED

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-15130

3A..AL21

 1
19220-15110

3AC..AL2#

 1
19220-15200

3AC..AL21..SED

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-15130

3A..AL21

 1
19220-15110

3AC..AL2#

 1
19220-15200

3AC..AL21..SED

 1
19250 - GENERATOR ASSY, SIGNAL
19251-15090

3A#..AL2#

 1
19500B - COIL ASSY, IGNITION
90919-02135

3AC..AL21..SED

 1
90919-02139

3A..AL21;3AC..AL2#..WG..MTM..CND

 1
Common parts
90099-00124
90099-00157
90099-00710
90099-00871
90099-00942
90099-00957
90099-02198
90099-04977
90099-05160
90099-05179
90099-80507
90119-08355
93319-14006
Linked diagrams
1901
