AL21L-ZGKRCK (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3AC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

Click highlighted areas on diagram

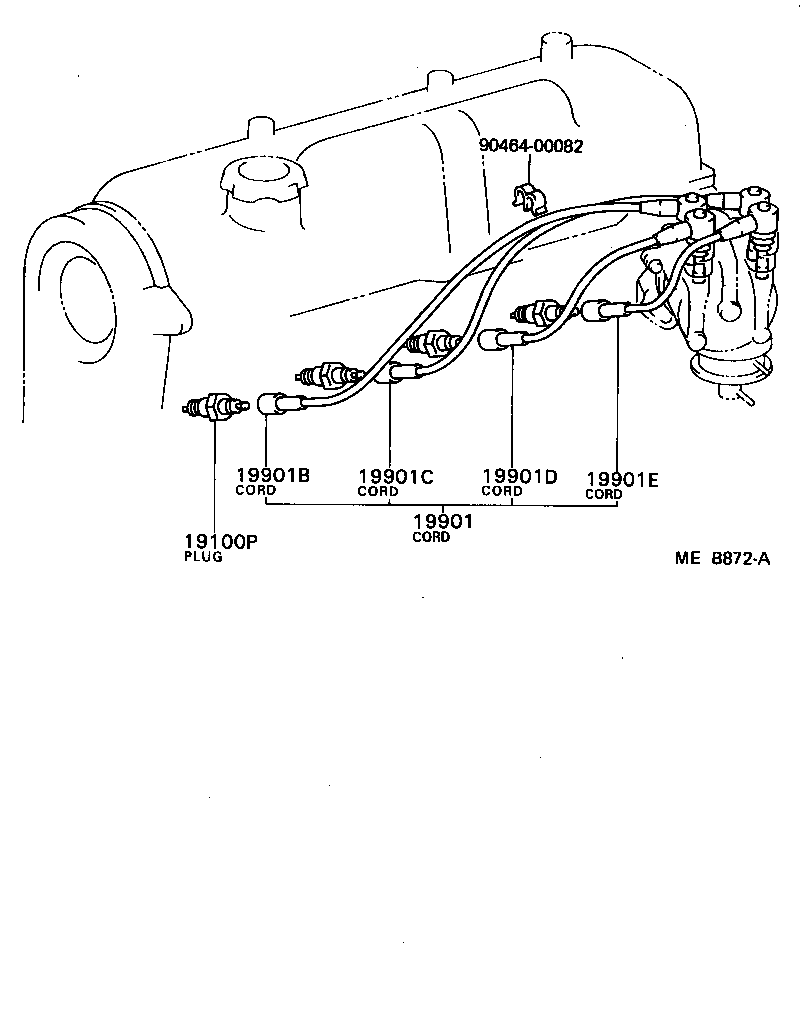

diagram 19100P 19901 19901B 19901C 19901D 19901E 9046400082
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01091

3AC..AL21..SED

W16EXR-U11,W16EXR-U11

 4
90919-01064

3A..AL21;3AC..AL2#..WG..MTM..CND

W16EXR-U,W16EXR-U

 4
90919-01091

3AC..AL21..USA;3AC..AL25..3FC;3AC..AL25..6F..USA;3AC..AL21..(3FC,4F)..CND

W16EXR-U11,W16EXR-U11

 4
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22133

3A#..AL2#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12473

3A#..AL2#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12474

3A#..AL2#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12475

3A#..AL2#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12476

3A#..AL2#

 1
Common parts
90464-00082
