AL21L-ZGKRCK (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3AC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

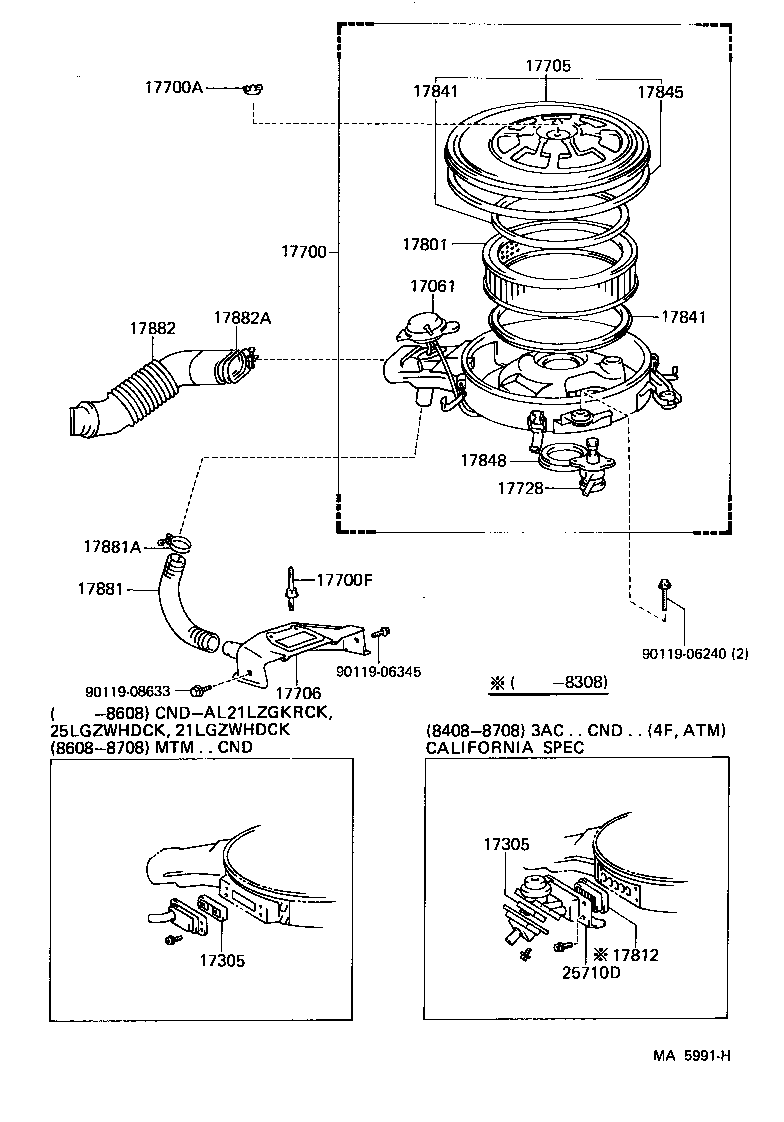

Click highlighted areas on diagram

diagram 17061 17305 17305 17700 17700A 17700F 17705 17706 17728 17801 17812 17841 17841 17845 17848 17881 17881A 17882 17882A 25710D 9011906240 9011906345 9011908633
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-15020

3A#..AL2#

 1
17305 - VALVE SUB-ASSY, REED
17305-15010

3A..AL21;3AC..AL2#..WG..MTM..CND

 1
17305 - VALVE SUB-ASSY, REED
17305-15010

3A..AL21;3AC..AL2#..WG..MTM..CND

 1
17700 - CLEANER ASSY, AIR
17700-15110

3AC..AL21;3AC..AL25..USA

 1
17700-15130

3A..AL21;3AC..AL2#..WG..MTM..CND

 1
17700-15111

3AC..AL21..USA;3AC..AL25..3FC;3AC..AL25..6F..USA;3AC..AL21..STD..CND

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06005

3A#..AL2#

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06019

3A#..AL2#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-14010

3A#..AL2#

 1
17706 - INLET SUB-ASSY, AIR CLEANER, NO.2
17902-15060

3A#..AL2#

 1
17728 - VALVE, THERMOSTATIC
17728-15020

3A#..AL2#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-15010

3A#..AL2#

 1
17841 - GASKET, FILTER ELEMENT
17841-15010

3A#..AL2#

 2
17841 - GASKET, FILTER ELEMENT
17841-15010

3A#..AL2#

 2
17845 - GASKET, AIR CLEANER CAP
17845-14010

3A#..AL2#

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-63001

3A#..AL2#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-63010

3A#..AL2#

 1
17881-74040

3A#..AL2#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10460

3A#..AL2#

 1
17882 - HOSE, AIR CLEANER, NO.2
17881-15050

3A#..AL2#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-01005

3A#..AL2#

 1
Common parts
90119-06240
90119-06345
90119-08633
