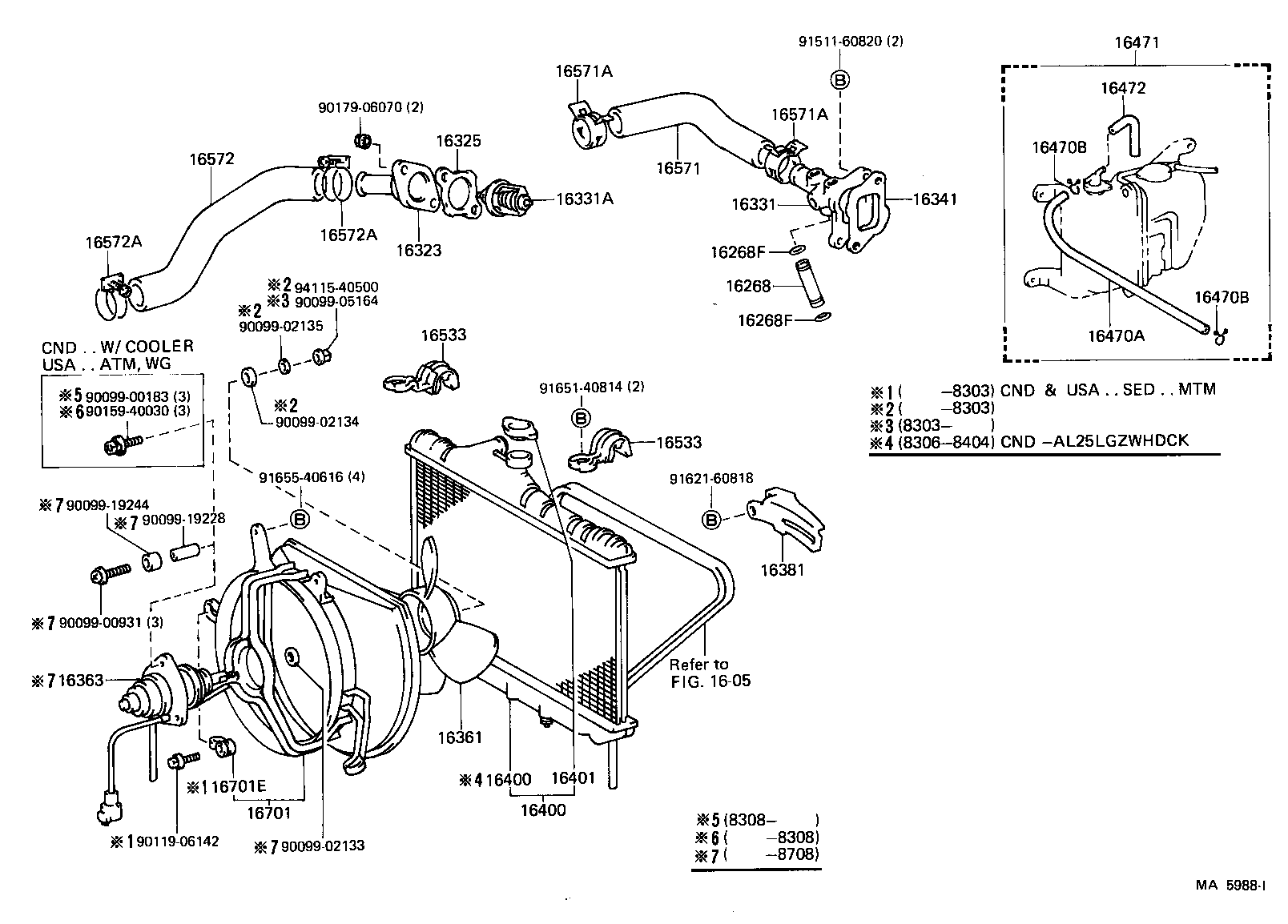

AL21L-ZGKRCK (1982)
Toyota Tercel
(8208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-15010 |
3A#..AL2# |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96711-24013 |
3A#..AL2# |
2 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96711-24013 |
3A#..AL2# |
2 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-15020 |
3A#..AL2# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-70021 |
3A#..AL2# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-15040 |
3AC..AL21..USA;3AC..AL21..STD..CND |
1 | ||
| 16331-15050 |
3A..AL21;3AC..AL2#..WG..MTM..CND |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
3A#..AL2# *WAX 82-95,*WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-15011 |
3A#..AL2# |
1 | ||
| 16361 - FAN | ||||
| 16361-15030 |
3A#..AL2#..CND |
1 | ||
| 16361-15031 |
3A#..AL21..CND;3AC..AL25..6F..CND |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-15070 |
3A#..AL21..CND;3AC..AL25..6F..CND |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-15030 |
3A#..AL2# |
1 | ||
| 88437-16030 |
3AC..AL21..CND;3A#..AL2#..(3FC,5F,6F)..CND W/COOLER |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-15140 |
3A#..AL2#..MTM..CND |
1 | ||
| 16410-15270 |
3A#..AL2#..MTM..CND |
1 | ||
| 16400-15140 |
3A#..AL2#..MTM..CND |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-15140 |
3A#..AL2#..MTM..CND |
1 | ||
| 16410-15270 |
3A#..AL2#..MTM..CND |
1 | ||
| 16400-15140 |
3A#..AL2#..MTM..CND |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
3A#..AL2# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90099-33392 |
3AC..AL21..STD..CND W/RR WIPER |
1 | ||
| 90099-33392 |
3A..AL21;3AC..AL2#..WG..CND |
1 | ||
| 90445-12043 |
3AC..AL2#..USA;3AC..AL21..STD..CND *H,L=360 |
1 | ||
| 90099-33091 |
3AC..AL21..STD..CND W/RR WIPER |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3A#..AL2# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3A#..AL2# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-15020 |
3A..AL21;3AC..AL2#..WG..CND |
1 | ||
| 16405-15010 |
3AC..AL2#..USA;3AC..AL21..STD..CND |
1 | ||
| 16405-15020 |
3AC..AL21..STD..CND W/RR WIPER |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-16020 |
3A#..AL2# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-15010 |
3A#..AL2# RH |
1 | ||
| 16506-15010 |
3A#..AL2# LH |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-15010 |
3A#..AL2# RH |
1 | ||
| 16506-15010 |
3A#..AL2# LH |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-15081 |
3A#..AL2# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
3A#..AL2# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
3A#..AL2# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-15120 |
3A#..AL2# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10400 |
3A#..AL2# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10400 |
3A#..AL2# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-15081 |
3A#..AL21..CND;3AC..AL25..6F..CND |
1 | ||
| 16711-15080 |
3A#..AL2#..CND |
1 | ||
| 16701E - BUSH(FOR FAN SHROUD) | ||||
| 90385-12001 |
3AC..AL21..MTM |
1 | ||
| Common parts | ||||
| 90099-00183 | ||||
| 90099-00931 | ||||
| 90099-02133 | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 90099-05164 | ||||
| 90099-19228 | ||||
| 90099-19244 | ||||
| 90119-06142 | ||||
| 90159-40030 | ||||
| 90179-06070 | ||||
| 91511-60820 | ||||
| 91621-60818 | ||||
| 91651-40814 | ||||
| 91655-40616 | ||||
| 94115-40500 | ||||
| Linked diagrams | ||||
| 1605 | ||||

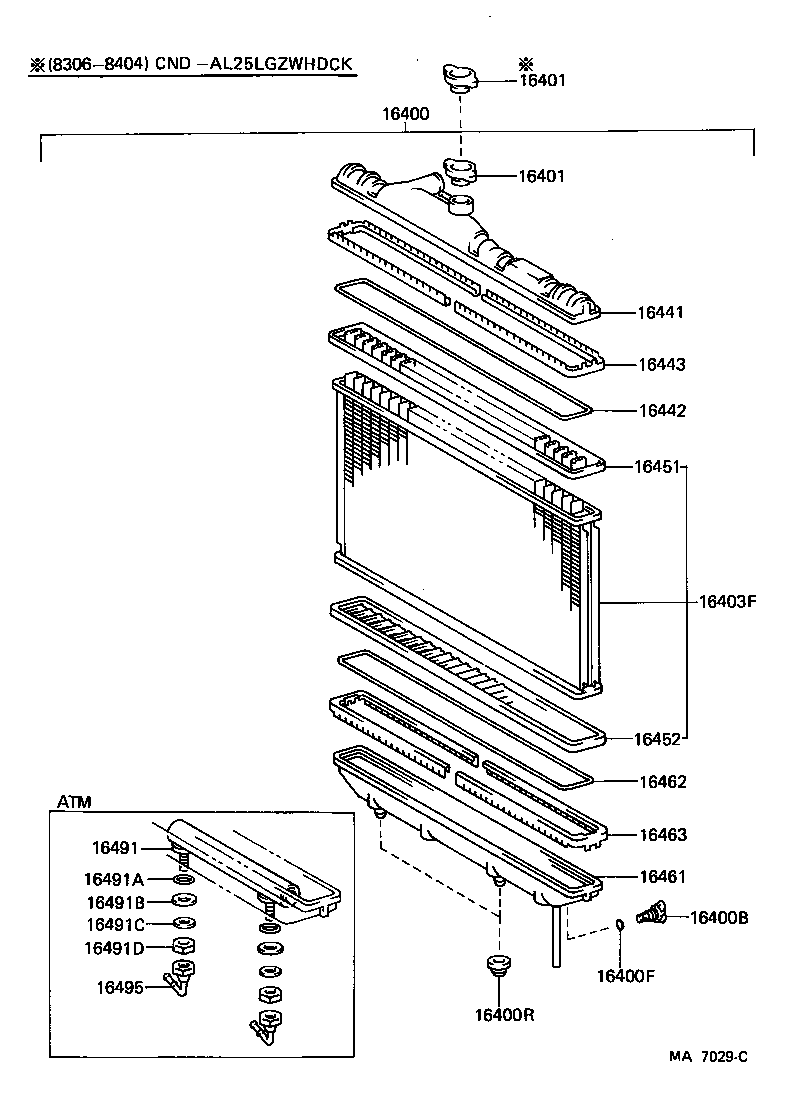

(8208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16410-15140 |
3A#..AL2#..MTM..CND |
1 | ||
| 16410-15270 |
3A#..AL2#..MTM..CND |
1 | ||
| 16400-15140 |
3A#..AL2#..MTM..CND |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
3A#..AL2# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
3A#..AL2# |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16464-15120 |
3A#..AL2# |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
3A#..AL2# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
3A#..AL2# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-15140 |
3A..AL21;3AC..AL2#..MTM..CND |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-15120 |
3A#..AL2# |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-31300 |
3A#..AL2# |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-15271 |
3A#..AL2#..CND |
2 | ||
| 16443-15120 |
3A#..AL2# |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-15120 |
3A#..AL2# |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-15120 |
3A#..AL2# |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-15120 |
3A#..AL2#..MTM |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-15120 |
3A#..AL2# |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-15270 |
3A#..AL2#..CND |
2 | ||
| 16463-15120 |
3A#..AL2# |
2 | ||
