AL21L-ZGKRCK (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3AC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

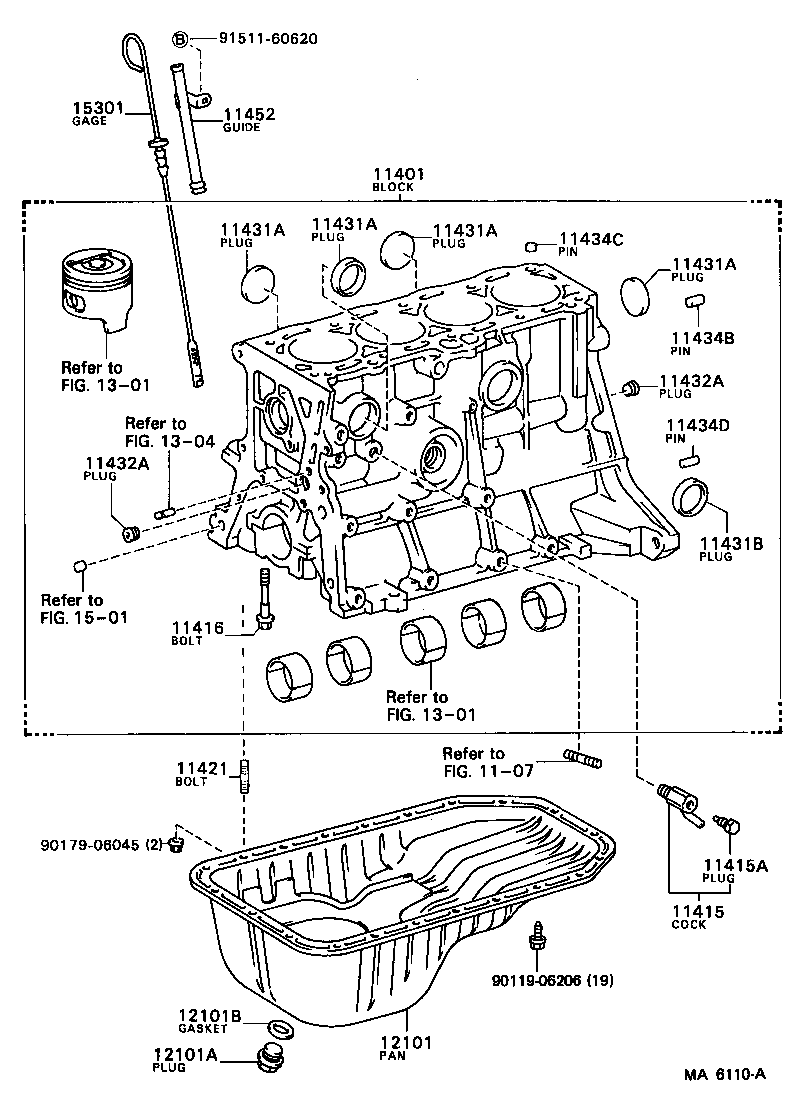

Click highlighted areas on diagram

diagram 1107 11401 11415 11415A 11416 11421 11431A 11431A 11431A 11431A 11431B 11432A 11432A 11434B 11434C 11434D 11452 12101 12101A 12101B 1301 1301 1304 1501 15301 9011906206 9017906045 9151160620
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-19127

3A#..AL2#

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09079

3A#..AL2#

 1
90910-09075

3A#..AL2#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90109-10023

3A#..AL2#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90105-10007

3A#..AL2#

*10-1.25PX61-18

 10
11421 - BOLT, STUD(FOR OIL PAN)
90116-06022

3A#..AL2#

 2
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

3A#..AL2#

OD=35

 4
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

3A#..AL2#

OD=35

 4
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

3A#..AL2#

OD=35

 4
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

3A#..AL2#

OD=35

 4
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-44000

3A#..AL2#

OD=40

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-53008

3A#..AL2#

 2
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-53008

3A#..AL2#

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

3A#..AL2#

L=22,OD=10

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-13017

3A#..AL2#

L=12,OD=13

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003

3A#..AL2#

L=14,OD=6

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-15010

3A#..AL2#

 1
12101 - PAN SUB-ASSY, OIL
12101-15030

3A#..AL2#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

3A#..AL2#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

3A#..AL2#

 1
90430-12011

3A#..AL2#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-15010

3A#..AL2#

 1
Common parts
90119-06206
90179-06045
91511-60620
Linked diagrams
1107
1301
1304
1501
