AL21L-ZGKRCA (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3AC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

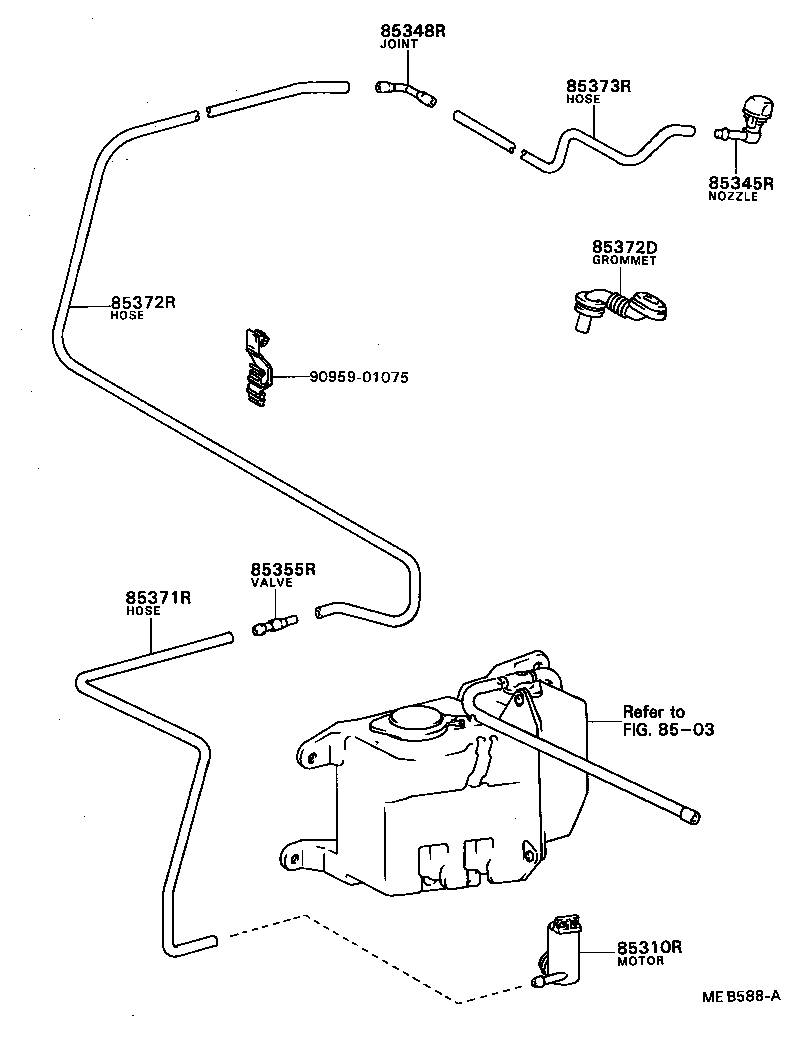

Click highlighted areas on diagram

diagram 8503 85310R 85345R 85348R 85355R 85371R 85372D 85372R 85373R 9095901075
Part # Description Qty Price
85310R - MOTOR ASSY, REAR WASHER
85310-16040

AL2#

 1
85345R - NOZZLE, REAR WASHER
85035-16040

AL21

 1
85341-16080

AL21..SED

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85355-20080

AL2#

 1
85355R - VALVE, REAR WASHER HOSE
85031-14080

AL2#

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33299

AL21..3A;AL2#..(3FC,5F,6F)..3AC

*H,L=400,COLD SPEC

 1
90446-06013

AL2#..USA;AL21..STD..CND..3AC

L=450

 1
85372D - GROMMET, REAR WASHER HOSE
85372-14020

AL2#

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33053

AL21..SED

L=3120

 1
90099-33391

AL21..SED

L=3200

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299

AL2#

*H,L=400

 1
Common parts
90959-01075
Linked diagrams
8503
