AL21L-ZGKRCA (1982)
Toyota Tercel
Production
Aug 1982
-
Aug 1986
Engine
3AC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8208-8608)SED

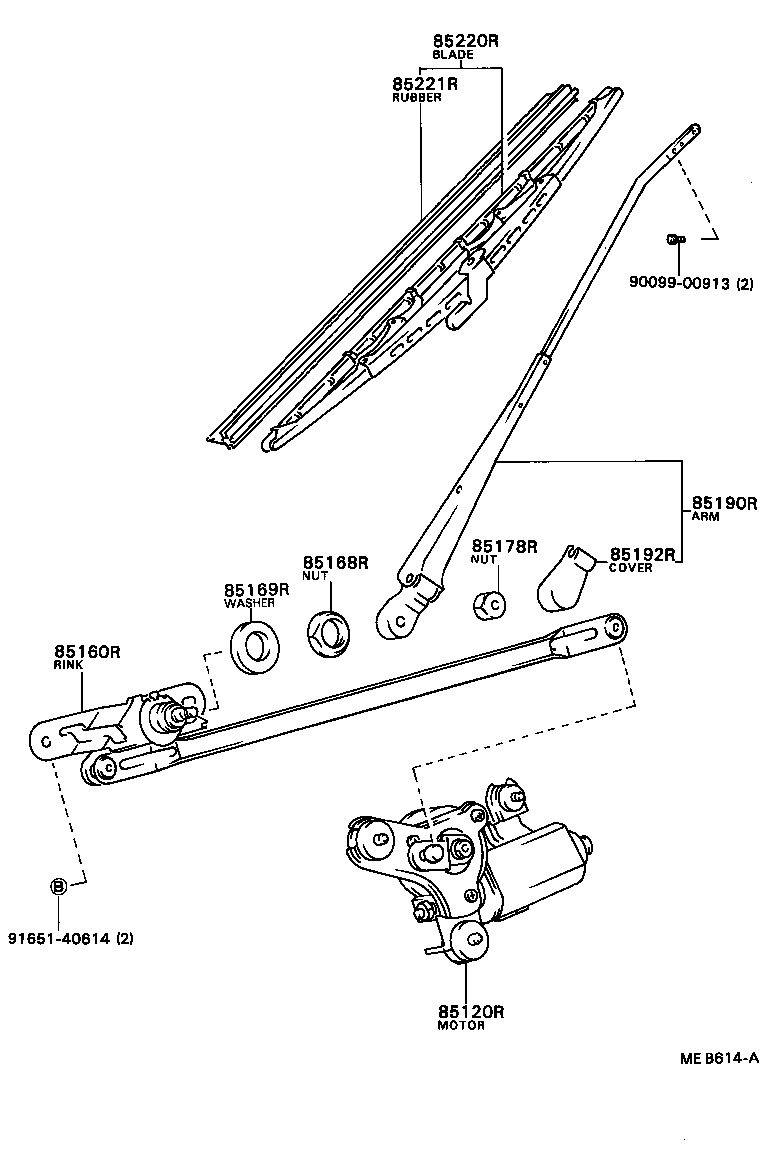

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85120R - MOTOR AND BRACKET ASSY, REAR WIPER | ||||
| 85120-16140 |
AL21..SED |
1 | ||
| 85120-16170 |
AL21..SED |
1 | ||
| 85160R - LINK ASSY, REAR WIPER | ||||
| 85160-16150 |
AL21..SED |
1 | ||
| 85168R - NUT, REAR WIPER LINK PIVOT, NO.1 | ||||
| 90099-05157 |
AL2# |
1 | ||
| 85169R - WASHER, REAR WIPER LINK PIVOT, NO.1 | ||||
| 85179-16150 |
AL2# |
1 | ||
| 85178R - NUT (FOR REAR WIPER ARM SETTING) | ||||
| 90179-06070 |
AL2# |
1 | ||
| 85190R - ARM ASSY, REAR WIPER | ||||
| 85190-16110 |
AL21..SED |
1 | ||
| 85190-16111 |
AL21..SED |
1 | ||
| 85190-16140 |
AL21..SED |
1 | ||
| 85192R - COVER, REAR WIPER ARM | ||||
| 85192-14020 |
AL2# |
1 | ||
| 85192-32010 |
AL21..SED |
1 | ||
| 85220R - BLADE ASSY, REAR WIPER | ||||
| 85220-20380 |
AL21..SED |
1 | ||
| 85220-16440 |
AL21..SED |
1 | ||
| 85221R - BLADE, REAR WIPER | ||||
| 85221-91C01 |
AL21..SED |
1 | ||
| 85221-16080 |
AL21..SED |
1 | ||
| Common parts | ||||
| 90099-00913 | ||||
| 91651-40614 | ||||
