AL21L-ZGKRCA (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3AC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

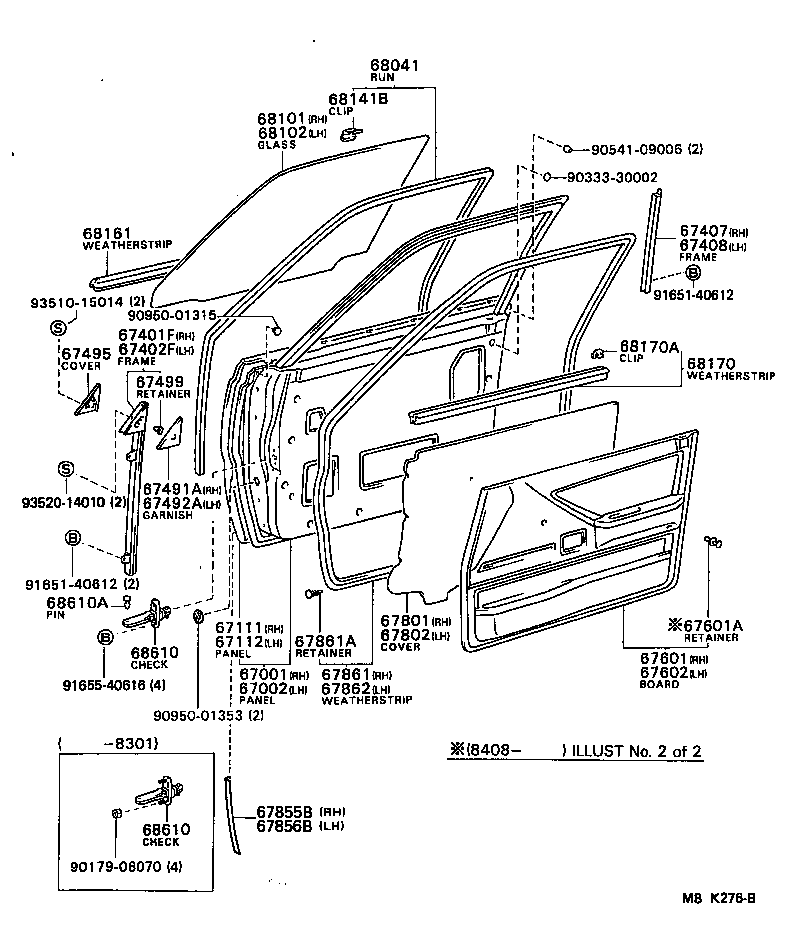

Click highlighted areas on diagram

diagram 67601A
Part # Description Qty Price
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-16020

AL2#

 26

(8208- )

Click highlighted areas on diagram

diagram 67001 67002 67111 67112 67401F 67402F 67407 67408 67491A 67492A 67495 67499 67601 67601A 67602 67801 67802 67855B 67856B 67861 67861A 67862 68041 68101 68102 68141B 68161 68170 68170A 68610 68610 68610A 9017906070 9033330002 9054109006 9095001315 9095001353 9165140612 9165140612 9165540616 9351015014 9352014010
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-16141

AL21..3DS

 1
67001-16140

AL21..3DS

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-16100

AL21..3DS

 1
67002-16101

AL21..3DS

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-16100

AL21..3DS

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-16080

AL21..3DS

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-16090

AL21..3DS

 1
67401-16030

AL21..3DS

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-16030

AL21..3DS

 1
67402-16090

AL21..3DS

 1
67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-16020

AL21..3DS

 1
67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-16020

AL21..3DS

 1
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-16010

AL21..3DS

W/O HOLE

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-16010

AL21..3DS..(DLX,STD)

W/O HOLE

 1
67495 - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER
67495-16010

AL21..3DS

 1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67499-30010

AL2#

 2
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-1637006

AL21..3DS..(DLX,STD)

BROWN,BROWN

 1
67610-1637002

AL21..3DS..(DLX,STD)

DARK WINE,RED/MAROON

 1
67610-1637003

AL21..3DS..(DLX,STD)

GRAY,GRAY

 1
67610-1637012

AL21..3DS..STD

DARK WINE,DARK WINE

 1
67610-1637005

AL21..3DS..STD

BEIGE,BEIGE

 1
67610-1637013

AL21..3DS..STD

GRAY,GRAY

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-16020

AL2#

 26
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1625002

AL21..3DS..(DLX,STD)

DARK WINE,RED/MAROON

 1
67620-1625003

AL21..3DS..(DLX,STD)

GRAY,GRAY

 1
67620-1625006

AL21..3DS..(DLX,STD)

BROWN,BROWN

 1
67620-1625012

AL21..3DS..STD

DARK WINE,DARK WINE

 1
67620-1625013

AL21..3DS..STD

GRAY,GRAY

 1
67620-1625005

AL21..3DS..STD

BEIGE,BEIGE

 1
67801 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH
67831-16060

AL21..3DS

 1
67802 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH
67832-16060

AL21..3DS

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-16090

AL21..3DS

 1
67861-16170

AL21..3DS

 1
67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP)
67868-30040

AL21..3DS

 46
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-16090

AL21..3DS

 1
67862-16170

AL21..3DS

 1
68041 - RUN SUB-ASSY, FRONT DOOR GLASS
68041-16020

AL21..3DS

RH

 1
68042-16020

AL21..3DS

LH

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-16070

AL21..3DS..STD

*TEM,T=3.5

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-16070

AL21..3DS..STD

*TEM,T=3.5

 1
68141B - CLIP, DOOR GLASS RUN
62367-16010

AL2#

 2
68161 - WEATHERSTRIP, FRONT DOOR GLASS, OUTER
68210-16030

AL21..3DS..(DLX,STD)

LH

 1
68160-16040

AL21..3DS..(DLX,STD)

RH

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-16050

AL21..3DS

RH

 1
68220-16040

AL21..3DS

LH

 1
68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68211-10030

AL21..3DS

 14
68610 - CHECK ASSY, FRONT DOOR
68610-16030

AL2#

 2
68610 - CHECK ASSY, FRONT DOOR
68610-16030

AL2#

 2
68610A - PIN(FOR FRONT DOOR CHECK)
68617-12010

AL2#

 2
68617-22010

AL2#

 2
Common parts
90179-06070
90333-30002
90541-09006
90950-01315
90950-01353
91651-40612
91655-40616
93510-15014
93520-14010
