AL21L-ZGKRCA (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3AC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

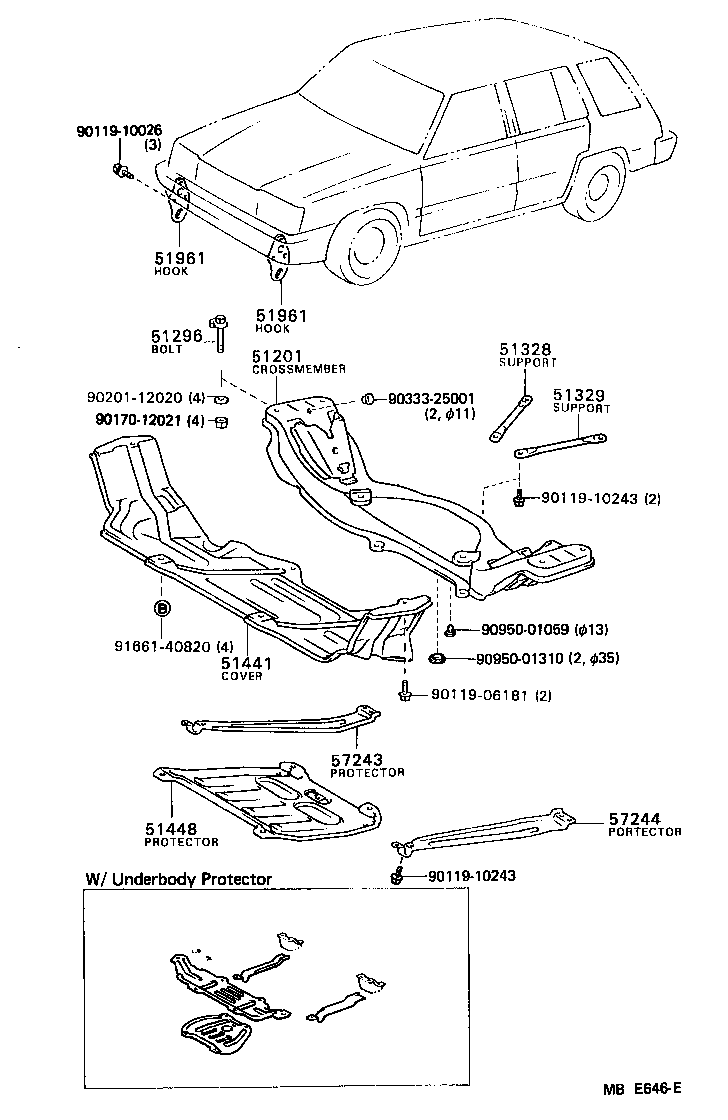

Click highlighted areas on diagram

diagram 51201 51296 51328 51329 51441 51448 51961 51961 57243 57244 9011906181 9011910026 9011910243 9011910243 9017012021 9020112020 9033325001 9095001059 9095001310 9166140820
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-16040

AL21..SED

W/O POWER STEERING

 1
51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING
51296-22020

AL2#

 4
51328 - SUPPORT, FRONT SUSPENSION MEMBER, RH
51328-16010

AL2#

W/O POWER STEERING

 1
51329 - SUPPORT, FRONT SUSPENSION MEMBER, LH
51329-16010

AL2#

W/O POWER STEERING

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-16020

AL2#

RESIN

 1
51961 - HOOK, NO.1
51963-16020

AL2#

 2
51961 - HOOK, NO.1
51963-16020

AL2#

 2
Common parts
90119-06181
90119-10026
90119-10243
90170-12021
90201-12020
90333-25001
90950-01059
90950-01310
91661-40820
