AL21L-ZGKRCA (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3AC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

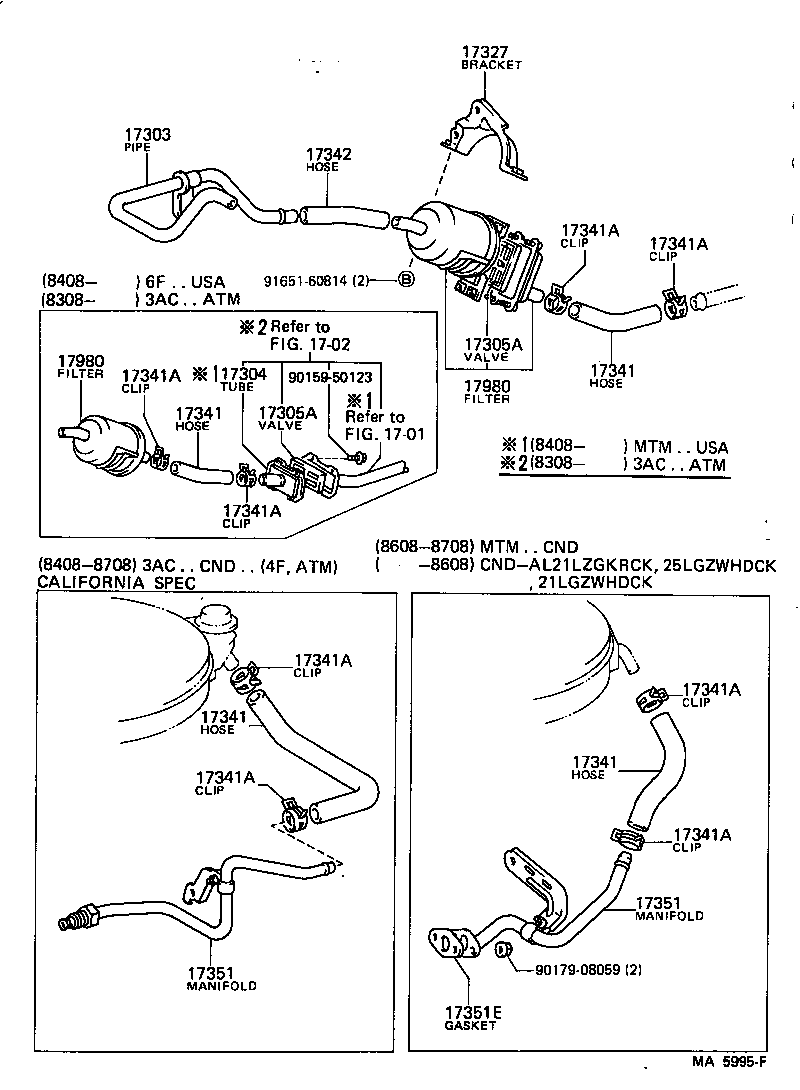

Click highlighted areas on diagram

diagram 1701 1702 17303 17304 17305A 17305A 17327 17341 17341 17341 17341 17341A 17341A 17341A 17341A 17341A 17341A 17341A 17341A 17342 17351 17351 17351E 17980 17980 9015950123 9017908059 9165160814
Part # Description Qty Price
17303 - PIPE SUB-ASSY, AIR
17303-15040

3AC..AL21..USA;3AC..AL25..3FC;3AC..AL25..6F..USA;3AC..AL21..STD..CND

 1
17305A - VALVE SUB-ASSY, REED
17305-15010

3AC..AL21..USA;3AC..AL25..3FC;3AC..AL25..6F..USA;3AC..AL21..STD..CND

 1
17305A - VALVE SUB-ASSY, REED
17305-15010

3AC..AL21..USA;3AC..AL25..3FC;3AC..AL25..6F..USA;3AC..AL21..STD..CND

 1
17327 - BRACKET, REED VALVE
17327-15030

3AC..AL21..USA;3AC..AL25..3FC;3AC..AL25..6F..USA;3AC..AL21..STD..CND

 1
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
90445-31016

3AC..AL2#..MTM..USA;3AC..AL21..STD..CND

 1
90445-31016

3AC..AL21;3AC..AL25..USA

 1
17341-15090

3A..AL21;3AC..AL2#..WG..MTM..CND

 1
17341-15070

3AC..AL2#..USA

CALIFORNIA SPEC

 1
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
90445-31016

3AC..AL2#..MTM..USA;3AC..AL21..STD..CND

 1
90445-31016

3AC..AL21;3AC..AL25..USA

 1
17341-15090

3A..AL21;3AC..AL2#..WG..MTM..CND

 1
17341-15070

3AC..AL2#..USA

CALIFORNIA SPEC

 1
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
90445-31016

3AC..AL2#..MTM..USA;3AC..AL21..STD..CND

 1
90445-31016

3AC..AL21;3AC..AL25..USA

 1
17341-15090

3A..AL21;3AC..AL2#..WG..MTM..CND

 1
17341-15070

3AC..AL2#..USA

CALIFORNIA SPEC

 1
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
90445-31016

3AC..AL2#..MTM..USA;3AC..AL21..STD..CND

 1
90445-31016

3AC..AL21;3AC..AL25..USA

 1
17341-15090

3A..AL21;3AC..AL2#..WG..MTM..CND

 1
17341-15070

3AC..AL2#..USA

CALIFORNIA SPEC

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-28003

3A..AL21;3AC..AL25..6F;3AC..AL21..5F..CND;3AC..AL2#..(3FC,4F,5F)..USA

 2
90467-23003

3AC..AL2#..USA

CALIFORNIA SPEC

 2
90467-28003

3A#..AL2#

 2
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-28003

3A..AL21;3AC..AL25..6F;3AC..AL21..5F..CND;3AC..AL2#..(3FC,4F,5F)..USA

 2
90467-23003

3AC..AL2#..USA

CALIFORNIA SPEC

 2
90467-28003

3A#..AL2#

 2
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-28003

3A..AL21;3AC..AL25..6F;3AC..AL21..5F..CND;3AC..AL2#..(3FC,4F,5F)..USA

 2
90467-23003

3AC..AL2#..USA

CALIFORNIA SPEC

 2
90467-28003

3A#..AL2#

 2
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-28003

3A..AL21;3AC..AL25..6F;3AC..AL21..5F..CND;3AC..AL2#..(3FC,4F,5F)..USA

 2
90467-23003

3AC..AL2#..USA

CALIFORNIA SPEC

 2
90467-28003

3A#..AL2#

 2
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-28003

3A..AL21;3AC..AL25..6F;3AC..AL21..5F..CND;3AC..AL2#..(3FC,4F,5F)..USA

 2
90467-23003

3AC..AL2#..USA

CALIFORNIA SPEC

 2
90467-28003

3A#..AL2#

 2
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-28003

3A..AL21;3AC..AL25..6F;3AC..AL21..5F..CND;3AC..AL2#..(3FC,4F,5F)..USA

 2
90467-23003

3AC..AL2#..USA

CALIFORNIA SPEC

 2
90467-28003

3A#..AL2#

 2
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-28003

3A..AL21;3AC..AL25..6F;3AC..AL21..5F..CND;3AC..AL2#..(3FC,4F,5F)..USA

 2
90467-23003

3AC..AL2#..USA

CALIFORNIA SPEC

 2
90467-28003

3A#..AL2#

 2
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-28003

3A..AL21;3AC..AL25..6F;3AC..AL21..5F..CND;3AC..AL2#..(3FC,4F,5F)..USA

 2
90467-23003

3AC..AL2#..USA

CALIFORNIA SPEC

 2
90467-28003

3A#..AL2#

 2
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
90445-15007

3AC..AL21..USA;3AC..AL25..3FC;3AC..AL25..6F..USA;3AC..AL21..STD..CND

 1
17351 - MANIFOLD, AIR INJECTION
17306-15040

3A..AL21;3AC..AL2#..WG..MTM..CND

 1
17306-15030

3AC..AL2#..USA

CALIFORNIA SPEC

 1
17351 - MANIFOLD, AIR INJECTION
17306-15040

3A..AL21;3AC..AL2#..WG..MTM..CND

 1
17306-15030

3AC..AL2#..USA

CALIFORNIA SPEC

 1
17351E - GASKET(FOR AIR INJECTION MANIFOLD)
89466-30010

3A..AL21;3AC..AL2#..WG..MTM..CND

 1
17980 - FILTER ASSY, AIR SUCTION
17980-15030

3AC..AL21;3AC..AL25..USA

 1
17980-15030

3AC..AL2#..MTM..USA;3AC..AL21..STD..CND

 1
17980 - FILTER ASSY, AIR SUCTION
17980-15030

3AC..AL21;3AC..AL25..USA

 1
17980-15030

3AC..AL2#..MTM..USA;3AC..AL21..STD..CND

 1
Common parts
90159-50123
90179-08059
91651-60814
Linked diagrams
1701
1702
