VZN170L-PRPDKAB (2000)
Toyota Tacoma
Production
Sep 2000
-
Sep 2004
Engine
5VZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0009- )

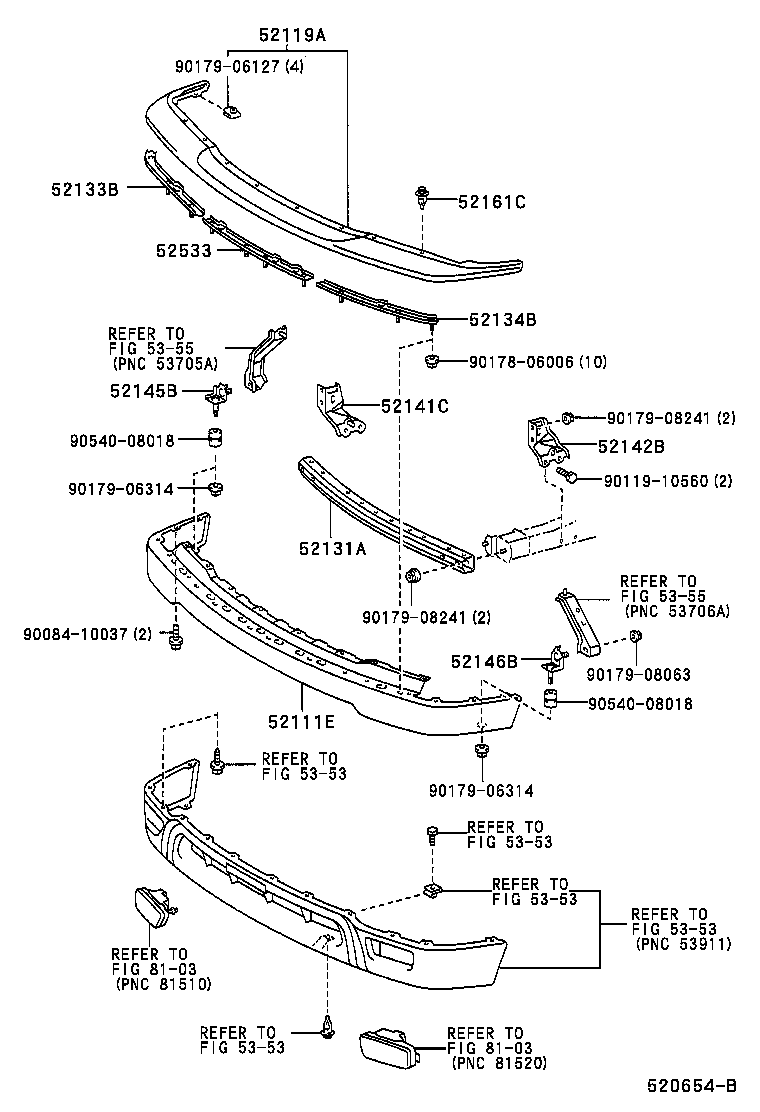

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52111E - BAR, FRONT BUMPER | ||||
| 52101-04080 |
RZN161,171,VZN160,170..DLX W(CHROME PLATING) |
1 | ||
| 52101-AD020 |
RZN161,171,VZN170 |
1 | ||
| 52101-04070 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 52101-AD030 |
RZN161,171,VZN170 W(CHROME PLATING) |
1 | ||
| 52101-AD900 |
RZN161,171,VZN170 W/O(TOPCOAT) |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-AD010 |
RZN161,171,VZN170 |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-AD010 |
RZN161,171,VZN170 |
1 | ||
| 52133B - BRACKET, FRONT BUMPER EXTENSION MOUNTING, RH | ||||
| 52133-AD010 |
RZN161,171,VZN170 |
1 | ||
| 52134B - BRACKET, FRONT BUMPER EXTENSION MOUNTING, LH | ||||
| 52134-AD010 |
RZN161,171,VZN170 |
1 | ||
| 52141C - ARM, FRONT BUMPER, RH | ||||
| 52141-AD020 |
RZN161,171,VZN170 |
1 | ||
| 52142B - ARM, FRONT BUMPER, LH | ||||
| 52142-AD020 |
RZN161,171,VZN170 |
1 | ||
| 52145B - BRACKET, FRONT BUMPER SIDE MOUNTING | ||||
| 52145-AD010 |
RZN161,171,VZN170 |
1 | ||
| 52146B - BRACKET, FRONT BUMPER SIDE MOUNTING, LH | ||||
| 52146-AD010 |
RZN161,171,VZN170 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-02020 |
RZN161,171,VZN170 |
8 | ||
| 52533 - BRACKET, FRONT BUMPER RETAINER, NO.1 | ||||
| 52533-AD010 |
RZN161,171,VZN170 |
1 | ||
| Common parts | ||||
| 90084-10037 | ||||
| 90119-10560 | ||||
| 90178-06006 | ||||
| 90179-06127 | ||||
| 90179-06314 | ||||
| 90179-08063 | ||||
| 90179-08241 | ||||
| 90540-08018 | ||||
| Linked diagrams | ||||
| 5353 | ||||
| 5355 | ||||
| 8103 | ||||
