VZN170L-CRPGKAB (1995)
Toyota Tacoma
ILLUST NO. 2 OF 2(9501- )
NOZZLE & HOSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-04010 |
RZN161,171,VZN160,170 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-04010 |
RZN161,171,VZN160,170 |
2 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| 85377-34010 |
RZN161,171,VZN160,170 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85378-12480 |
RZN161,171,VZN160,170 |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85348-12250 |
RZN161,171,VZN160,170 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90068-33011 |
RZN161,171,VZN170 *H,L=350 |
1 | ||
| 90099-33080 |
RZN161,171,VZN160,170 *H,L=350 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90068-33011 |
RZN161,171,VZN170 *H,L=290 |
1 | ||
| 90099-33190 |
RZN161,171,VZN160,170 *H,L=290 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90099-33080 |
RZN161,171,VZN160,170 *H,L=65 |
1 | ||
| 90068-33011 |
RZN161,171,VZN170 *H,L=65 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
RZN161,171,VZN160,170 *H,L=600 |
1 | ||
| 90068-33011 |
RZN161,171,VZN170 *H,L=600 |
1 | ||
| Common parts | ||||
| 90949-01965 | ||||

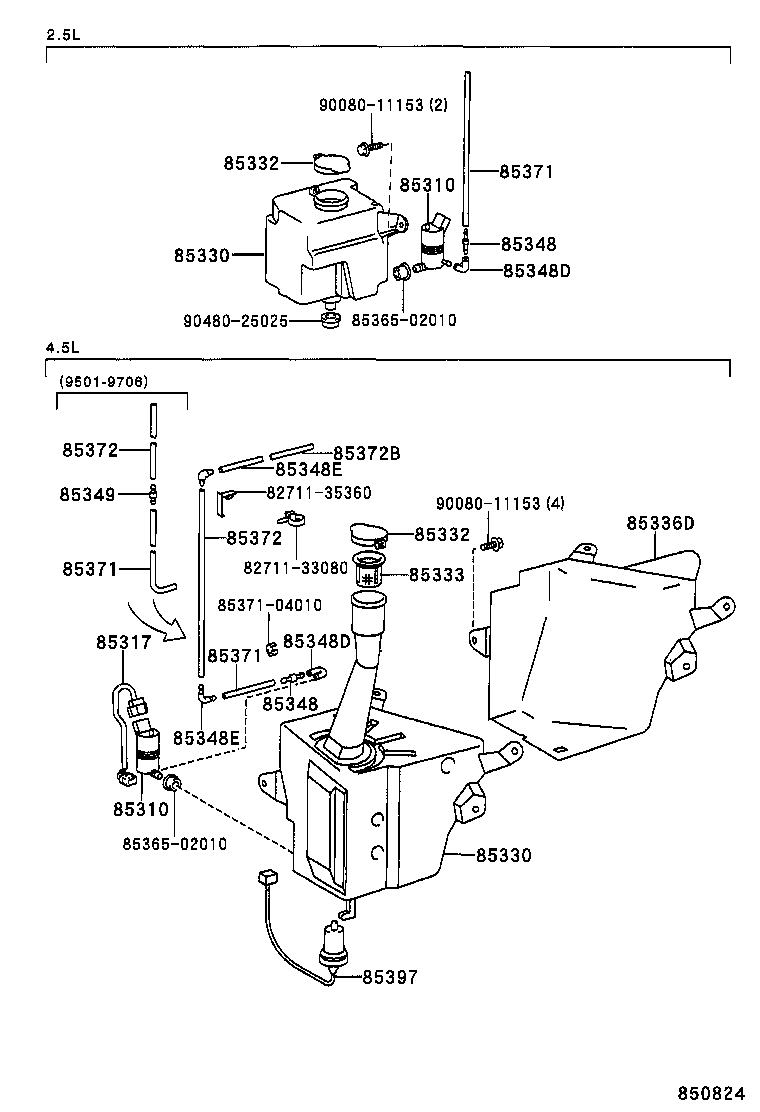

ILLUST NO. 1 OF 2(9501-0009)
JAR & HOSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-06030 |
RZN161,171,VZN160,170 |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-06030 |
RZN161,171,VZN160,170 |
1 | ||
| 85317 - WIRING ASSY, WASHER | ||||
| 85317-04020 |
RZN161,171,VZN160,170 CANADA SPEC OR COLD SPEC OR W(*66) OR W(*CRC) |
1 | ||
| 85317-04021 |
RZN161,171,VZN170 |
1 | ||
| 85317-04020 |
RZN161,171,VZN160,170 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-04050 |
RZN161,171,VZN160,170 |
1 | ||
| 85315-04040 |
RZN161,171,VZN160,170 |
1 | ||
| 85315-04060 |
RZN161,171,VZN170 W(LEVEL WARNING) |
1 | ||
| 85315-04060 |
VZN170..SR5 CANADA SPEC & COLD SPEC & W(*66) |
1 | ||
| 85315-04050 |
RZN161,171,VZN160,170 CANADA SPEC OR COLD SPEC OR W(*66) OR W(*CRC) |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-04050 |
RZN161,171,VZN160,170 |
1 | ||
| 85315-04040 |
RZN161,171,VZN160,170 |
1 | ||
| 85315-04060 |
RZN161,171,VZN170 W(LEVEL WARNING) |
1 | ||
| 85315-04060 |
VZN170..SR5 CANADA SPEC & COLD SPEC & W(*66) |
1 | ||
| 85315-04050 |
RZN161,171,VZN160,170 CANADA SPEC OR COLD SPEC OR W(*66) OR W(*CRC) |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-04010 |
RZN161,171,VZN160,170 |
1 | ||
| 85316-06020 |
RZN161,171,VZN160,170 CANADA SPEC OR COLD SPEC OR W(*66) OR W(*CRC) |
1 | ||
| 85316-06020 |
RZN161,171,VZN160,170 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-04010 |
RZN161,171,VZN160,170 |
1 | ||
| 85316-06020 |
RZN161,171,VZN160,170 CANADA SPEC OR COLD SPEC OR W(*66) OR W(*CRC) |
1 | ||
| 85316-06020 |
RZN161,171,VZN160,170 |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85333-03010 |
RZN161,171,VZN160,170 CANADA SPEC OR COLD SPEC OR W(*66) OR W(*CRC) |
1 | ||
| 85333-03010 |
RZN161,171,VZN160,170 |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-04010 |
RZN161,171,VZN160,170 |
1 | ||
| 85336-04010 |
RZN161,171,VZN160,170 CANADA SPEC OR COLD SPEC OR W(*66) OR W(*CRC) |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85377-01010 |
RZN161,171,VZN160,170 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85377-01010 |
RZN161,171,VZN160,170 |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85376-06010 |
RZN161,171,VZN160,170 |
1 | ||
| 85376-06010 |
RZN161,171,VZN160,170 CANADA SPEC OR COLD SPEC OR W(*66) OR W(*CRC) |
1 | ||
| 85376-01010 |
RZN161,171,VZN160,170 |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85376-06010 |
RZN161,171,VZN160,170 |
1 | ||
| 85376-06010 |
RZN161,171,VZN160,170 CANADA SPEC OR COLD SPEC OR W(*66) OR W(*CRC) |
1 | ||
| 85376-01010 |
RZN161,171,VZN160,170 |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-20200 |
RZN161,171,VZN160,170 |
2 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-20200 |
RZN161,171,VZN160,170 |
2 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
RZN161,171,VZN160,170 |
1 | ||
| 85349-89122 |
RZN161,171,VZN160,170 CANADA SPEC OR COLD SPEC OR W(*66) OR W(*CRC) |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 85374-04030 |
RZN161,171,VZN160,170 L=350,CANADA SPEC OR COLD SPEC OR W(*66) OR W(*CRC) |
1 | ||
| 85374-04040 |
RZN161,171,VZN160,170 L=340 |
1 | ||
| 85374-04030 |
RZN161,171,VZN160,170 L=350 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 85374-04030 |
RZN161,171,VZN160,170 L=350,CANADA SPEC OR COLD SPEC OR W(*66) OR W(*CRC) |
1 | ||
| 85374-04040 |
RZN161,171,VZN160,170 L=340 |
1 | ||
| 85374-04030 |
RZN161,171,VZN160,170 L=350 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 85374-04030 |
RZN161,171,VZN160,170 L=350,CANADA SPEC OR COLD SPEC OR W(*66) OR W(*CRC) |
1 | ||
| 85374-04040 |
RZN161,171,VZN160,170 L=340 |
1 | ||
| 85374-04030 |
RZN161,171,VZN160,170 L=350 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33299 |
RZN161,171,VZN160,170 *H,L=400 |
1 | ||
| 90099-33299 |
RZN161,171,VZN160,170 *H,L=400,CANADA SPEC OR COLD SPEC OR W(*66) OR W(*CRC) |
1 | ||
| 90068-33011 |
RZN161,171,VZN170 *H,L=400 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33299 |
RZN161,171,VZN160,170 *H,L=400 |
1 | ||
| 90099-33299 |
RZN161,171,VZN160,170 *H,L=400,CANADA SPEC OR COLD SPEC OR W(*66) OR W(*CRC) |
1 | ||
| 90068-33011 |
RZN161,171,VZN170 *H,L=400 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
RZN161,171,VZN160,170 *H,L=760,CANADA SPEC OR COLD SPEC OR W(*66) OR W(*CRC) |
1 | ||
| 90099-33080 |
RZN161,171,VZN160,170 *H,L=760 |
1 | ||
| 90068-33011 |
RZN161,171,VZN170 *H,L=760 |
1 | ||
| 85397 - SWITCH ASSY,LEVEL WARNING | ||||
| 85397-35140 |
VZN170;RZN161,171..W |
1 | ||
| 85397-35141 |
RZN161,171,VZN170 |
1 | ||
| 85397-35140 |
VZN170..SR5;RZN161,171,VZN170..5F..DLX |
1 | ||
| Common parts | ||||
| 82711-33080 | ||||
| 82711-35360 | ||||
| 85365-02010 | ||||
| 85371-04010 | ||||
| 90080-11153 | ||||
| 90480-25025 | ||||
