VZN170L-CRPGKAB (1995)

Toyota Tacoma

Production Jan 1995 - Sep 2000
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9501- )

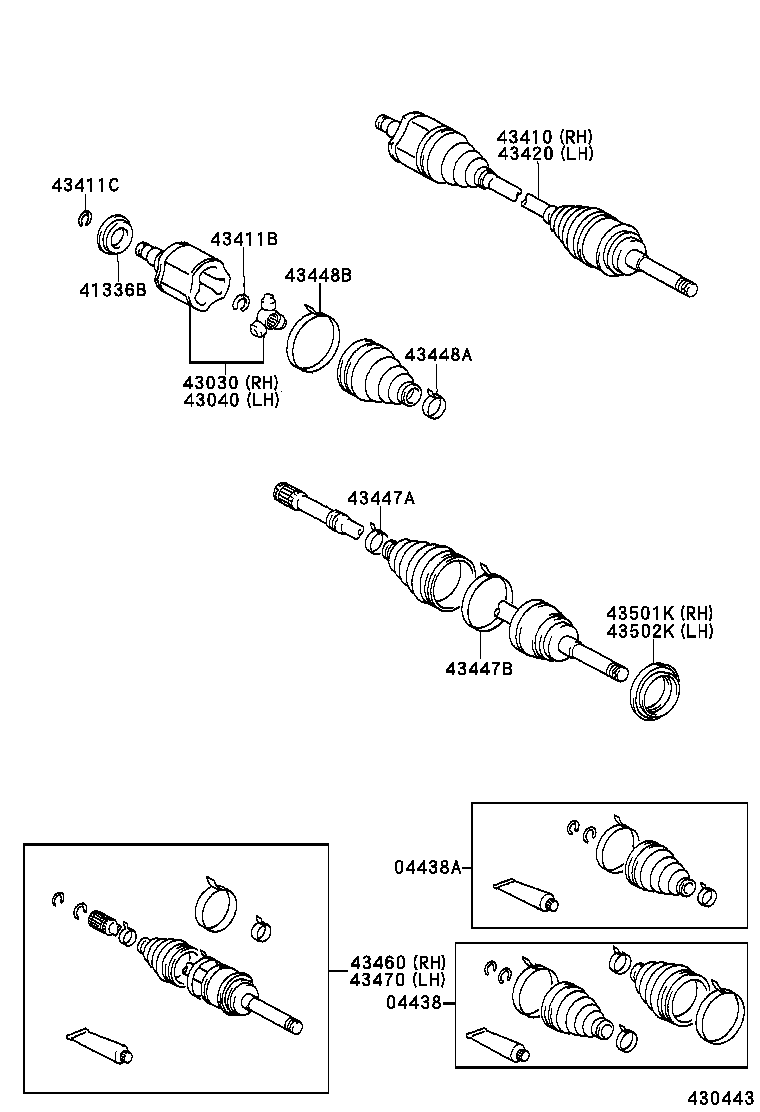

Click highlighted areas on diagram

diagram 04438 04438A 41336B 43030 43040 43410 43411B 43411C 43420 43447A 43447B 43448A 43448B 43460 43470 43501K 43502K
Part # Description Qty Price
04438 - BOOT KIT, FRONT DRIVE SHAFT
04438-04021

RZN161,171,VZN170

 2
04438-04020

RZN161,171,VZN160,170

 2
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-04011

RZN161,171,VZN170

 2
04438-04010

RZN161,171,VZN160,170

 2
41336B - COVER, DUST(FOR FRONT DRIVE SHAFT)
41336-04010

RZN161,171,VZN160,170

 2
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43040-04010

RZN161,171,VZN160,170

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-04010

RZN161,171,VZN160,170

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43430-04020

VZN170..SR5

 1
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
43425-04010

RZN161,171,VZN160,170

 2
43411C - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT OUTER)
43425-04020

RZN161,171,VZN160,170

 2
43420 - SHAFT ASSY, FRONT DRIVE, LH
43430-04020

VZN170..SR5

 1
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
42345-04030

RZN161,171,VZN160,170

 2
43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
42345-04040

RZN161,171,VZN160,170

 2
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-04020

RZN161,171,VZN160,170

 2
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-04010

RZN161,171,VZN160,170

 2
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-09101

RZN161,171,VZN170

W(A.D.D)

 1
43460-09100

VZN170..SR5

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43460-09100

VZN170..SR5

 1
43460-09101

RZN161,171,VZN170

W(A.D.D)

 1
43501K - SEAL, DUST (FOR FRONT AXLE HUB RH)
90080-30028

RZN161,171,VZN160,170

 1
43502K - SEAL, DUST (FOR FRONT AXLE HUB LH)
90080-30028

RZN161,171,VZN160,170

 1
