VZN170L-CRPGKAB (1995)

Toyota Tacoma

Production Jan 1995 - Sep 2000
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

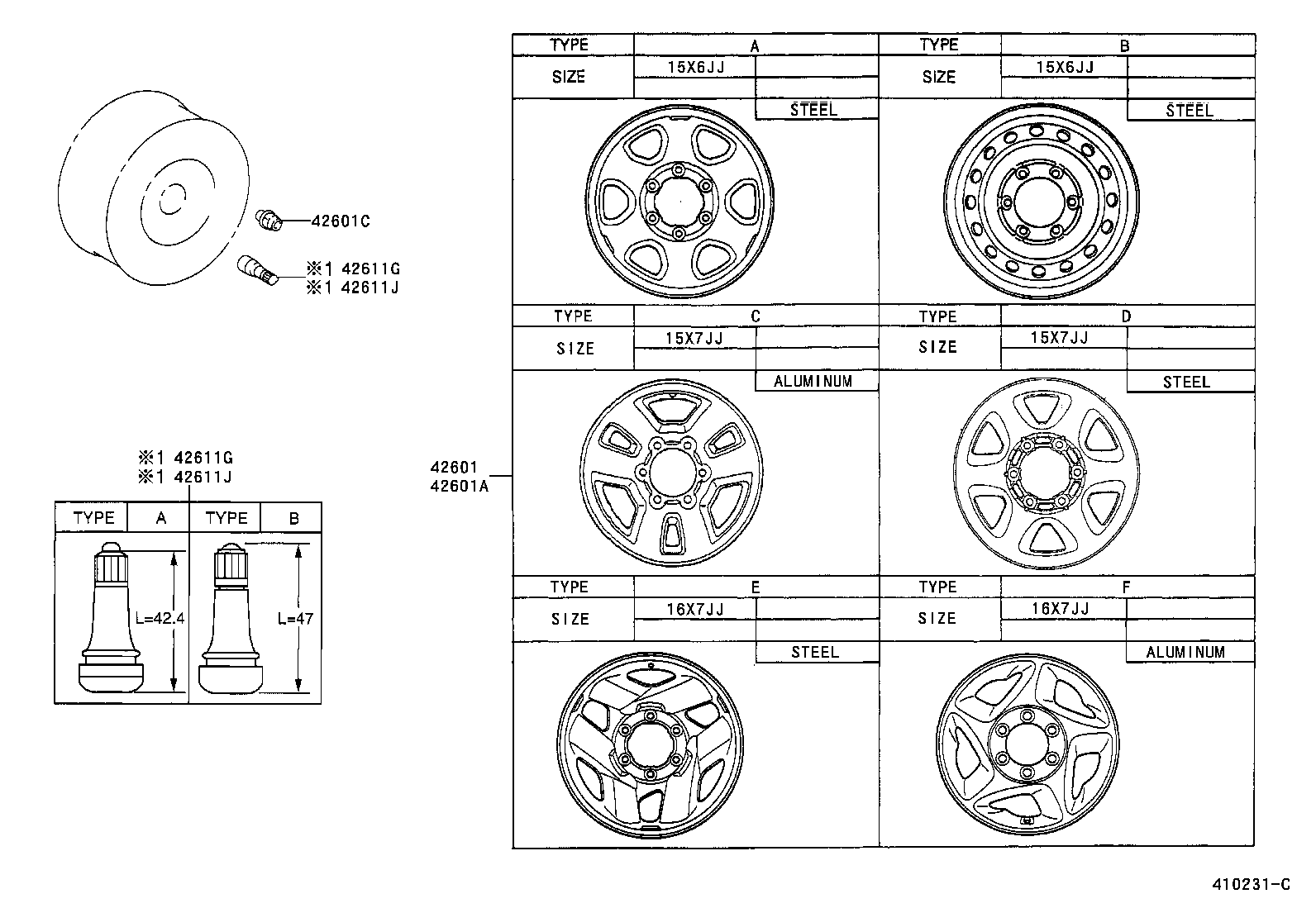

ILLUST NO. 1 OF 3(9501- )

Click highlighted areas on diagram

diagram 42601 42601A 42601C 42611G 42611G 42611J 42611J
Part # Description Qty Price
42601 - WHEEL, DISC
42611-04040

RZN161,171,VZN160,170

15X7JJ,#,TYPE C:REFER TO ILLUSTRATION

 4
42611-04041

RZN161,171,VZN160,170

15X7JJ,#,TYPE C:REFER TO ILLUSTRATION

 4
42601A - WHEEL, DISC (FOR SPARE)
42601-04130

VZN170..SR5

15X7JJ,#,TYPE B:REFER TO ILLUSTRATION

 1
42601-04130

RZN161,171,VZN160,170

15X7JJ,#,TYPE B:REFER TO ILLUSTRATION

 1
42601C - NUT, HUB (FOR AXLE)
90942-01077

VZN170..SR5

 24
42611G - VALVE (FOR TUBELESS TIRE)
90080-45001

RZN161,171,VZN160,170

 4
42611G - VALVE (FOR TUBELESS TIRE)
90080-45001

RZN161,171,VZN160,170

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90080-45001

RZN161,171,VZN160,170

 1
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90080-45001

RZN161,171,VZN160,170

 1

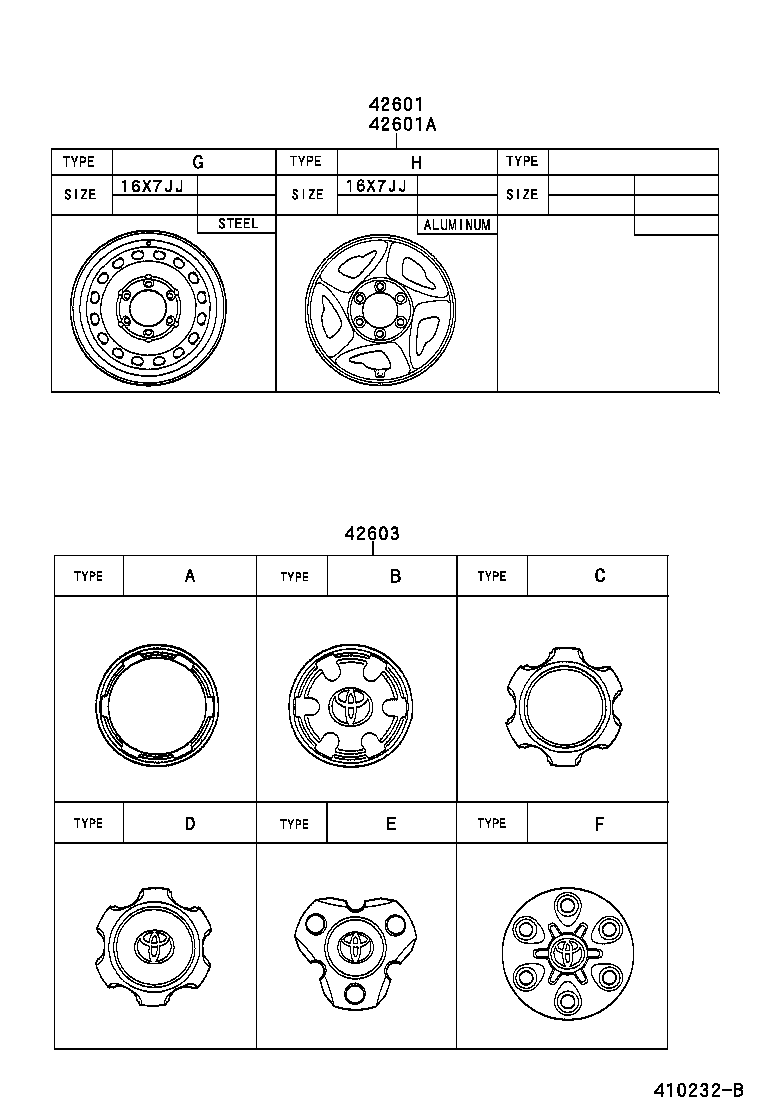

ILLUST NO. 2 OF 3(9501- )

Click highlighted areas on diagram

diagram 42601 42601A 42603
Part # Description Qty Price
42601 - WHEEL, DISC
42611-04040

RZN161,171,VZN160,170

15X7JJ,#,TYPE C:REFER TO ILLUSTRATION

 4
42611-04041

RZN161,171,VZN160,170

15X7JJ,#,TYPE C:REFER TO ILLUSTRATION

 4
42601A - WHEEL, DISC (FOR SPARE)
42601-04130

VZN170..SR5

15X7JJ,#,TYPE B:REFER TO ILLUSTRATION

 1
42601-04130

RZN161,171,VZN160,170

15X7JJ,#,TYPE B:REFER TO ILLUSTRATION

 1
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-35630

RZN161,171,VZN160,170

TYPE D:REFER TO ILLUSTRATION

 4
42603-04030

RZN161,171,VZN160,170

TYPE D:REFER TO ILLUSTRATION

 4

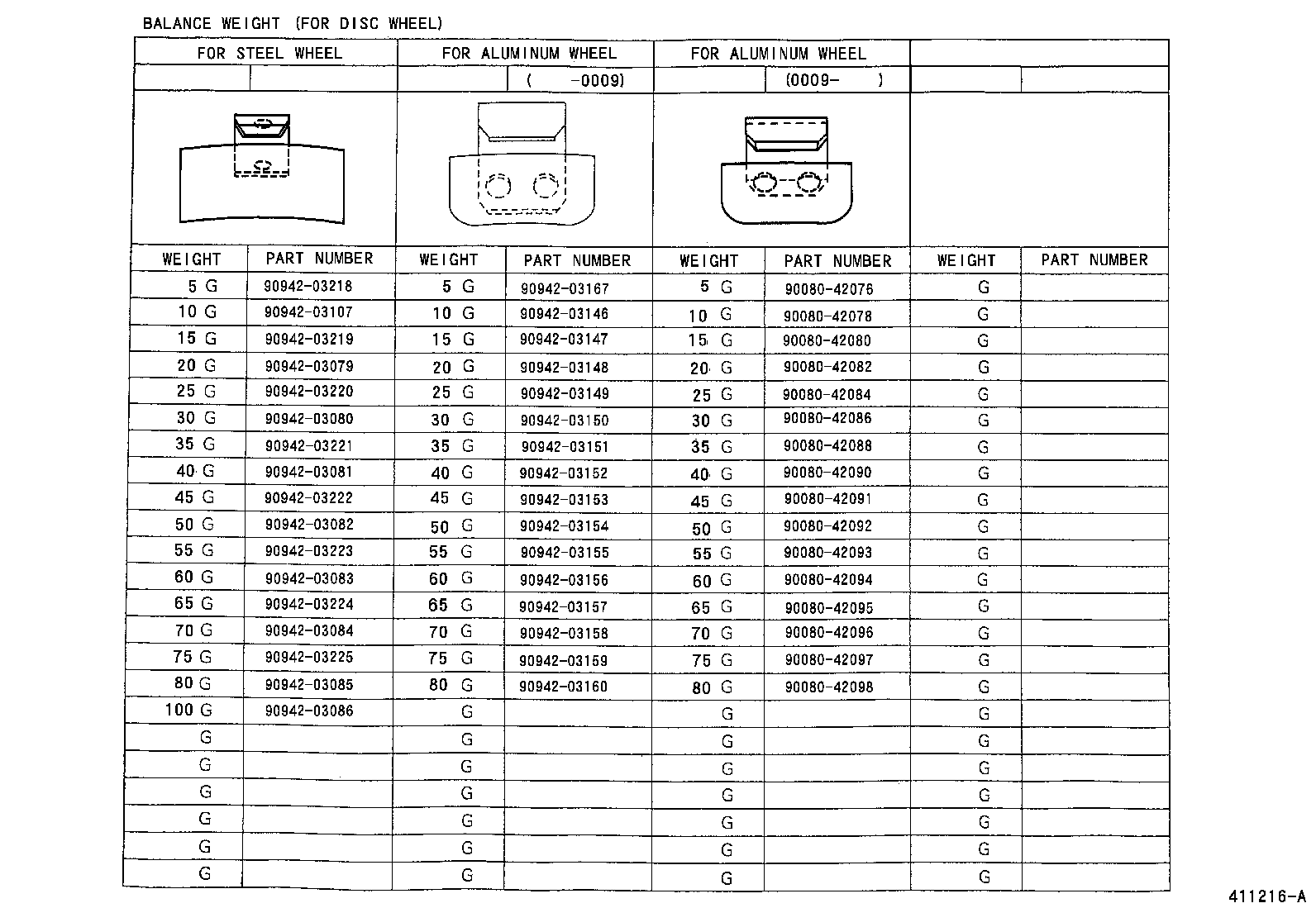

ILLUST NO. 3 OF 3(9501- )

Click highlighted areas on diagram

diagram 9008042076 9008042078 9008042080 9008042082 9008042084 9008042086 9008042088 9008042090 9008042091 9008042092 9008042093 9008042094 9008042095 9008042096 9008042097 9008042098 9094203079 9094203080 9094203081 9094203082 9094203083 9094203084 9094203085 9094203086 9094203107 9094203146 9094203147 9094203148 9094203149 9094203150 9094203151 9094203152 9094203153 9094203154 9094203155 9094203156 9094203157 9094203158 9094203159 9094203160 9094203167 9094203218 9094203219 9094203220 9094203221 9094203222 9094203223 9094203224 9094203225
Part # Description Qty Price
Common parts
90080-42076
90080-42078
90080-42080
90080-42082
90080-42084
90080-42086
90080-42088
90080-42090
90080-42091
90080-42092
90080-42093
90080-42094
90080-42095
90080-42096
90080-42097
90080-42098
90942-03079
90942-03080
90942-03081
90942-03082
90942-03083
90942-03084
90942-03085
90942-03086
90942-03107
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03157
90942-03158
90942-03159
90942-03160
90942-03167
90942-03218
90942-03219
90942-03220
90942-03221
90942-03222
90942-03223
90942-03224
90942-03225
