VZN170L-CRPGKAB (1995)
Toyota Tacoma
Production
Jan 1995
-
Sep 2000
Engine
5VZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9501- )

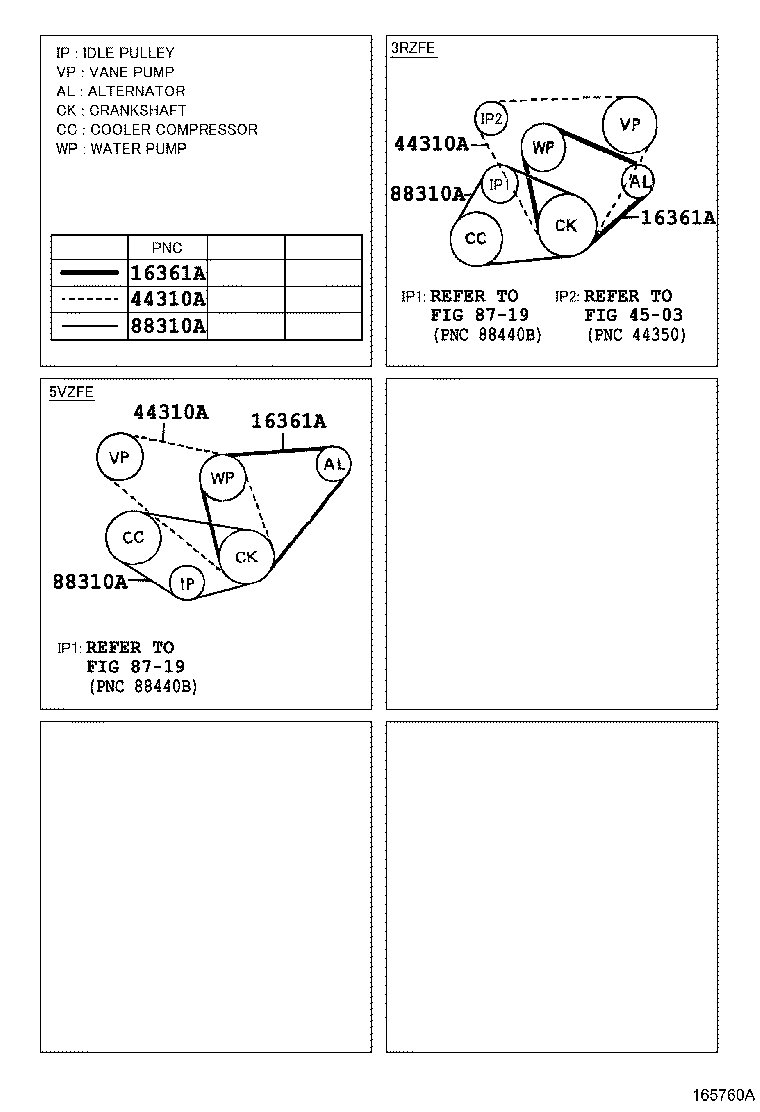

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90080-91090 |
5VZFE..VZN160,170 L=1050 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90080-91090 |
5VZFE..VZN160,170 L=1050 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90080-91090 |
5VZFE..VZN160,170 L=1050 |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 99364-21070 |
VZN160,170 |
1 | ||
| 99364-81070 |
VZN160,170 |
1 | ||
| 90080-91126 |
VZN170 L=1070 |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 99364-21070 |
VZN160,170 |
1 | ||
| 99364-81070 |
VZN160,170 |
1 | ||
| 90080-91126 |
VZN170 L=1070 |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 99364-21070 |
VZN160,170 |
1 | ||
| 99364-81070 |
VZN160,170 |
1 | ||
| 90080-91126 |
VZN170 L=1070 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99364-20870 |
RZN161,171,VZN160,170 L=870 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99364-20870 |
RZN161,171,VZN160,170 L=870 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99364-20870 |
RZN161,171,VZN160,170 L=870 |
1 | ||
| Linked diagrams | ||||
| 4503 | ||||
| 8719 | ||||
