VZN170L-CRPDKAB (1995)
Toyota Tacoma

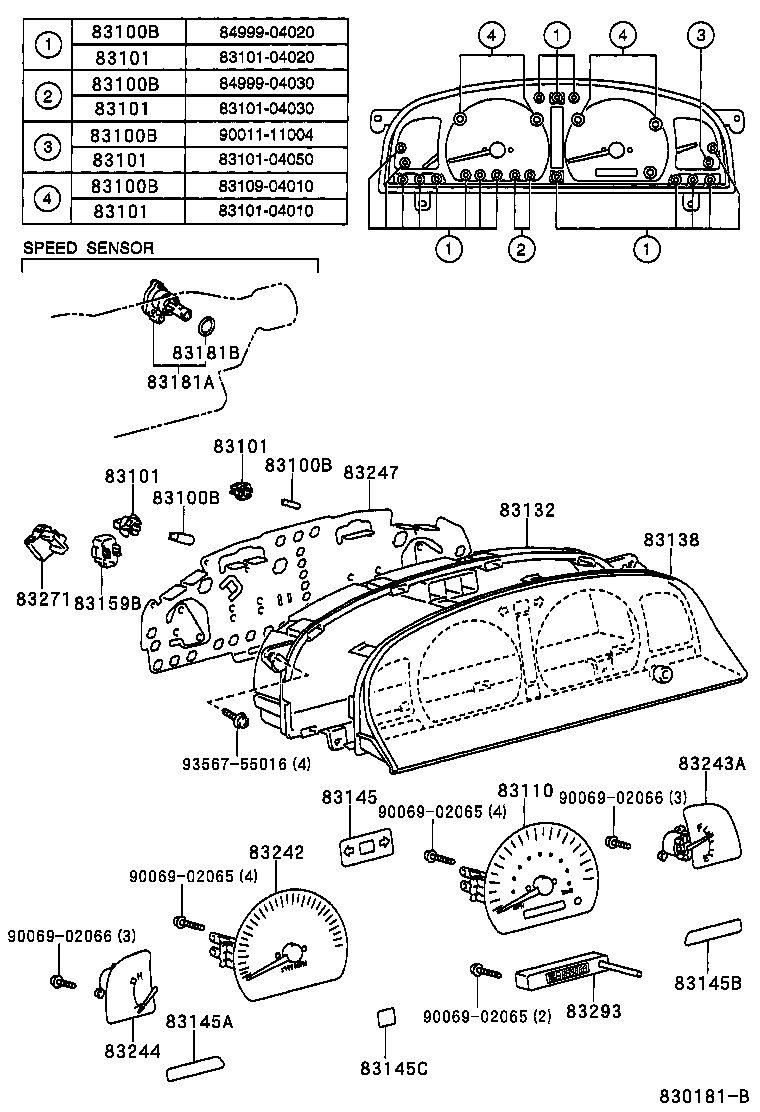

ILLUST NO. 1 OF 3(9501-9706)
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-04040 |
RZN161,171,VZN160,170 NO.3 |
1 | ||
| 83101-04020 |
RZN161,171,VZN160,170 NO.1 |
1 | ||
| 83101-04010 |
RZN161,171,VZN160,170 NO.4 |
1 | ||
| 83101-04050 |
VZN170 W(TACHOMETER),NO.3 |
1 | ||
| 83101-04040 |
RZN161,171,VZN170..DLX NO.3 |
1 | ||
| 83101-04030 |
RZN161,171,VZN160,170 NO.2 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-04040 |
RZN161,171,VZN160,170 NO.3 |
1 | ||
| 83101-04020 |
RZN161,171,VZN160,170 NO.1 |
1 | ||
| 83101-04010 |
RZN161,171,VZN160,170 NO.4 |
1 | ||
| 83101-04050 |
VZN170 W(TACHOMETER),NO.3 |
1 | ||
| 83101-04040 |
RZN161,171,VZN170..DLX NO.3 |
1 | ||
| 83101-04030 |
RZN161,171,VZN160,170 NO.2 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-04040 |
RZN161,171,VZN160,170 NO.3 |
1 | ||
| 83101-04020 |
RZN161,171,VZN160,170 NO.1 |
1 | ||
| 83101-04010 |
RZN161,171,VZN160,170 NO.4 |
1 | ||
| 83101-04050 |
VZN170 W(TACHOMETER),NO.3 |
1 | ||
| 83101-04040 |
RZN161,171,VZN170..DLX NO.3 |
1 | ||
| 83101-04030 |
RZN161,171,VZN160,170 NO.2 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-04040 |
RZN161,171,VZN160,170 NO.3 |
1 | ||
| 83101-04020 |
RZN161,171,VZN160,170 NO.1 |
1 | ||
| 83101-04010 |
RZN161,171,VZN160,170 NO.4 |
1 | ||
| 83101-04050 |
VZN170 W(TACHOMETER),NO.3 |
1 | ||
| 83101-04040 |
RZN161,171,VZN170..DLX NO.3 |
1 | ||
| 83101-04030 |
RZN161,171,VZN160,170 NO.2 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-04040 |
RZN161,171,VZN160,170 NO.3 |
1 | ||
| 83101-04020 |
RZN161,171,VZN160,170 NO.1 |
1 | ||
| 83101-04010 |
RZN161,171,VZN160,170 NO.4 |
1 | ||
| 83101-04050 |
VZN170 W(TACHOMETER),NO.3 |
1 | ||
| 83101-04040 |
RZN161,171,VZN170..DLX NO.3 |
1 | ||
| 83101-04030 |
RZN161,171,VZN160,170 NO.2 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-04040 |
RZN161,171,VZN160,170 NO.3 |
1 | ||
| 83101-04020 |
RZN161,171,VZN160,170 NO.1 |
1 | ||
| 83101-04010 |
RZN161,171,VZN160,170 NO.4 |
1 | ||
| 83101-04050 |
VZN170 W(TACHOMETER),NO.3 |
1 | ||
| 83101-04040 |
RZN161,171,VZN170..DLX NO.3 |
1 | ||
| 83101-04030 |
RZN161,171,VZN160,170 NO.2 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-04130 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(TACHO METER) |
1 | ||
| 83110-04080 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83220-04010 |
RZN161,171,VZN170..DLX |
1 | ||
| 83110-04110 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83110-04090 |
VZN170..DLX;RZN161,171..W CANADA SPEC |
1 | ||
| 83220-04030 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83220-04120 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83220-04140 |
RZN161,171,VZN170 |
1 | ||
| 83220-04130 |
RZN171,VZN170 CANADA SPEC & W(TACHO METER) |
1 | ||
| 83220-04040 |
RZN171,VZN170..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-04040 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83132-04050 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83132-04040 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*66 & *CRC) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83841-04060 |
RZN161,171,VZN170..DLX |
1 | ||
| 83841-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83841-04060 |
RZN161,171,VZN170 |
1 | ||
| 83841-04450 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83841-04850 |
VZN170 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-04050 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83138-04040 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*66 &*CRC) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83138-04040 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83852-04140 |
RZN161,171,VZN170..4FC W(TACHOMETER) |
1 | ||
| 83852-04840 |
VZN170..R W(TACHOMETER & VSC) |
1 | ||
| 83852-04140 |
RZN171,VZN170..4FC..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83852-04050 |
RZN161,171,VZN170 |
1 | ||
| 83852-04050 |
RZN161,171,VZN170..DLX |
1 | ||
| 83852-04140 |
RZN161,171,VZN170..4FC W(TACHOMETER) |
1 | ||
| 83852-04850 |
VZN170..4FC W(TACHOMETER & VSC) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-0W010 |
RZN161,171,VZN160,170 |
2 | ||
| 83145-0W010 |
RZN161,171,VZN170..DLX |
2 | ||
| 83145-0W010 |
RZN161,171,VZN170 |
2 | ||
| 83831-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83831-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-0W010 |
RZN161,171,VZN160,170 |
2 | ||
| 83145-0W010 |
RZN161,171,VZN170..DLX |
2 | ||
| 83145-0W010 |
RZN161,171,VZN170 |
2 | ||
| 83831-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83831-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-04130 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83145-04140 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(TACHO METER) |
1 | ||
| 83831-04160 |
RZN171,VZN170..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83145-04110 |
RZN161,171,VZN170 |
1 | ||
| 83145-04110 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83145-04110 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*66 & *CRC) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83145-04131 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83833-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83833-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83831-04160 |
RZN171,VZN170 CANADA SPEC & W(TACHO METER) |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-04150 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83145-04120 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83831-04450 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83831-04530 |
RZN161,171,VZN170 |
1 | ||
| 83145-04120 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*66 & *CRC) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83834-04100 |
RZN171,VZN170..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83159B - RELAY ASSY, METER | ||||
| 83159-22170 |
RZN161,171,VZN160,170 |
1 | ||
| 83159-22170 |
RZN161,171,VZN170 |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-04040 |
VZN160,170 |
1 | ||
| 83881-04160 |
RZN171,VZN170 CANADA SPEC |
1 | ||
| 83881-04450 |
RZN161,171,VZN170 |
1 | ||
| 83881-04100 |
RZN161,171,VZN170 |
1 | ||
| 83881-04490 |
RZN171,VZN170 CANADA SPEC |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-04080 |
VZN170..R..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83243-04040 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*66 & *CRC) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83243-04040 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83882-04450 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83243-04060 |
VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83882-04160 |
RZN171,VZN170..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83243-04080 |
VZN170..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83882-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83882-04050 |
RZN161,171,VZN170..DLX |
1 | ||
| 83882-04530 |
RZN161,171,VZN170 |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-04080 |
VZN160;RZN161,171,VZN170..4FC..DLX W(TACHO METER) |
1 | ||
| 83244-04080 |
VZN170..R..DLX CANADA SPEC & W(TACHO METER) OR W(TACHO METER) |
1 | ||
| 83244-04040 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83244-04060 |
VZN170..DLX;RZN161,171..W CANADA SPEC |
1 | ||
| 83244-04080 |
VZN170..DLX CANADA SPEC & W(TACHO METER) OR W(TACHO METER) |
1 | ||
| 83883-04470 |
RZN161,171,VZN170..4FC W(TACHOMETER) |
1 | ||
| 83883-04140 |
RZN171,VZN170..4FC..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83883-04050 |
RZN161,171,VZN170..DLX |
1 | ||
| 83883-04530 |
RZN161,171,VZN170 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-04090 |
RZN161,171,VZN160,170..DLX W(TACHOMETER) |
1 | ||
| 83247-04070 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83861-04060 |
RZN161,171,VZN170 |
1 | ||
| 83247-04070 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83861-04060 |
RZN161,171,VZN170..DLX |
1 | ||
| 83861-04110 |
RZN171,VZN170..DLX CANADA SPEC & W(TACHOMETER) |
1 | ||
| 83247-04090 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(TACHOMETER) |
1 | ||
| 83861-04010 |
RZN161,171,VZN160,170..DLX W(TACHOMETER) |
1 | ||
| 83861-04740 |
RZN161,171,VZN170 |
1 | ||
| 83861-04850 |
VZN170 W(TACHOMETER) |
1 | ||
| 83861-04450 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| Common parts | ||||
| 90069-02052 | ||||
| 90069-02053 | ||||
| 90069-02054 | ||||
| 90069-02055 | ||||
| 93568-55014 | ||||

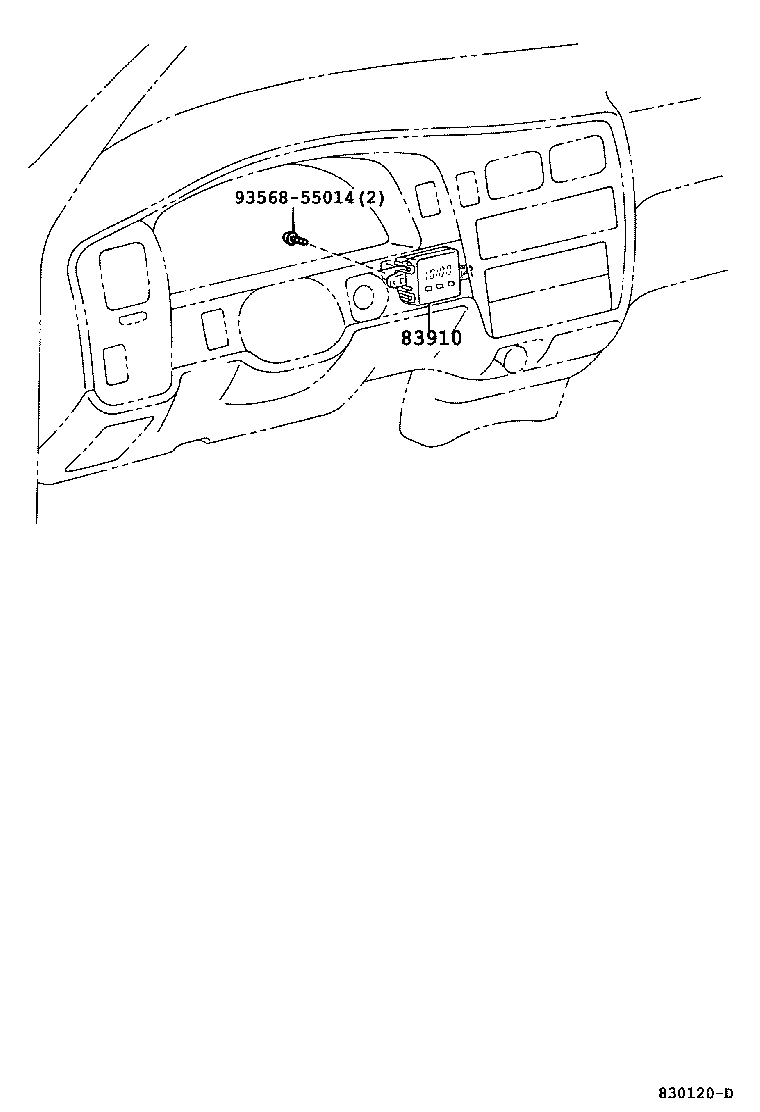

ILLUST NO. 3 OF 3(9501- )
CLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-35020 |
RZN161,171,VZN170 |
1 | ||
| 83910-35010 |
RZN161,171,VZN160,170 |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||

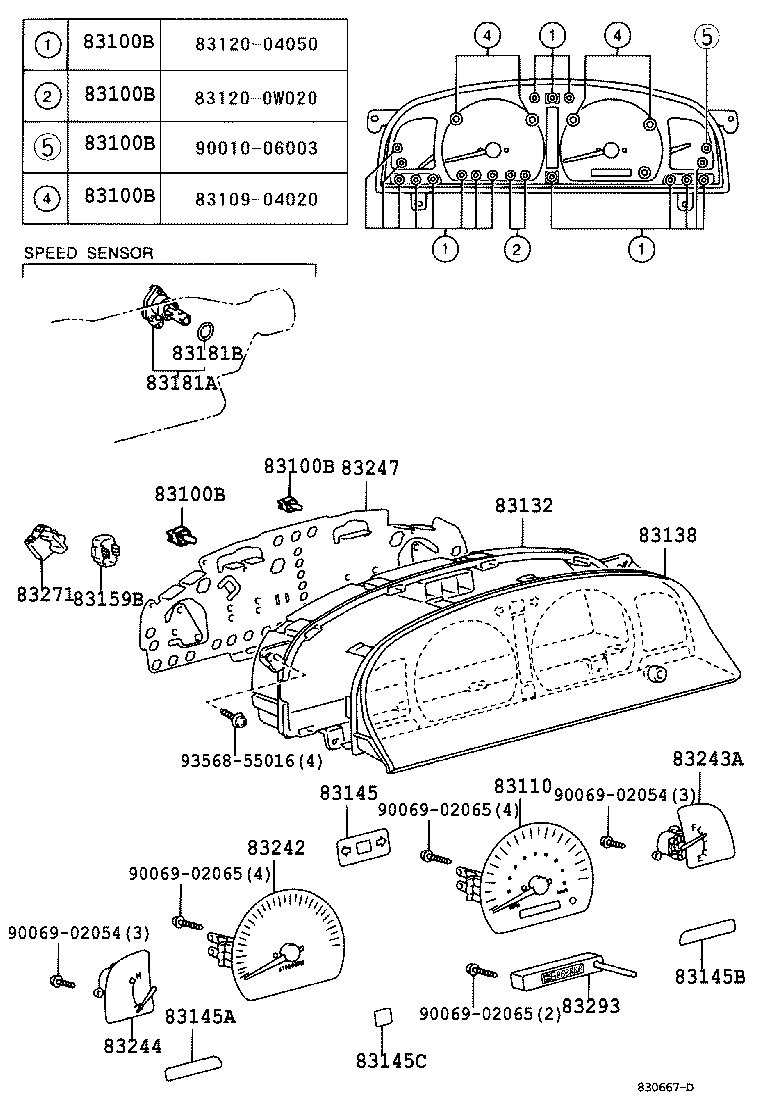

ILLUST NO. 1 OF 3(9706-0009)
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||

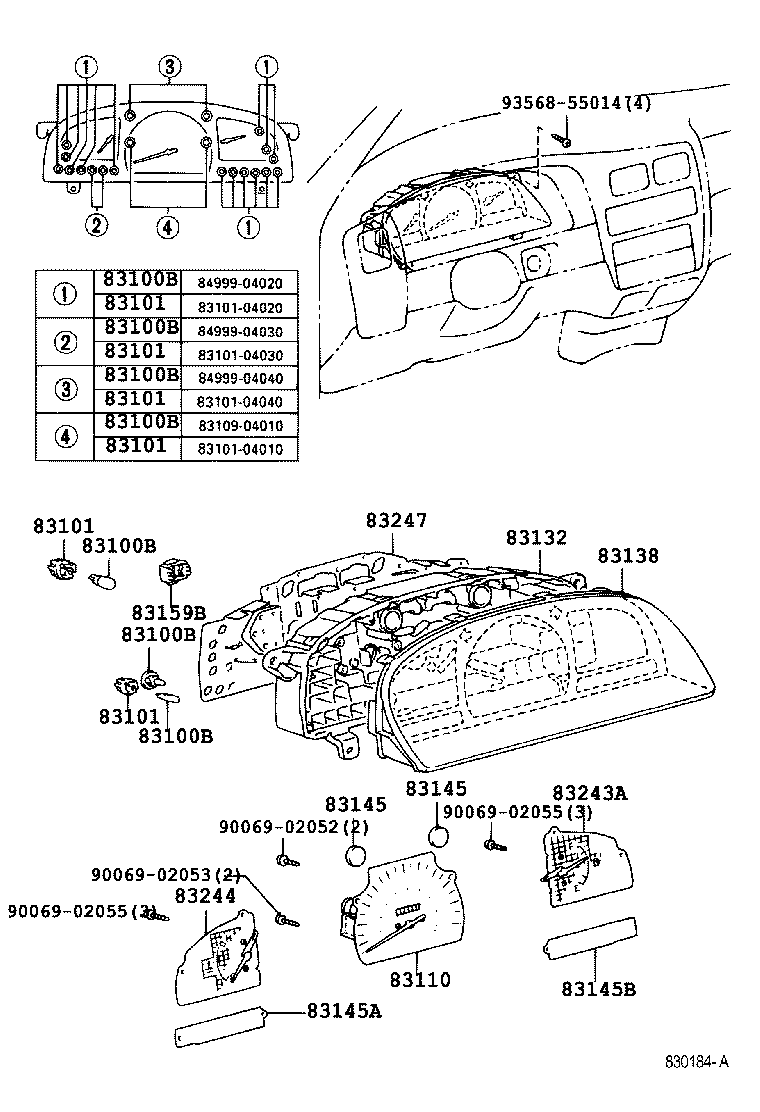

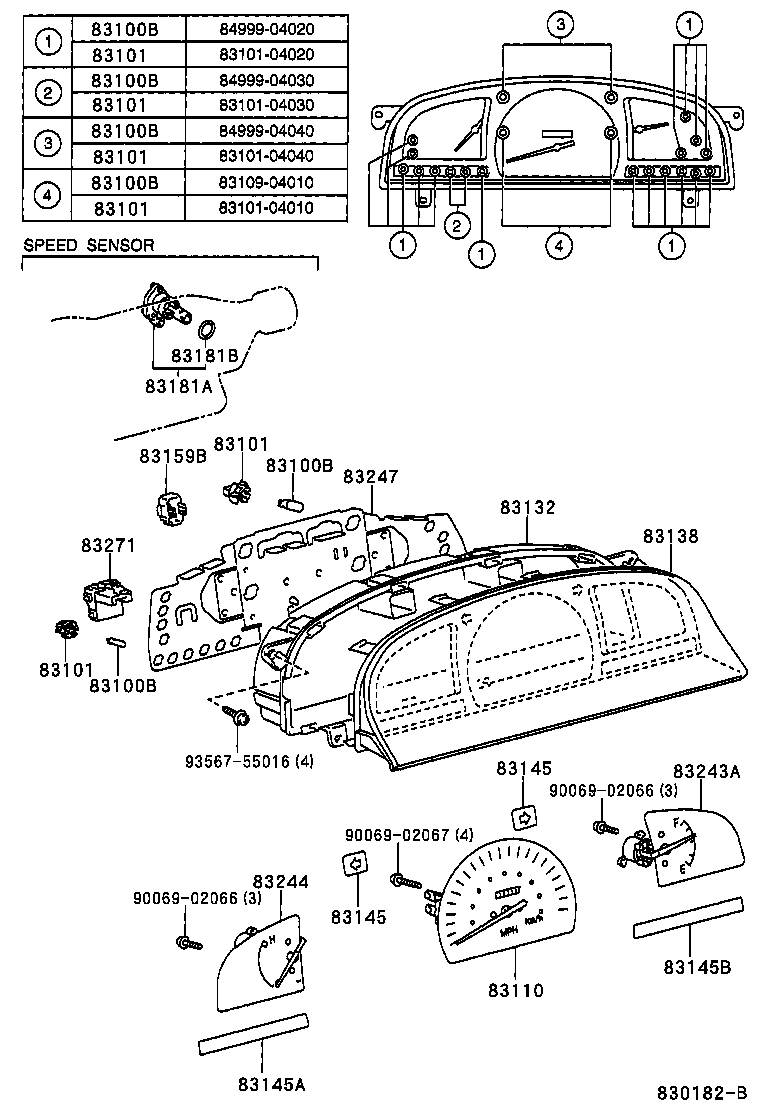

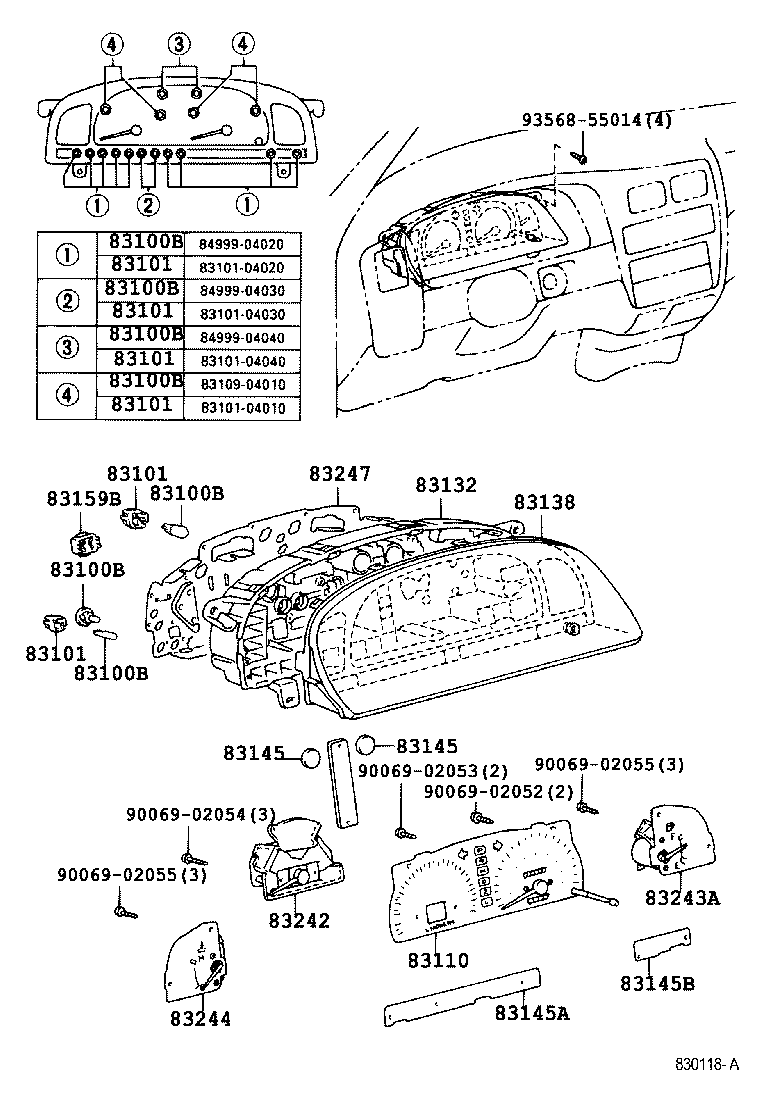

| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-04040 |
RZN161,171,VZN160,170 NO.3 |
1 | ||
| 83101-04020 |
RZN161,171,VZN160,170 NO.1 |
1 | ||
| 83101-04010 |
RZN161,171,VZN160,170 NO.4 |
1 | ||
| 83101-04050 |
VZN170 W(TACHOMETER),NO.3 |
1 | ||
| 83101-04040 |
RZN161,171,VZN170..DLX NO.3 |
1 | ||
| 83101-04030 |
RZN161,171,VZN160,170 NO.2 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-04040 |
RZN161,171,VZN160,170 NO.3 |
1 | ||
| 83101-04020 |
RZN161,171,VZN160,170 NO.1 |
1 | ||
| 83101-04010 |
RZN161,171,VZN160,170 NO.4 |
1 | ||
| 83101-04050 |
VZN170 W(TACHOMETER),NO.3 |
1 | ||
| 83101-04040 |
RZN161,171,VZN170..DLX NO.3 |
1 | ||
| 83101-04030 |
RZN161,171,VZN160,170 NO.2 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-04040 |
RZN161,171,VZN160,170 NO.3 |
1 | ||
| 83101-04020 |
RZN161,171,VZN160,170 NO.1 |
1 | ||
| 83101-04010 |
RZN161,171,VZN160,170 NO.4 |
1 | ||
| 83101-04050 |
VZN170 W(TACHOMETER),NO.3 |
1 | ||
| 83101-04040 |
RZN161,171,VZN170..DLX NO.3 |
1 | ||
| 83101-04030 |
RZN161,171,VZN160,170 NO.2 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-04040 |
RZN161,171,VZN160,170 NO.3 |
1 | ||
| 83101-04020 |
RZN161,171,VZN160,170 NO.1 |
1 | ||
| 83101-04010 |
RZN161,171,VZN160,170 NO.4 |
1 | ||
| 83101-04050 |
VZN170 W(TACHOMETER),NO.3 |
1 | ||
| 83101-04040 |
RZN161,171,VZN170..DLX NO.3 |
1 | ||
| 83101-04030 |
RZN161,171,VZN160,170 NO.2 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-04040 |
RZN161,171,VZN160,170 NO.3 |
1 | ||
| 83101-04020 |
RZN161,171,VZN160,170 NO.1 |
1 | ||
| 83101-04010 |
RZN161,171,VZN160,170 NO.4 |
1 | ||
| 83101-04050 |
VZN170 W(TACHOMETER),NO.3 |
1 | ||
| 83101-04040 |
RZN161,171,VZN170..DLX NO.3 |
1 | ||
| 83101-04030 |
RZN161,171,VZN160,170 NO.2 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-04040 |
RZN161,171,VZN160,170 NO.3 |
1 | ||
| 83101-04020 |
RZN161,171,VZN160,170 NO.1 |
1 | ||
| 83101-04010 |
RZN161,171,VZN160,170 NO.4 |
1 | ||
| 83101-04050 |
VZN170 W(TACHOMETER),NO.3 |
1 | ||
| 83101-04040 |
RZN161,171,VZN170..DLX NO.3 |
1 | ||
| 83101-04030 |
RZN161,171,VZN160,170 NO.2 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-04130 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(TACHO METER) |
1 | ||
| 83110-04080 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83220-04010 |
RZN161,171,VZN170..DLX |
1 | ||
| 83110-04110 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83110-04090 |
VZN170..DLX;RZN161,171..W CANADA SPEC |
1 | ||
| 83220-04030 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83220-04120 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83220-04140 |
RZN161,171,VZN170 |
1 | ||
| 83220-04130 |
RZN171,VZN170 CANADA SPEC & W(TACHO METER) |
1 | ||
| 83220-04040 |
RZN171,VZN170..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-04040 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83132-04050 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83132-04040 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*66 & *CRC) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83841-04060 |
RZN161,171,VZN170..DLX |
1 | ||
| 83841-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83841-04060 |
RZN161,171,VZN170 |
1 | ||
| 83841-04450 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83841-04850 |
VZN170 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-04050 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83138-04040 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*66 &*CRC) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83138-04040 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83852-04140 |
RZN161,171,VZN170..4FC W(TACHOMETER) |
1 | ||
| 83852-04840 |
VZN170..R W(TACHOMETER & VSC) |
1 | ||
| 83852-04140 |
RZN171,VZN170..4FC..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83852-04050 |
RZN161,171,VZN170 |
1 | ||
| 83852-04050 |
RZN161,171,VZN170..DLX |
1 | ||
| 83852-04140 |
RZN161,171,VZN170..4FC W(TACHOMETER) |
1 | ||
| 83852-04850 |
VZN170..4FC W(TACHOMETER & VSC) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-0W010 |
RZN161,171,VZN160,170 |
2 | ||
| 83145-0W010 |
RZN161,171,VZN170..DLX |
2 | ||
| 83145-0W010 |
RZN161,171,VZN170 |
2 | ||
| 83831-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83831-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-04130 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83145-04140 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(TACHO METER) |
1 | ||
| 83831-04160 |
RZN171,VZN170..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83145-04110 |
RZN161,171,VZN170 |
1 | ||
| 83145-04110 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83145-04110 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*66 & *CRC) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83145-04131 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83833-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83833-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83831-04160 |
RZN171,VZN170 CANADA SPEC & W(TACHO METER) |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-04150 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83145-04120 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83831-04450 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83831-04530 |
RZN161,171,VZN170 |
1 | ||
| 83145-04120 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*66 & *CRC) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83834-04100 |
RZN171,VZN170..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83832-04100 |
RZN161,171,VZN170..4FC |
1 | ||
| 83832-04100 |
RZN161,171,VZN170..4FC |
1 | ||
| 83159B - RELAY ASSY, METER | ||||
| 83159-22170 |
RZN161,171,VZN160,170 |
1 | ||
| 83159-22170 |
RZN161,171,VZN170 |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
RZN161,171,VZN170 |
1 | ||
| 83181-12020 |
RZN161,171,VZN170 |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
RZN161,171,VZN170 |
1 | ||
| 96711-24030 |
RZN161,171,VZN170 |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-04040 |
VZN160,170 |
1 | ||
| 83881-04160 |
RZN171,VZN170 CANADA SPEC |
1 | ||
| 83881-04450 |
RZN161,171,VZN170 |
1 | ||
| 83881-04100 |
RZN161,171,VZN170 |
1 | ||
| 83881-04490 |
RZN171,VZN170 CANADA SPEC |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-04080 |
VZN170..R..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83243-04040 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*66 & *CRC) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83243-04040 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83882-04450 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83243-04060 |
VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83882-04160 |
RZN171,VZN170..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83243-04080 |
VZN170..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83882-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83882-04050 |
RZN161,171,VZN170..DLX |
1 | ||
| 83882-04530 |
RZN161,171,VZN170 |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-04080 |
VZN160;RZN161,171,VZN170..4FC..DLX W(TACHO METER) |
1 | ||
| 83244-04080 |
VZN170..R..DLX CANADA SPEC & W(TACHO METER) OR W(TACHO METER) |
1 | ||
| 83244-04040 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83244-04060 |
VZN170..DLX;RZN161,171..W CANADA SPEC |
1 | ||
| 83244-04080 |
VZN170..DLX CANADA SPEC & W(TACHO METER) OR W(TACHO METER) |
1 | ||
| 83883-04470 |
RZN161,171,VZN170..4FC W(TACHOMETER) |
1 | ||
| 83883-04140 |
RZN171,VZN170..4FC..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83883-04050 |
RZN161,171,VZN170..DLX |
1 | ||
| 83883-04530 |
RZN161,171,VZN170 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-04090 |
RZN161,171,VZN160,170..DLX W(TACHOMETER) |
1 | ||
| 83247-04070 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83861-04060 |
RZN161,171,VZN170 |
1 | ||
| 83247-04070 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83861-04060 |
RZN161,171,VZN170..DLX |
1 | ||
| 83861-04110 |
RZN171,VZN170..DLX CANADA SPEC & W(TACHOMETER) |
1 | ||
| 83247-04090 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(TACHOMETER) |
1 | ||
| 83861-04010 |
RZN161,171,VZN160,170..DLX W(TACHOMETER) |
1 | ||
| 83861-04740 |
RZN161,171,VZN170 |
1 | ||
| 83861-04850 |
VZN170 W(TACHOMETER) |
1 | ||
| 83861-04450 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83271 - RELAY, METER CONTROL | ||||
| 83271-04020 |
RZN161,171,VZN170 |
1 | ||
| 83271-04020 |
RZN161,171,VZN170 |
1 | ||
| 83293 - COMPUTER, TOTAL COUNTER MODULE | ||||
| 83293-04020 |
VZN170 W(TACHOMETER) |
1 | ||
| 83293-04040 |
VZN170 CANADA SPEC & W(TACHOMETER) |
1 | ||
| 83293-04020 |
VZN170 W(TACHOMETER) |
1 | ||
| 83293-04040 |
VZN170..DLX CANADA SPEC & W(TACHOMETER) |
1 | ||
| Common parts | ||||
| 90069-02065 | ||||
| 90069-02066 | ||||
| 93567-55016 | ||||
ILLUST NO. 1 OF 3(9706-0009)
W/O(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-04040 |
RZN161,171,VZN160,170 NO.3 |
1 | ||
| 83101-04020 |
RZN161,171,VZN160,170 NO.1 |
1 | ||
| 83101-04010 |
RZN161,171,VZN160,170 NO.4 |
1 | ||
| 83101-04050 |
VZN170 W(TACHOMETER),NO.3 |
1 | ||
| 83101-04040 |
RZN161,171,VZN170..DLX NO.3 |
1 | ||
| 83101-04030 |
RZN161,171,VZN160,170 NO.2 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-04040 |
RZN161,171,VZN160,170 NO.3 |
1 | ||
| 83101-04020 |
RZN161,171,VZN160,170 NO.1 |
1 | ||
| 83101-04010 |
RZN161,171,VZN160,170 NO.4 |
1 | ||
| 83101-04050 |
VZN170 W(TACHOMETER),NO.3 |
1 | ||
| 83101-04040 |
RZN161,171,VZN170..DLX NO.3 |
1 | ||
| 83101-04030 |
RZN161,171,VZN160,170 NO.2 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-04040 |
RZN161,171,VZN160,170 NO.3 |
1 | ||
| 83101-04020 |
RZN161,171,VZN160,170 NO.1 |
1 | ||
| 83101-04010 |
RZN161,171,VZN160,170 NO.4 |
1 | ||
| 83101-04050 |
VZN170 W(TACHOMETER),NO.3 |
1 | ||
| 83101-04040 |
RZN161,171,VZN170..DLX NO.3 |
1 | ||
| 83101-04030 |
RZN161,171,VZN160,170 NO.2 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-04040 |
RZN161,171,VZN160,170 NO.3 |
1 | ||
| 83101-04020 |
RZN161,171,VZN160,170 NO.1 |
1 | ||
| 83101-04010 |
RZN161,171,VZN160,170 NO.4 |
1 | ||
| 83101-04050 |
VZN170 W(TACHOMETER),NO.3 |
1 | ||
| 83101-04040 |
RZN161,171,VZN170..DLX NO.3 |
1 | ||
| 83101-04030 |
RZN161,171,VZN160,170 NO.2 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-04040 |
RZN161,171,VZN160,170 NO.3 |
1 | ||
| 83101-04020 |
RZN161,171,VZN160,170 NO.1 |
1 | ||
| 83101-04010 |
RZN161,171,VZN160,170 NO.4 |
1 | ||
| 83101-04050 |
VZN170 W(TACHOMETER),NO.3 |
1 | ||
| 83101-04040 |
RZN161,171,VZN170..DLX NO.3 |
1 | ||
| 83101-04030 |
RZN161,171,VZN160,170 NO.2 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-04040 |
RZN161,171,VZN160,170 NO.3 |
1 | ||
| 83101-04020 |
RZN161,171,VZN160,170 NO.1 |
1 | ||
| 83101-04010 |
RZN161,171,VZN160,170 NO.4 |
1 | ||
| 83101-04050 |
VZN170 W(TACHOMETER),NO.3 |
1 | ||
| 83101-04040 |
RZN161,171,VZN170..DLX NO.3 |
1 | ||
| 83101-04030 |
RZN161,171,VZN160,170 NO.2 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-04130 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(TACHO METER) |
1 | ||
| 83110-04080 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83220-04010 |
RZN161,171,VZN170..DLX |
1 | ||
| 83110-04110 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83110-04090 |
VZN170..DLX;RZN161,171..W CANADA SPEC |
1 | ||
| 83220-04030 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83220-04120 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83220-04140 |
RZN161,171,VZN170 |
1 | ||
| 83220-04130 |
RZN171,VZN170 CANADA SPEC & W(TACHO METER) |
1 | ||
| 83220-04040 |
RZN171,VZN170..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-04040 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83132-04050 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83132-04040 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*66 & *CRC) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83841-04060 |
RZN161,171,VZN170..DLX |
1 | ||
| 83841-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83841-04060 |
RZN161,171,VZN170 |
1 | ||
| 83841-04450 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83841-04850 |
VZN170 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-04050 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83138-04040 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*66 &*CRC) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83138-04040 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83852-04140 |
RZN161,171,VZN170..4FC W(TACHOMETER) |
1 | ||
| 83852-04840 |
VZN170..R W(TACHOMETER & VSC) |
1 | ||
| 83852-04140 |
RZN171,VZN170..4FC..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83852-04050 |
RZN161,171,VZN170 |
1 | ||
| 83852-04050 |
RZN161,171,VZN170..DLX |
1 | ||
| 83852-04140 |
RZN161,171,VZN170..4FC W(TACHOMETER) |
1 | ||
| 83852-04850 |
VZN170..4FC W(TACHOMETER & VSC) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-0W010 |
RZN161,171,VZN160,170 |
2 | ||
| 83145-0W010 |
RZN161,171,VZN170..DLX |
2 | ||
| 83145-0W010 |
RZN161,171,VZN170 |
2 | ||
| 83831-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83831-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-0W010 |
RZN161,171,VZN160,170 |
2 | ||
| 83145-0W010 |
RZN161,171,VZN170..DLX |
2 | ||
| 83145-0W010 |
RZN161,171,VZN170 |
2 | ||
| 83831-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83831-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-04130 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83145-04140 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(TACHO METER) |
1 | ||
| 83831-04160 |
RZN171,VZN170..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83145-04110 |
RZN161,171,VZN170 |
1 | ||
| 83145-04110 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83145-04110 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*66 & *CRC) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83145-04131 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83833-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83833-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83831-04160 |
RZN171,VZN170 CANADA SPEC & W(TACHO METER) |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-04150 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83145-04120 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83831-04450 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83831-04530 |
RZN161,171,VZN170 |
1 | ||
| 83145-04120 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*66 & *CRC) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83834-04100 |
RZN171,VZN170..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83159B - RELAY ASSY, METER | ||||
| 83159-22170 |
RZN161,171,VZN160,170 |
1 | ||
| 83159-22170 |
RZN161,171,VZN170 |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
RZN161,171,VZN170 |
1 | ||
| 83181-12020 |
RZN161,171,VZN170 |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
RZN161,171,VZN170 |
1 | ||
| 96711-24030 |
RZN161,171,VZN170 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-04080 |
VZN170..R..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83243-04040 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*66 & *CRC) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83243-04040 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83882-04450 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83243-04060 |
VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83882-04160 |
RZN171,VZN170..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83243-04080 |
VZN170..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83882-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83882-04050 |
RZN161,171,VZN170..DLX |
1 | ||
| 83882-04530 |
RZN161,171,VZN170 |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-04080 |
VZN160;RZN161,171,VZN170..4FC..DLX W(TACHO METER) |
1 | ||
| 83244-04080 |
VZN170..R..DLX CANADA SPEC & W(TACHO METER) OR W(TACHO METER) |
1 | ||
| 83244-04040 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83244-04060 |
VZN170..DLX;RZN161,171..W CANADA SPEC |
1 | ||
| 83244-04080 |
VZN170..DLX CANADA SPEC & W(TACHO METER) OR W(TACHO METER) |
1 | ||
| 83883-04470 |
RZN161,171,VZN170..4FC W(TACHOMETER) |
1 | ||
| 83883-04140 |
RZN171,VZN170..4FC..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83883-04050 |
RZN161,171,VZN170..DLX |
1 | ||
| 83883-04530 |
RZN161,171,VZN170 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-04090 |
RZN161,171,VZN160,170..DLX W(TACHOMETER) |
1 | ||
| 83247-04070 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83861-04060 |
RZN161,171,VZN170 |
1 | ||
| 83247-04070 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83861-04060 |
RZN161,171,VZN170..DLX |
1 | ||
| 83861-04110 |
RZN171,VZN170..DLX CANADA SPEC & W(TACHOMETER) |
1 | ||
| 83247-04090 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(TACHOMETER) |
1 | ||
| 83861-04010 |
RZN161,171,VZN160,170..DLX W(TACHOMETER) |
1 | ||
| 83861-04740 |
RZN161,171,VZN170 |
1 | ||
| 83861-04850 |
VZN170 W(TACHOMETER) |
1 | ||
| 83861-04450 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83271 - RELAY, METER CONTROL | ||||
| 83271-04020 |
RZN161,171,VZN170 |
1 | ||
| 83271-04020 |
RZN161,171,VZN170 |
1 | ||
| Common parts | ||||
| 90069-02066 | ||||
| 90069-02067 | ||||
| 93567-55016 | ||||
ILLUST NO. 1 OF 3(9501-9706)
W/O(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-04040 |
RZN161,171,VZN160,170 NO.3 |
1 | ||
| 83101-04020 |
RZN161,171,VZN160,170 NO.1 |
1 | ||
| 83101-04010 |
RZN161,171,VZN160,170 NO.4 |
1 | ||
| 83101-04050 |
VZN170 W(TACHOMETER),NO.3 |
1 | ||
| 83101-04040 |
RZN161,171,VZN170..DLX NO.3 |
1 | ||
| 83101-04030 |
RZN161,171,VZN160,170 NO.2 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-04040 |
RZN161,171,VZN160,170 NO.3 |
1 | ||
| 83101-04020 |
RZN161,171,VZN160,170 NO.1 |
1 | ||
| 83101-04010 |
RZN161,171,VZN160,170 NO.4 |
1 | ||
| 83101-04050 |
VZN170 W(TACHOMETER),NO.3 |
1 | ||
| 83101-04040 |
RZN161,171,VZN170..DLX NO.3 |
1 | ||
| 83101-04030 |
RZN161,171,VZN160,170 NO.2 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-04040 |
RZN161,171,VZN160,170 NO.3 |
1 | ||
| 83101-04020 |
RZN161,171,VZN160,170 NO.1 |
1 | ||
| 83101-04010 |
RZN161,171,VZN160,170 NO.4 |
1 | ||
| 83101-04050 |
VZN170 W(TACHOMETER),NO.3 |
1 | ||
| 83101-04040 |
RZN161,171,VZN170..DLX NO.3 |
1 | ||
| 83101-04030 |
RZN161,171,VZN160,170 NO.2 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-04040 |
RZN161,171,VZN160,170 NO.3 |
1 | ||
| 83101-04020 |
RZN161,171,VZN160,170 NO.1 |
1 | ||
| 83101-04010 |
RZN161,171,VZN160,170 NO.4 |
1 | ||
| 83101-04050 |
VZN170 W(TACHOMETER),NO.3 |
1 | ||
| 83101-04040 |
RZN161,171,VZN170..DLX NO.3 |
1 | ||
| 83101-04030 |
RZN161,171,VZN160,170 NO.2 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-04040 |
RZN161,171,VZN160,170 NO.3 |
1 | ||
| 83101-04020 |
RZN161,171,VZN160,170 NO.1 |
1 | ||
| 83101-04010 |
RZN161,171,VZN160,170 NO.4 |
1 | ||
| 83101-04050 |
VZN170 W(TACHOMETER),NO.3 |
1 | ||
| 83101-04040 |
RZN161,171,VZN170..DLX NO.3 |
1 | ||
| 83101-04030 |
RZN161,171,VZN160,170 NO.2 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-04040 |
RZN161,171,VZN160,170 NO.3 |
1 | ||
| 83101-04020 |
RZN161,171,VZN160,170 NO.1 |
1 | ||
| 83101-04010 |
RZN161,171,VZN160,170 NO.4 |
1 | ||
| 83101-04050 |
VZN170 W(TACHOMETER),NO.3 |
1 | ||
| 83101-04040 |
RZN161,171,VZN170..DLX NO.3 |
1 | ||
| 83101-04030 |
RZN161,171,VZN160,170 NO.2 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-04130 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(TACHO METER) |
1 | ||
| 83110-04080 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83220-04010 |
RZN161,171,VZN170..DLX |
1 | ||
| 83110-04110 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83110-04090 |
VZN170..DLX;RZN161,171..W CANADA SPEC |
1 | ||
| 83220-04030 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83220-04120 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83220-04140 |
RZN161,171,VZN170 |
1 | ||
| 83220-04130 |
RZN171,VZN170 CANADA SPEC & W(TACHO METER) |
1 | ||
| 83220-04040 |
RZN171,VZN170..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-04040 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83132-04050 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83132-04040 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*66 & *CRC) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83841-04060 |
RZN161,171,VZN170..DLX |
1 | ||
| 83841-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83841-04060 |
RZN161,171,VZN170 |
1 | ||
| 83841-04450 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83841-04850 |
VZN170 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-04050 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83138-04040 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*66 &*CRC) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83138-04040 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83852-04140 |
RZN161,171,VZN170..4FC W(TACHOMETER) |
1 | ||
| 83852-04840 |
VZN170..R W(TACHOMETER & VSC) |
1 | ||
| 83852-04140 |
RZN171,VZN170..4FC..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83852-04050 |
RZN161,171,VZN170 |
1 | ||
| 83852-04050 |
RZN161,171,VZN170..DLX |
1 | ||
| 83852-04140 |
RZN161,171,VZN170..4FC W(TACHOMETER) |
1 | ||
| 83852-04850 |
VZN170..4FC W(TACHOMETER & VSC) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-0W010 |
RZN161,171,VZN160,170 |
2 | ||
| 83145-0W010 |
RZN161,171,VZN170..DLX |
2 | ||
| 83145-0W010 |
RZN161,171,VZN170 |
2 | ||
| 83831-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83831-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-0W010 |
RZN161,171,VZN160,170 |
2 | ||
| 83145-0W010 |
RZN161,171,VZN170..DLX |
2 | ||
| 83145-0W010 |
RZN161,171,VZN170 |
2 | ||
| 83831-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83831-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-04130 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83145-04140 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(TACHO METER) |
1 | ||
| 83831-04160 |
RZN171,VZN170..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83145-04110 |
RZN161,171,VZN170 |
1 | ||
| 83145-04110 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83145-04110 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*66 & *CRC) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83145-04131 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83833-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83833-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83831-04160 |
RZN171,VZN170 CANADA SPEC & W(TACHO METER) |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-04150 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83145-04120 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83831-04450 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83831-04530 |
RZN161,171,VZN170 |
1 | ||
| 83145-04120 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*66 & *CRC) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83834-04100 |
RZN171,VZN170..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83159B - RELAY ASSY, METER | ||||
| 83159-22170 |
RZN161,171,VZN160,170 |
1 | ||
| 83159-22170 |
RZN161,171,VZN170 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-04080 |
VZN170..R..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83243-04040 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*66 & *CRC) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83243-04040 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83882-04450 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83243-04060 |
VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83882-04160 |
RZN171,VZN170..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83243-04080 |
VZN170..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83882-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83882-04050 |
RZN161,171,VZN170..DLX |
1 | ||
| 83882-04530 |
RZN161,171,VZN170 |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-04080 |
VZN160;RZN161,171,VZN170..4FC..DLX W(TACHO METER) |
1 | ||
| 83244-04080 |
VZN170..R..DLX CANADA SPEC & W(TACHO METER) OR W(TACHO METER) |
1 | ||
| 83244-04040 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83244-04060 |
VZN170..DLX;RZN161,171..W CANADA SPEC |
1 | ||
| 83244-04080 |
VZN170..DLX CANADA SPEC & W(TACHO METER) OR W(TACHO METER) |
1 | ||
| 83883-04470 |
RZN161,171,VZN170..4FC W(TACHOMETER) |
1 | ||
| 83883-04140 |
RZN171,VZN170..4FC..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83883-04050 |
RZN161,171,VZN170..DLX |
1 | ||
| 83883-04530 |
RZN161,171,VZN170 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-04090 |
RZN161,171,VZN160,170..DLX W(TACHOMETER) |
1 | ||
| 83247-04070 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83861-04060 |
RZN161,171,VZN170 |
1 | ||
| 83247-04070 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83861-04060 |
RZN161,171,VZN170..DLX |
1 | ||
| 83861-04110 |
RZN171,VZN170..DLX CANADA SPEC & W(TACHOMETER) |
1 | ||
| 83247-04090 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(TACHOMETER) |
1 | ||
| 83861-04010 |
RZN161,171,VZN160,170..DLX W(TACHOMETER) |
1 | ||
| 83861-04740 |
RZN161,171,VZN170 |
1 | ||
| 83861-04850 |
VZN170 W(TACHOMETER) |
1 | ||
| 83861-04450 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| Common parts | ||||
| 90069-02052 | ||||
| 90069-02053 | ||||
| 90069-02055 | ||||
| 93568-55014 | ||||
ILLUST NO. 2 OF 3(9501-9706)
SPEEDMETER CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-35090 |
VZN160,170..R..DLX W(TACHO METER) |
1 | ||
| 83710-35080 |
VZN160,170..R..DLX |
1 | ||
| 83710-35100 |
VZN170..4FC..DLX |
1 | ||
| 83710-35110 |
VZN170..4FC..DLX W(TACHO METER) |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-35090 |
VZN160,170..R..DLX W(TACHO METER) |
1 | ||
| 83710-35080 |
VZN160,170..R..DLX |
1 | ||
| 83710-35100 |
VZN170..4FC..DLX |
1 | ||
| 83710-35110 |
VZN170..4FC..DLX W(TACHO METER) |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-35090 |
VZN160,170..R..DLX W(TACHO METER) |
1 | ||
| 83710-35080 |
VZN160,170..R..DLX |
1 | ||
| 83710-35100 |
VZN170..4FC..DLX |
1 | ||
| 83710-35110 |
VZN170..4FC..DLX W(TACHO METER) |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-35090 |
VZN160,170..R..DLX W(TACHO METER) |
1 | ||
| 83710-35080 |
VZN160,170..R..DLX |
1 | ||
| 83710-35100 |
VZN170..4FC..DLX |
1 | ||
| 83710-35110 |
VZN170..4FC..DLX W(TACHO METER) |
1 | ||
| Common parts | ||||
| 83791-35020 | ||||
| 83791-35050 | ||||
| 83791-35060 | ||||
| 83791-35070 | ||||
| 83791-35090 | ||||
| 90179-06161 | ||||
ILLUST NO. 1 OF 3(0009- )
W/O(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-04130 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(TACHO METER) |
1 | ||
| 83110-04080 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83220-04010 |
RZN161,171,VZN170..DLX |
1 | ||
| 83110-04110 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83110-04090 |
VZN170..DLX;RZN161,171..W CANADA SPEC |
1 | ||
| 83220-04030 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83220-04120 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83220-04140 |
RZN161,171,VZN170 |
1 | ||
| 83220-04130 |
RZN171,VZN170 CANADA SPEC & W(TACHO METER) |
1 | ||
| 83220-04040 |
RZN171,VZN170..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-04040 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83132-04050 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83132-04040 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*66 & *CRC) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83841-04060 |
RZN161,171,VZN170..DLX |
1 | ||
| 83841-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83841-04060 |
RZN161,171,VZN170 |
1 | ||
| 83841-04450 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83841-04850 |
VZN170 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-04050 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83138-04040 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*66 &*CRC) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83138-04040 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83852-04140 |
RZN161,171,VZN170..4FC W(TACHOMETER) |
1 | ||
| 83852-04840 |
VZN170..R W(TACHOMETER & VSC) |
1 | ||
| 83852-04140 |
RZN171,VZN170..4FC..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83852-04050 |
RZN161,171,VZN170 |
1 | ||
| 83852-04050 |
RZN161,171,VZN170..DLX |
1 | ||
| 83852-04140 |
RZN161,171,VZN170..4FC W(TACHOMETER) |
1 | ||
| 83852-04850 |
VZN170..4FC W(TACHOMETER & VSC) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-0W010 |
RZN161,171,VZN160,170 |
2 | ||
| 83145-0W010 |
RZN161,171,VZN170..DLX |
2 | ||
| 83145-0W010 |
RZN161,171,VZN170 |
2 | ||
| 83831-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83831-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-0W010 |
RZN161,171,VZN160,170 |
2 | ||
| 83145-0W010 |
RZN161,171,VZN170..DLX |
2 | ||
| 83145-0W010 |
RZN161,171,VZN170 |
2 | ||
| 83831-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83831-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-04130 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83145-04140 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(TACHO METER) |
1 | ||
| 83831-04160 |
RZN171,VZN170..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83145-04110 |
RZN161,171,VZN170 |
1 | ||
| 83145-04110 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83145-04110 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*66 & *CRC) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83145-04131 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83833-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83833-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83831-04160 |
RZN171,VZN170 CANADA SPEC & W(TACHO METER) |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-04150 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83145-04120 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83831-04450 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83831-04530 |
RZN161,171,VZN170 |
1 | ||
| 83145-04120 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*66 & *CRC) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83834-04100 |
RZN171,VZN170..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83159B - RELAY ASSY, METER | ||||
| 83159-22170 |
RZN161,171,VZN160,170 |
1 | ||
| 83159-22170 |
RZN161,171,VZN170 |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
RZN161,171,VZN170 |
1 | ||
| 83181-12020 |
RZN161,171,VZN170 |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
RZN161,171,VZN170 |
1 | ||
| 96711-24030 |
RZN161,171,VZN170 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-04080 |
VZN170..R..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83243-04040 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*66 & *CRC) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83243-04040 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83882-04450 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83243-04060 |
VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83882-04160 |
RZN171,VZN170..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83243-04080 |
VZN170..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83882-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83882-04050 |
RZN161,171,VZN170..DLX |
1 | ||
| 83882-04530 |
RZN161,171,VZN170 |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-04080 |
VZN160;RZN161,171,VZN170..4FC..DLX W(TACHO METER) |
1 | ||
| 83244-04080 |
VZN170..R..DLX CANADA SPEC & W(TACHO METER) OR W(TACHO METER) |
1 | ||
| 83244-04040 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83244-04060 |
VZN170..DLX;RZN161,171..W CANADA SPEC |
1 | ||
| 83244-04080 |
VZN170..DLX CANADA SPEC & W(TACHO METER) OR W(TACHO METER) |
1 | ||
| 83883-04470 |
RZN161,171,VZN170..4FC W(TACHOMETER) |
1 | ||
| 83883-04140 |
RZN171,VZN170..4FC..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83883-04050 |
RZN161,171,VZN170..DLX |
1 | ||
| 83883-04530 |
RZN161,171,VZN170 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-04090 |
RZN161,171,VZN160,170..DLX W(TACHOMETER) |
1 | ||
| 83247-04070 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83861-04060 |
RZN161,171,VZN170 |
1 | ||
| 83247-04070 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83861-04060 |
RZN161,171,VZN170..DLX |
1 | ||
| 83861-04110 |
RZN171,VZN170..DLX CANADA SPEC & W(TACHOMETER) |
1 | ||
| 83247-04090 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(TACHOMETER) |
1 | ||
| 83861-04010 |
RZN161,171,VZN160,170..DLX W(TACHOMETER) |
1 | ||
| 83861-04740 |
RZN161,171,VZN170 |
1 | ||
| 83861-04850 |
VZN170 W(TACHOMETER) |
1 | ||
| 83861-04450 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83271 - RELAY, METER CONTROL | ||||
| 83271-04020 |
RZN161,171,VZN170 |
1 | ||
| 83271-04020 |
RZN161,171,VZN170 |
1 | ||
| Common parts | ||||
| 90069-02054 | ||||
| 90069-02067 | ||||
| 93568-55016 | ||||
ILLUST NO. 1 OF 3(0009- )
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-04040 |
RZN161,171,VZN160,170 14V 3.4W,NO.3 |
1 | ||
| 84999-04040 |
RZN161,171,VZN170..DLX 14V 3.4W,NO.3 |
1 | ||
| 83109-04020 |
RZN161,171,VZN170 14V 3.4W(AMBER CAP) |
1 | ||
| 84999-04030 |
RZN161,171,VZN160,170 14V 2W,NO.2 |
1 | ||
| 84999-04020 |
RZN161,171,VZN160,170 14V 1.4W,NO.1 |
1 | ||
| 90011-11004 |
VZN170 12V 3.0W,W(TACHOMETER),NO.3 |
1 | ||
| 83120-0W020 |
RZN161,171,VZN170 14V 2.0W,W(SOCKET) |
1 | ||
| 83120-04050 |
RZN161,171,VZN170 12V 1.4W,W(SOCKET) |
1 | ||
| 90010-06003 |
VZN170..R 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-04050 |
VZN170..R 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 90010-06003 |
RZN161,171,VZN170 14V 3.0W,W(SOCKET) |
1 | ||
| 83109-04010 |
RZN161,171,VZN160,170 14V 3.4W(GREEN CAP),NO.4 |
1 | ||
| 83109-04020 |
RZN161,171;VZN170..4FC 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83109-04020 |
VZN170..R 14V 3.4W(AMBER CAP),NO.4 |
1 | ||
| 83120-04090 |
VZN170..R 14V 1.12W |
4 | ||
| 83120-0W020 |
VZN170..R 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 90010-06003 |
RZN161,171;VZN170..4FC 14V 3.0W,W(SOCKET),NO.5 |
1 | ||
| 83120-0W020 |
RZN161,171;VZN170..4FC 14V 2.0W,W(SOCKET),NO.2 |
1 | ||
| 83120-04050 |
RZN161,171;VZN170..4FC 12V 1.4W,W(SOCKET),NO.1 |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET) |
1 | ||
| 83120-04070 |
RZN161,171,VZN170 14V 3.4W,W(SOCKET),NO.2 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-04130 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(TACHO METER) |
1 | ||
| 83110-04080 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83220-04010 |
RZN161,171,VZN170..DLX |
1 | ||
| 83110-04110 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83110-04090 |
VZN170..DLX;RZN161,171..W CANADA SPEC |
1 | ||
| 83220-04030 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83220-04120 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83220-04140 |
RZN161,171,VZN170 |
1 | ||
| 83220-04130 |
RZN171,VZN170 CANADA SPEC & W(TACHO METER) |
1 | ||
| 83220-04040 |
RZN171,VZN170..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-04040 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83132-04050 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83132-04040 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*66 & *CRC) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83841-04060 |
RZN161,171,VZN170..DLX |
1 | ||
| 83841-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83841-04060 |
RZN161,171,VZN170 |
1 | ||
| 83841-04450 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83841-04850 |
VZN170 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-04050 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83138-04040 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*66 &*CRC) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83138-04040 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83852-04140 |
RZN161,171,VZN170..4FC W(TACHOMETER) |
1 | ||
| 83852-04840 |
VZN170..R W(TACHOMETER & VSC) |
1 | ||
| 83852-04140 |
RZN171,VZN170..4FC..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83852-04050 |
RZN161,171,VZN170 |
1 | ||
| 83852-04050 |
RZN161,171,VZN170..DLX |
1 | ||
| 83852-04140 |
RZN161,171,VZN170..4FC W(TACHOMETER) |
1 | ||
| 83852-04850 |
VZN170..4FC W(TACHOMETER & VSC) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-0W010 |
RZN161,171,VZN160,170 |
2 | ||
| 83145-0W010 |
RZN161,171,VZN170..DLX |
2 | ||
| 83145-0W010 |
RZN161,171,VZN170 |
2 | ||
| 83831-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83831-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-04130 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83145-04140 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(TACHO METER) |
1 | ||
| 83831-04160 |
RZN171,VZN170..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83145-04110 |
RZN161,171,VZN170 |
1 | ||
| 83145-04110 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83145-04110 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*66 & *CRC) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83145-04131 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83833-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83833-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83831-04160 |
RZN171,VZN170 CANADA SPEC & W(TACHO METER) |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-04150 |
RZN161,171,VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83145-04120 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83831-04450 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83831-04530 |
RZN161,171,VZN170 |
1 | ||
| 83145-04120 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*66 & *CRC) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83834-04100 |
RZN171,VZN170..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83832-04100 |
RZN161,171,VZN170..4FC |
1 | ||
| 83832-04100 |
RZN161,171,VZN170..4FC |
1 | ||
| 83159B - RELAY ASSY, METER | ||||
| 83159-22170 |
RZN161,171,VZN160,170 |
1 | ||
| 83159-22170 |
RZN161,171,VZN170 |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
RZN161,171,VZN170 |
1 | ||
| 83181-12020 |
RZN161,171,VZN170 |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
RZN161,171,VZN170 |
1 | ||
| 96711-24030 |
RZN161,171,VZN170 |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-04040 |
VZN160,170 |
1 | ||
| 83881-04160 |
RZN171,VZN170 CANADA SPEC |
1 | ||
| 83881-04450 |
RZN161,171,VZN170 |
1 | ||
| 83881-04100 |
RZN161,171,VZN170 |
1 | ||
| 83881-04490 |
RZN171,VZN170 CANADA SPEC |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-04080 |
VZN170..R..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83243-04040 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*66 & *CRC) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83243-04040 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83882-04450 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83243-04060 |
VZN160,170..DLX W(TACHO METER) |
1 | ||
| 83882-04160 |
RZN171,VZN170..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83243-04080 |
VZN170..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83882-04100 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83882-04050 |
RZN161,171,VZN170..DLX |
1 | ||
| 83882-04530 |
RZN161,171,VZN170 |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-04080 |
VZN160;RZN161,171,VZN170..4FC..DLX W(TACHO METER) |
1 | ||
| 83244-04080 |
VZN170..R..DLX CANADA SPEC & W(TACHO METER) OR W(TACHO METER) |
1 | ||
| 83244-04040 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83244-04060 |
VZN170..DLX;RZN161,171..W CANADA SPEC |
1 | ||
| 83244-04080 |
VZN170..DLX CANADA SPEC & W(TACHO METER) OR W(TACHO METER) |
1 | ||
| 83883-04470 |
RZN161,171,VZN170..4FC W(TACHOMETER) |
1 | ||
| 83883-04140 |
RZN171,VZN170..4FC..DLX CANADA SPEC & W(TACHO METER) |
1 | ||
| 83883-04050 |
RZN161,171,VZN170..DLX |
1 | ||
| 83883-04530 |
RZN161,171,VZN170 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-04090 |
RZN161,171,VZN160,170..DLX W(TACHOMETER) |
1 | ||
| 83247-04070 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(*66) OR CANADA SPEC & W(*CRC) |
1 | ||
| 83861-04060 |
RZN161,171,VZN170 |
1 | ||
| 83247-04070 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 83861-04060 |
RZN161,171,VZN170..DLX |
1 | ||
| 83861-04110 |
RZN171,VZN170..DLX CANADA SPEC & W(TACHOMETER) |
1 | ||
| 83247-04090 |
VZN170..DLX;RZN161,171..W CANADA SPEC & W(TACHOMETER) |
1 | ||
| 83861-04010 |
RZN161,171,VZN160,170..DLX W(TACHOMETER) |
1 | ||
| 83861-04740 |
RZN161,171,VZN170 |
1 | ||
| 83861-04850 |
VZN170 W(TACHOMETER) |
1 | ||
| 83861-04450 |
RZN161,171,VZN170 W(TACHOMETER) |
1 | ||
| 83271 - RELAY, METER CONTROL | ||||
| 83271-04020 |
RZN161,171,VZN170 |
1 | ||
| 83271-04020 |
RZN161,171,VZN170 |
1 | ||
| 83293 - COMPUTER, TOTAL COUNTER MODULE | ||||
| 83293-04020 |
VZN170 W(TACHOMETER) |
1 | ||
| 83293-04040 |
VZN170 CANADA SPEC & W(TACHOMETER) |
1 | ||
| 83293-04020 |
VZN170 W(TACHOMETER) |
1 | ||
| 83293-04040 |
VZN170..DLX CANADA SPEC & W(TACHOMETER) |
1 | ||
| Common parts | ||||
| 90069-02054 | ||||
| 90069-02065 | ||||
| 93568-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
